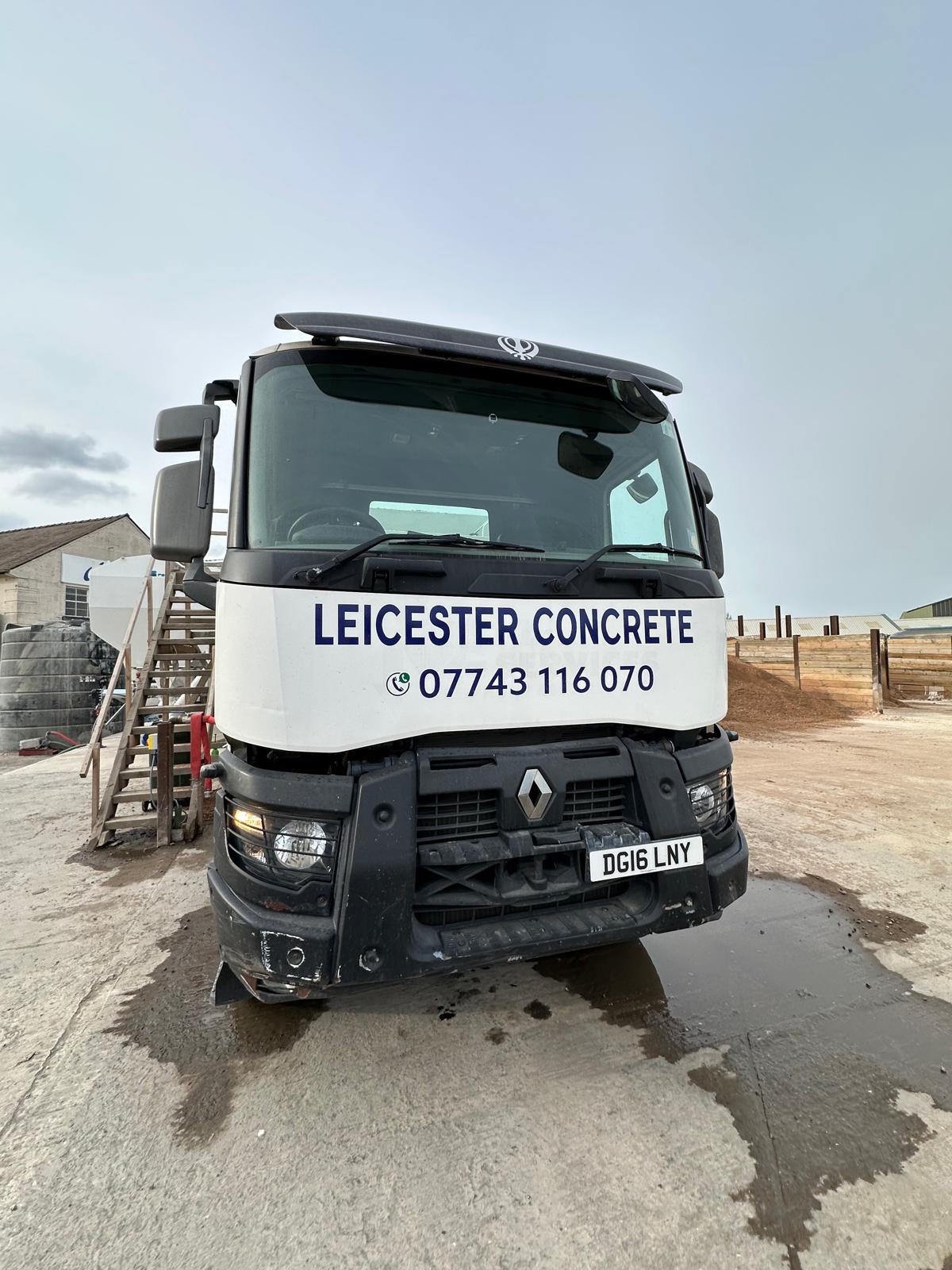

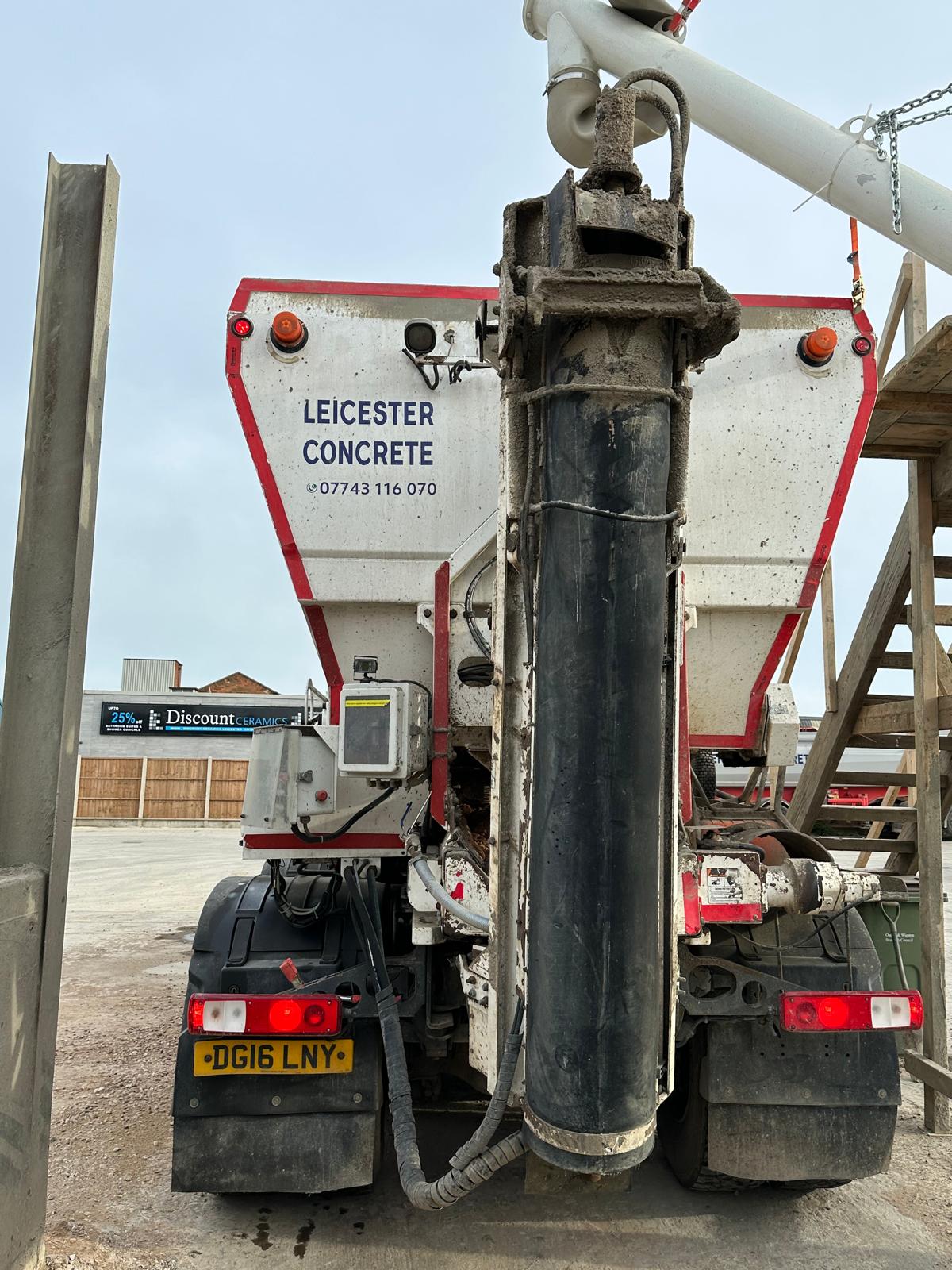

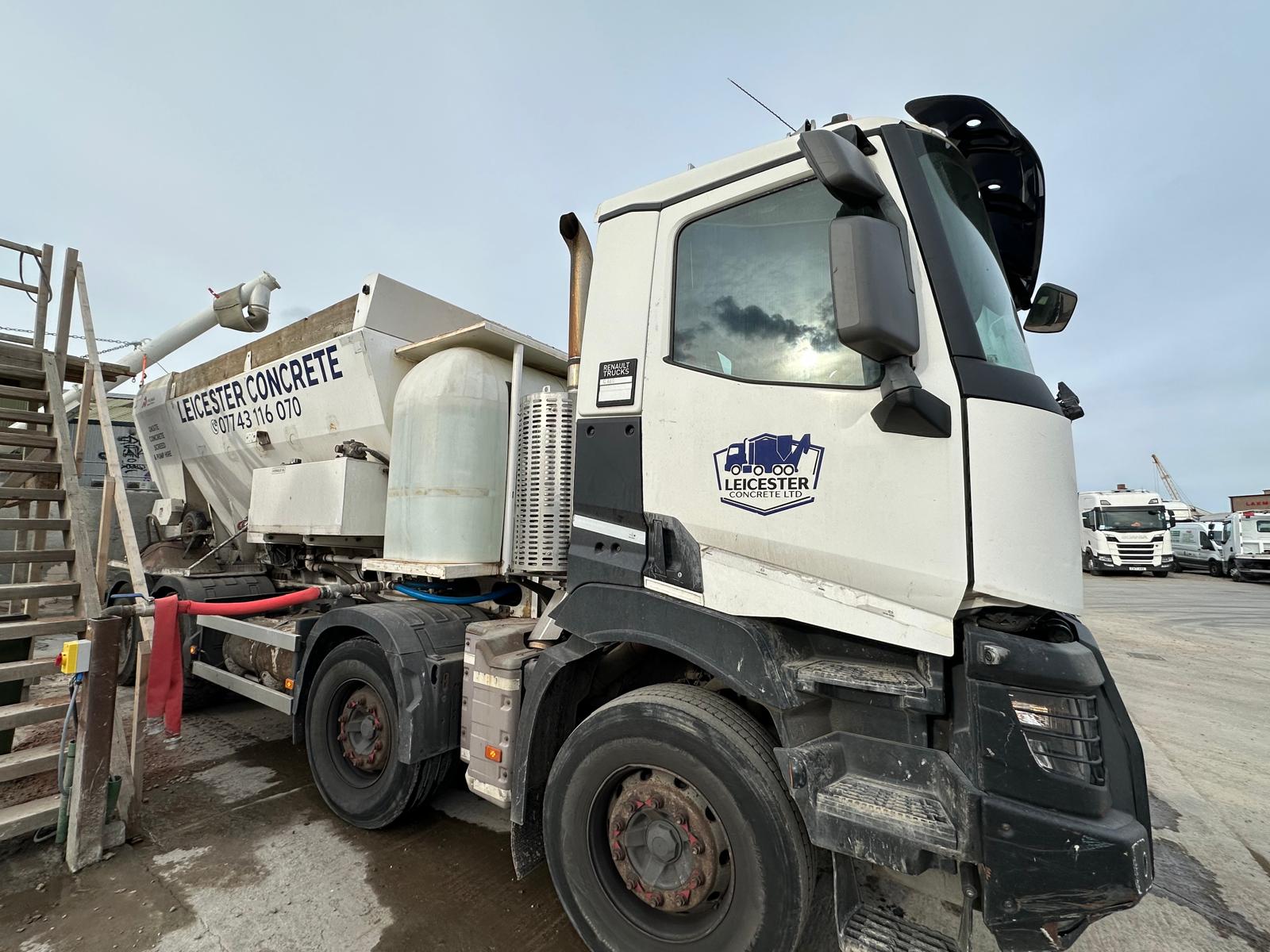

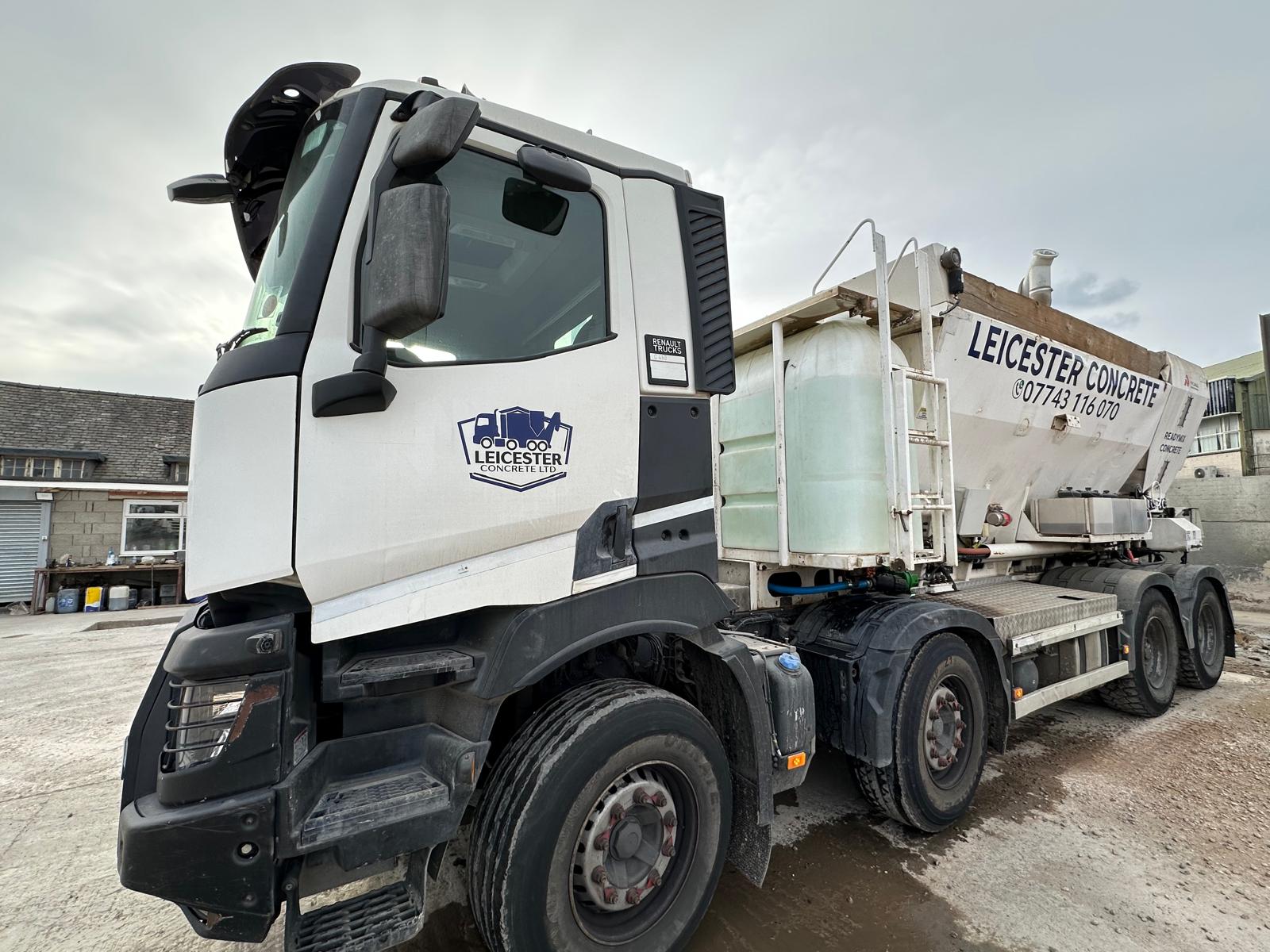

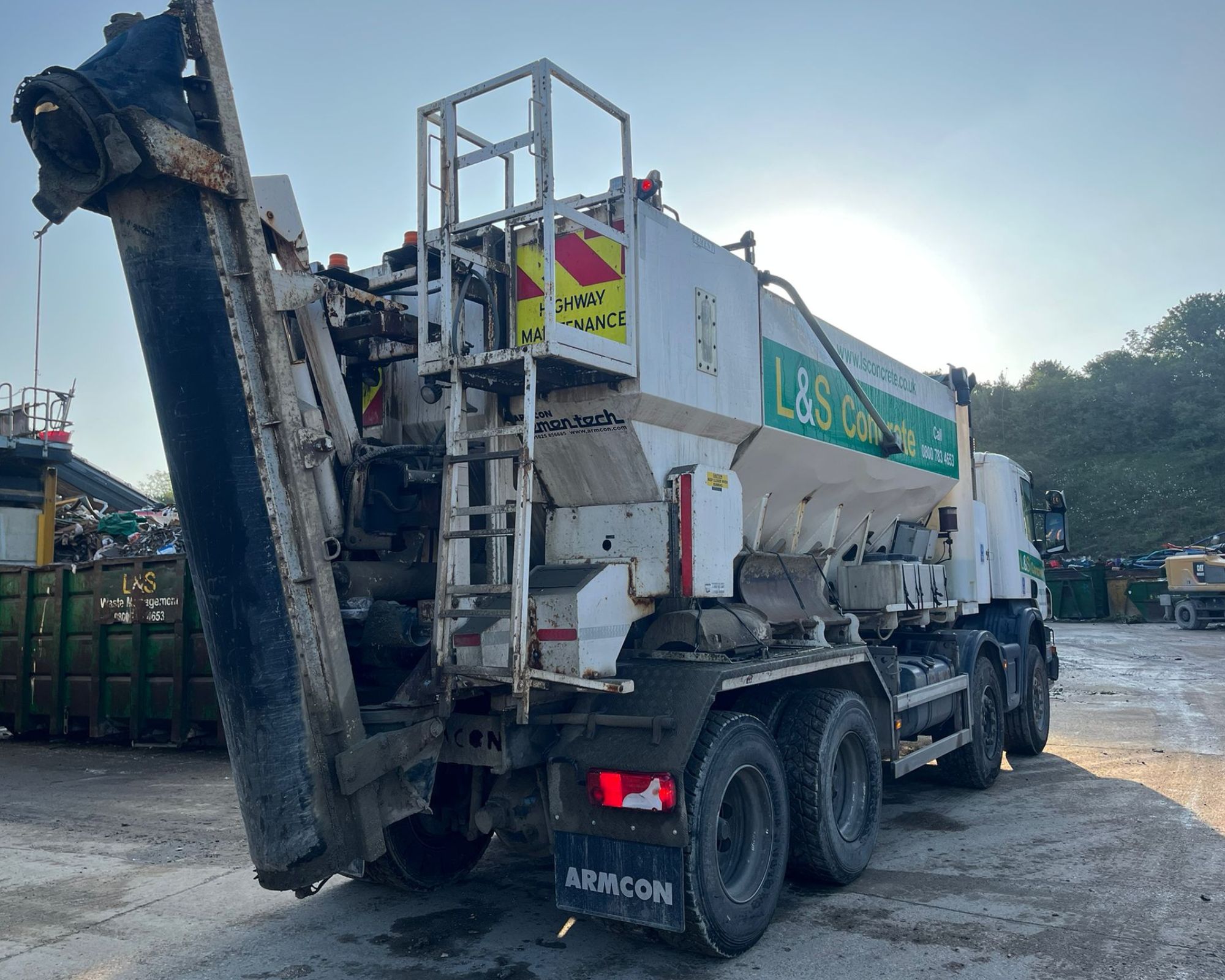

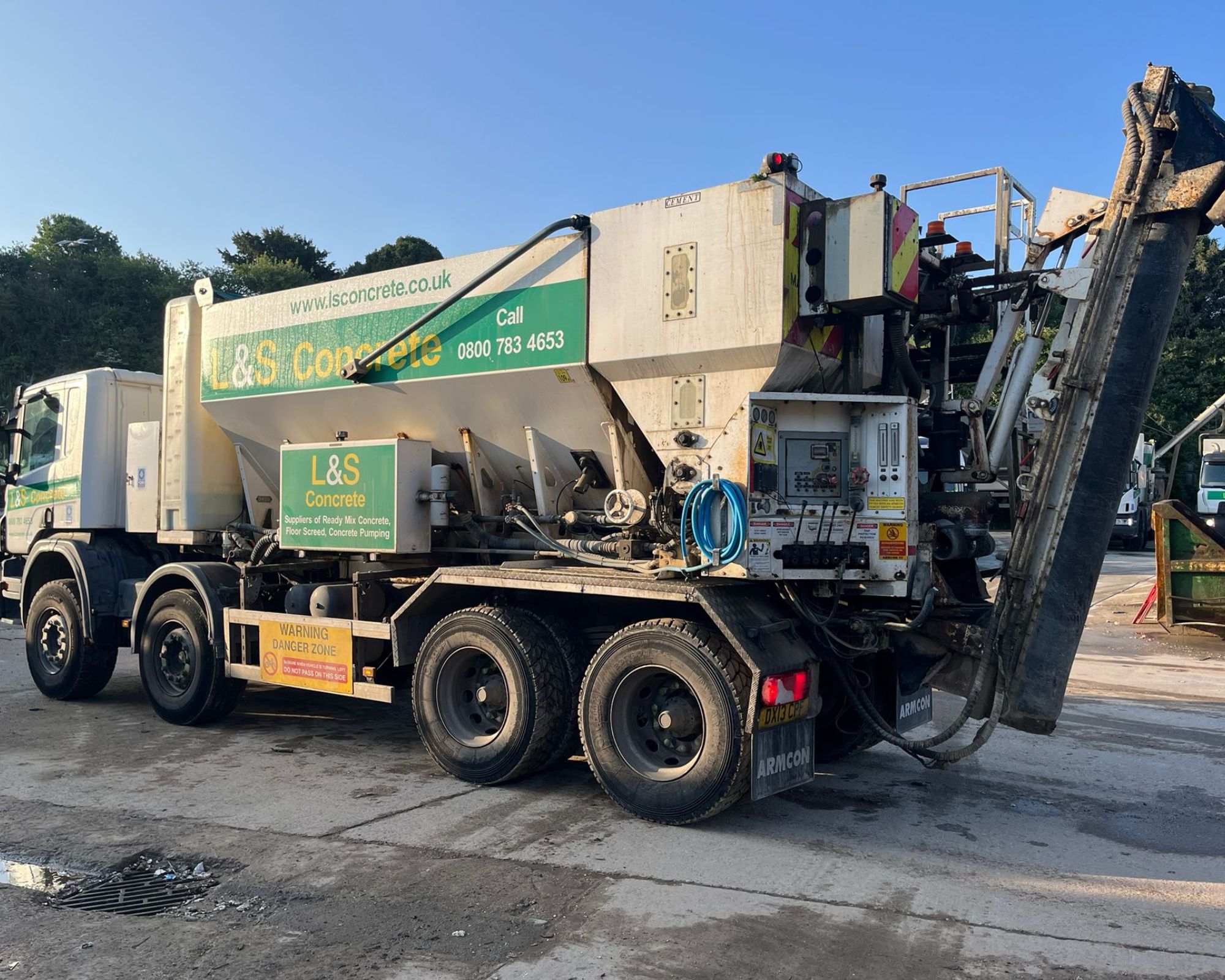

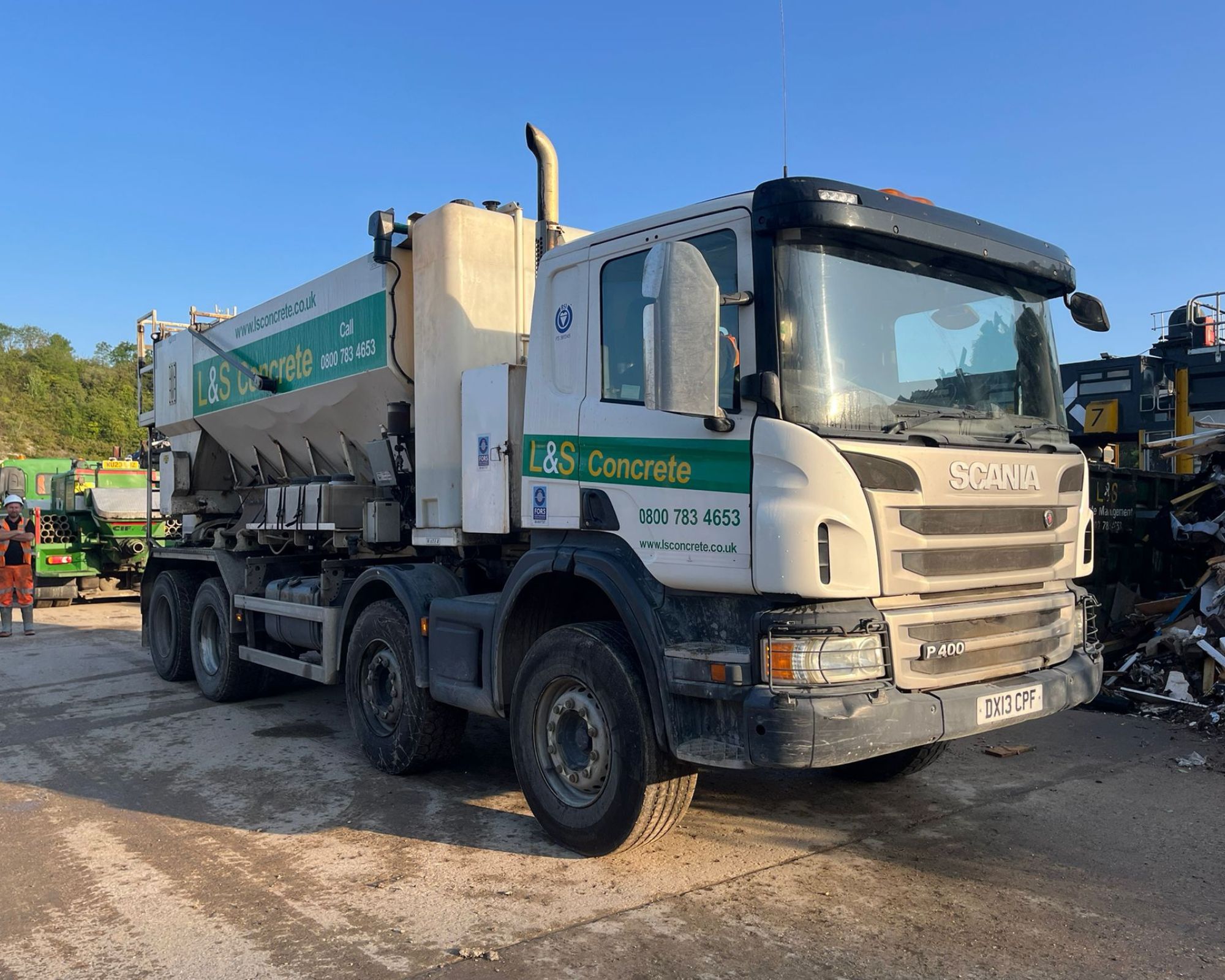

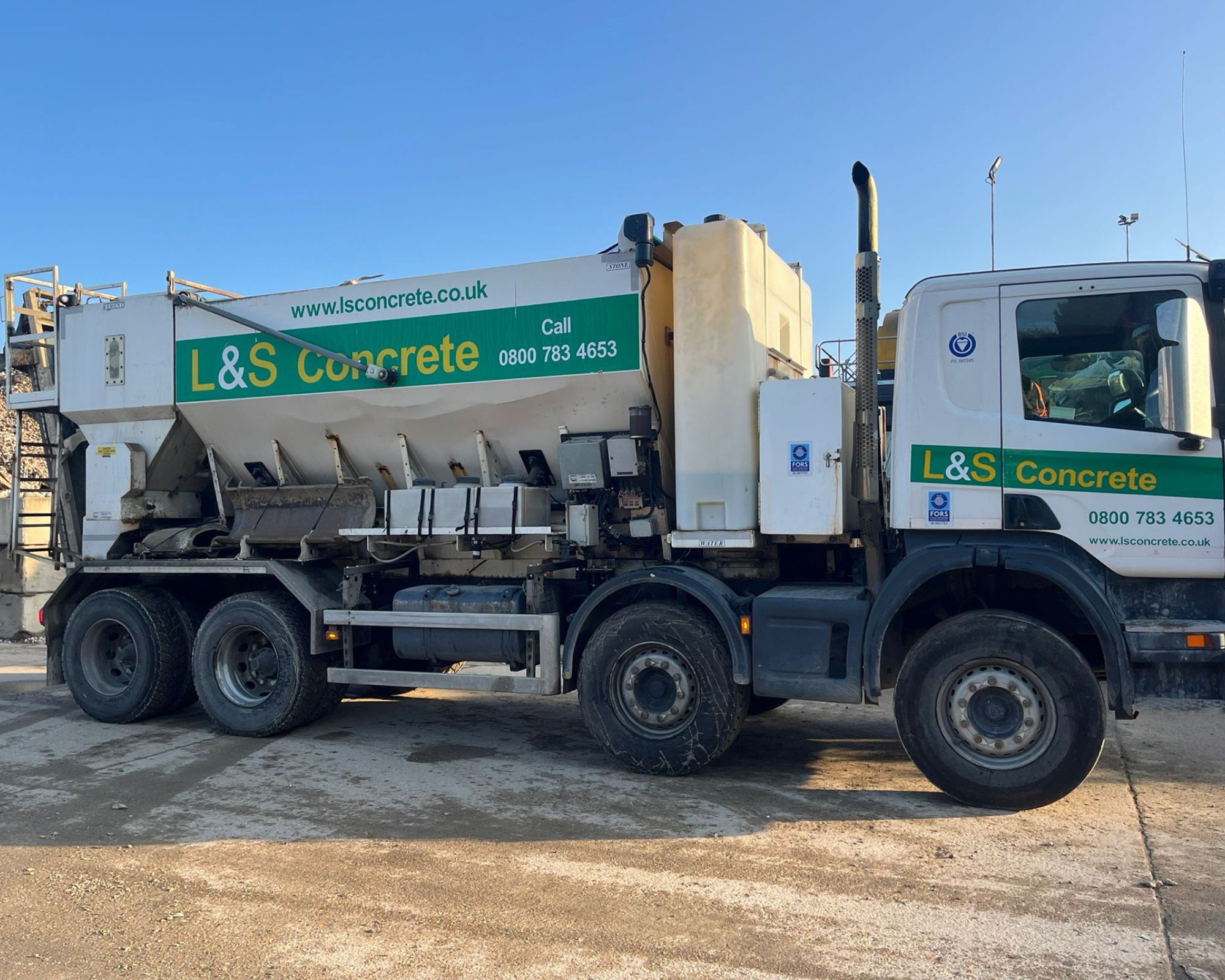

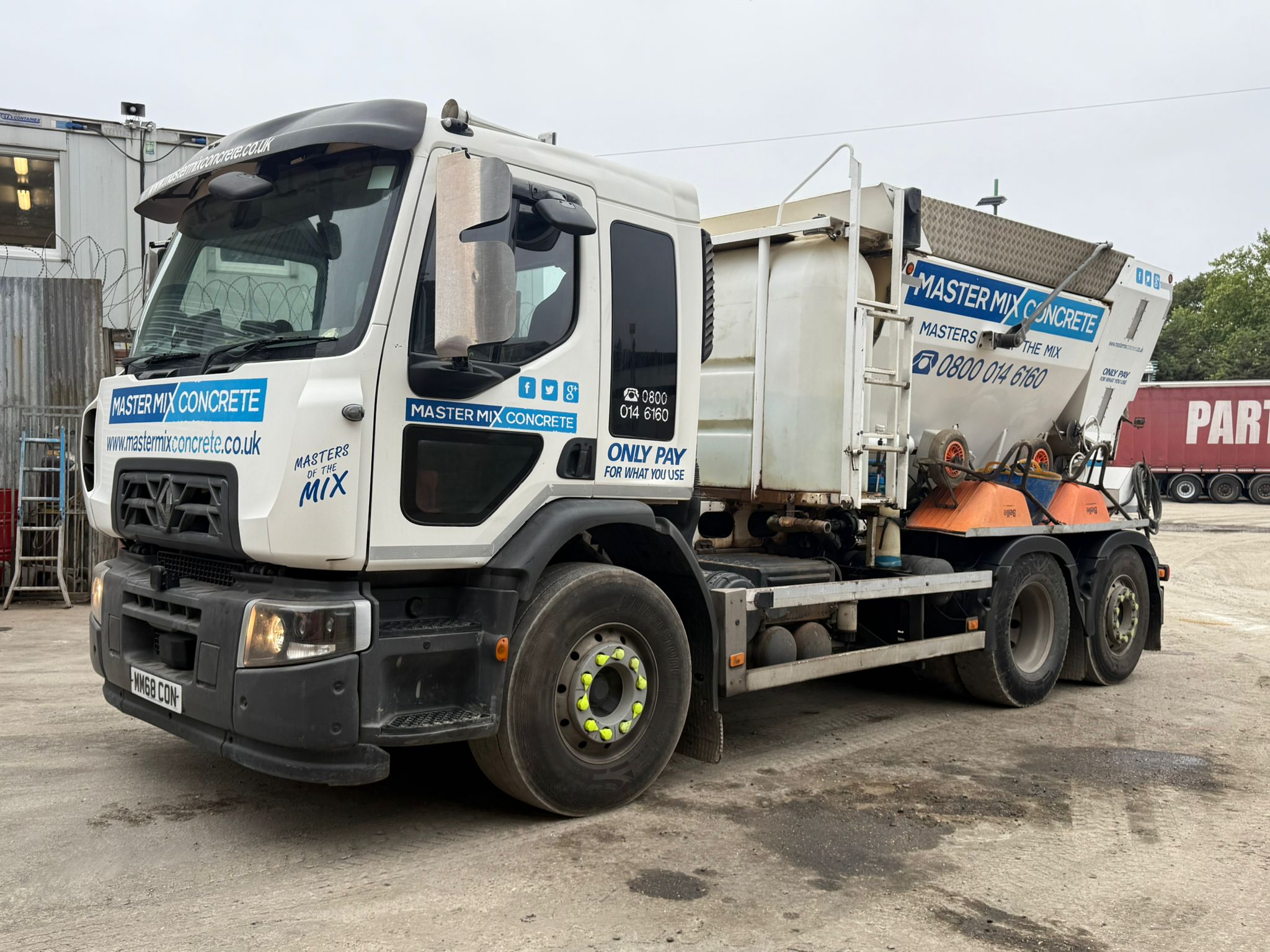

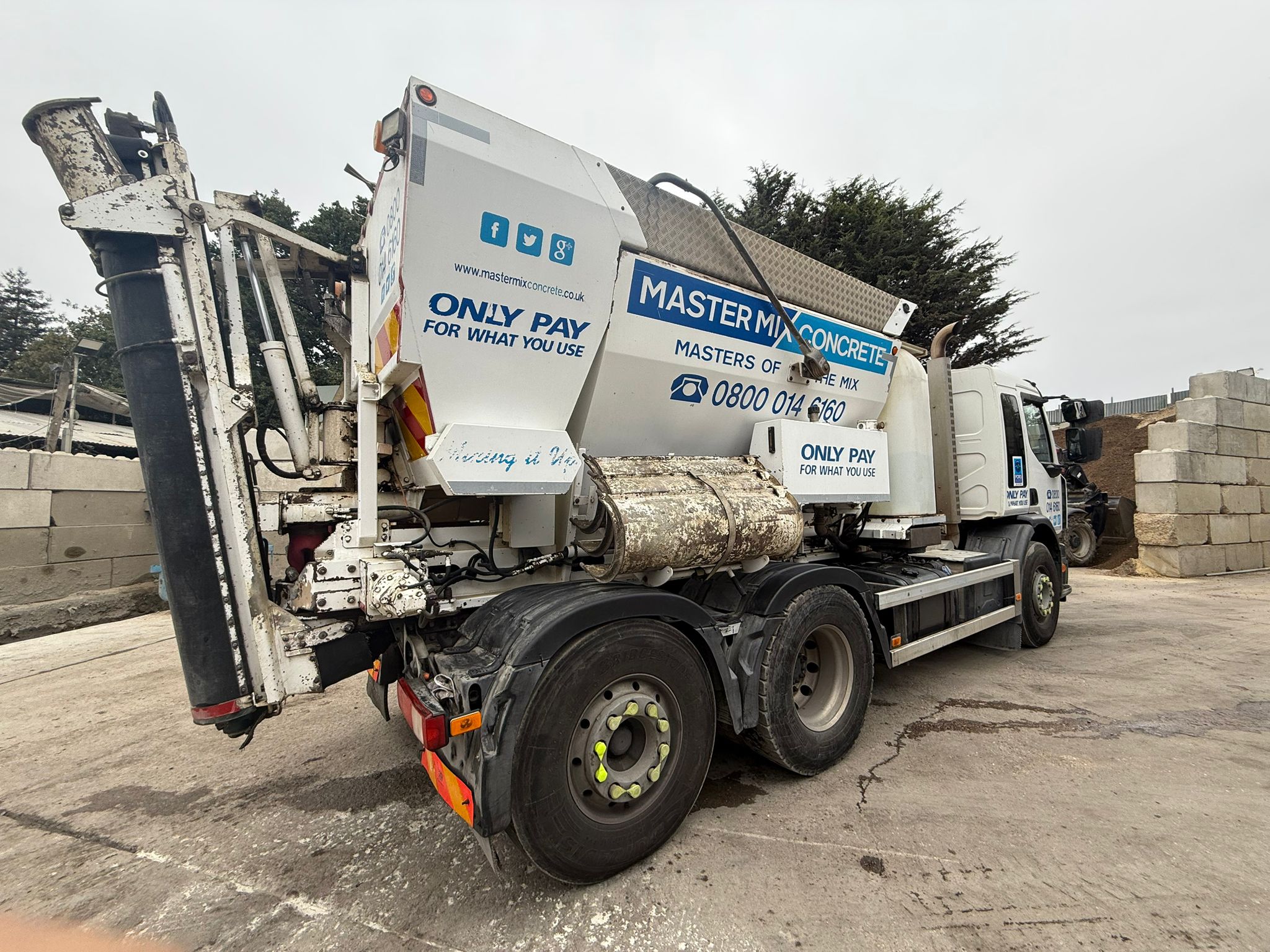

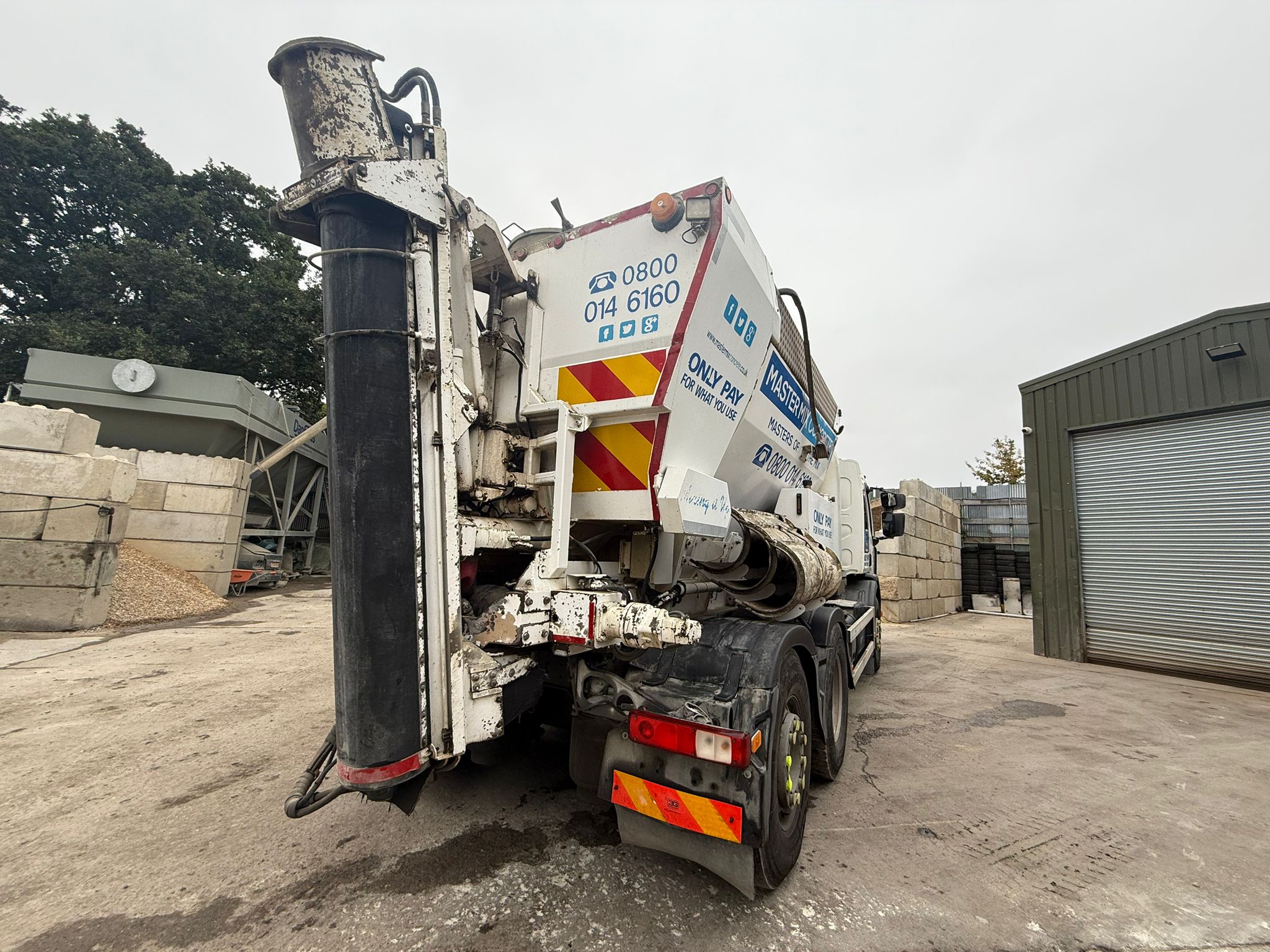

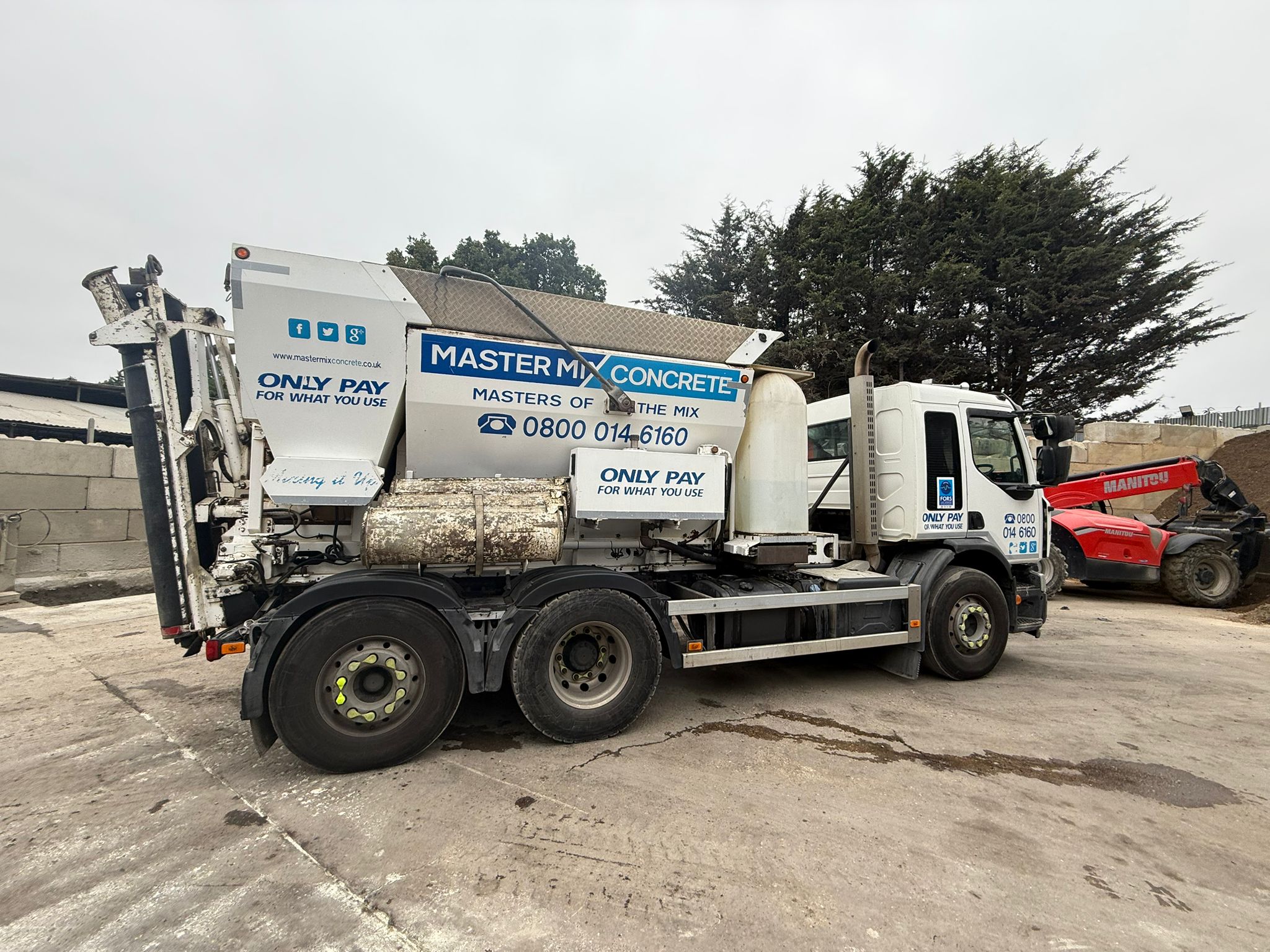

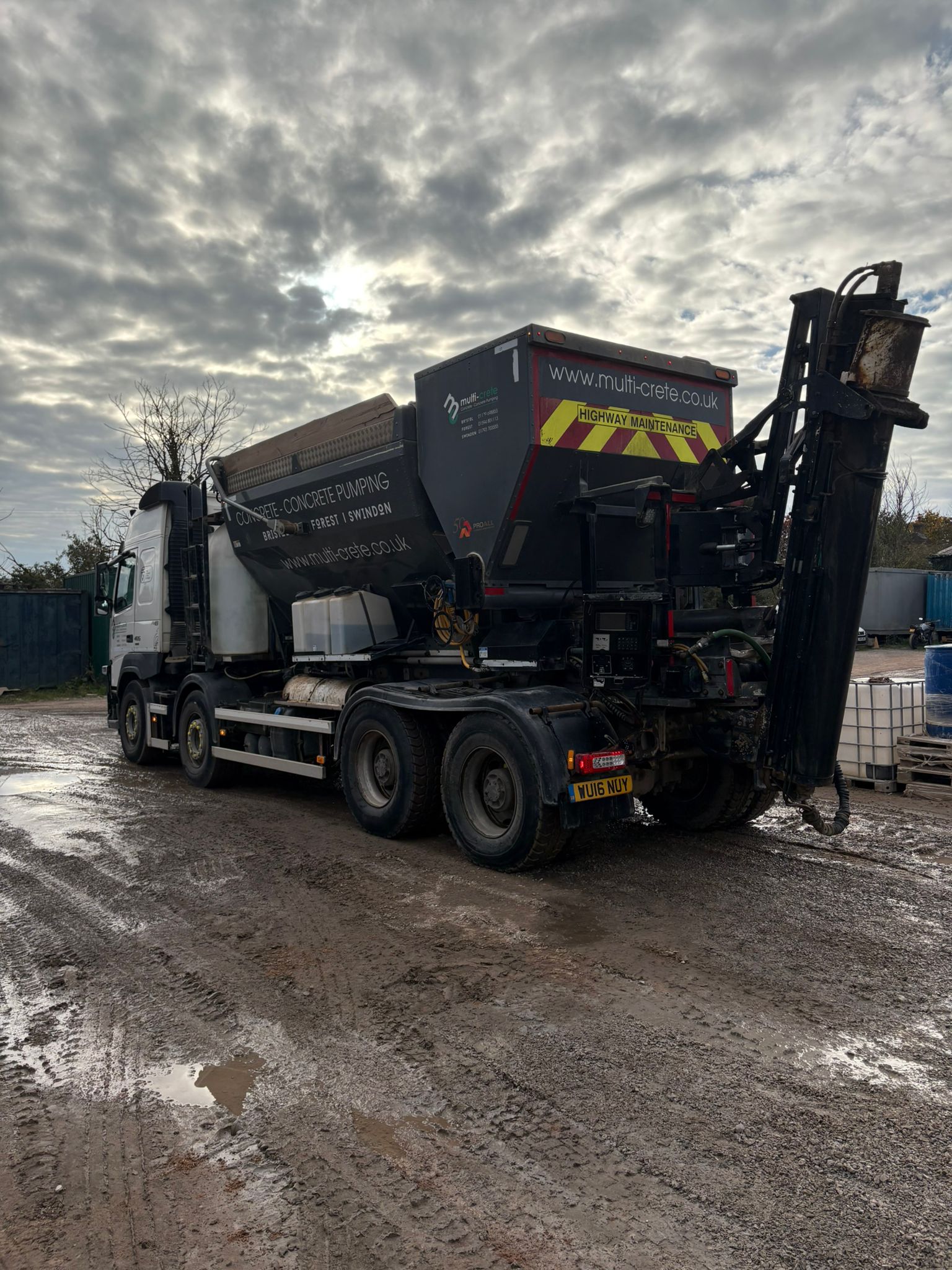

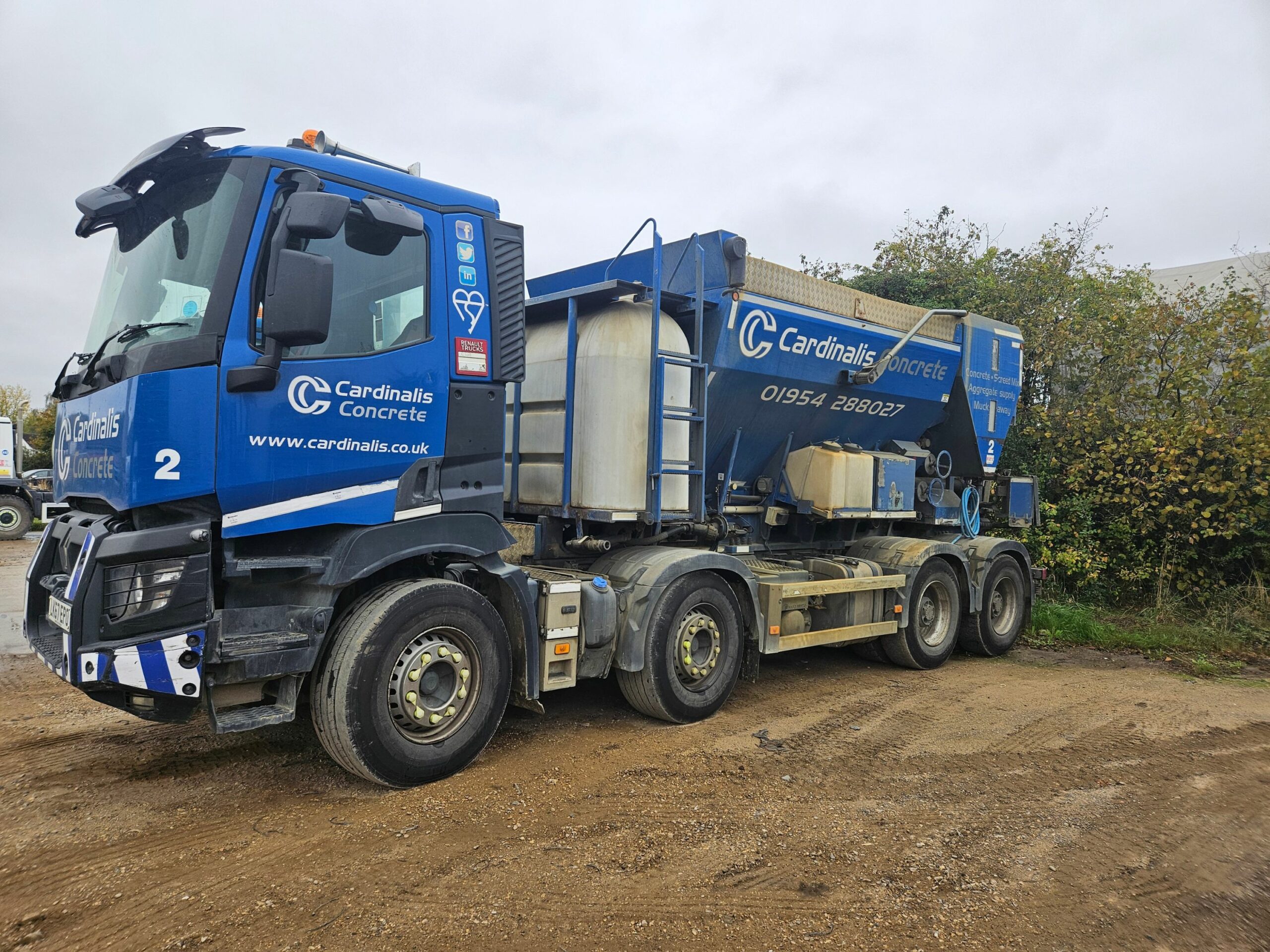

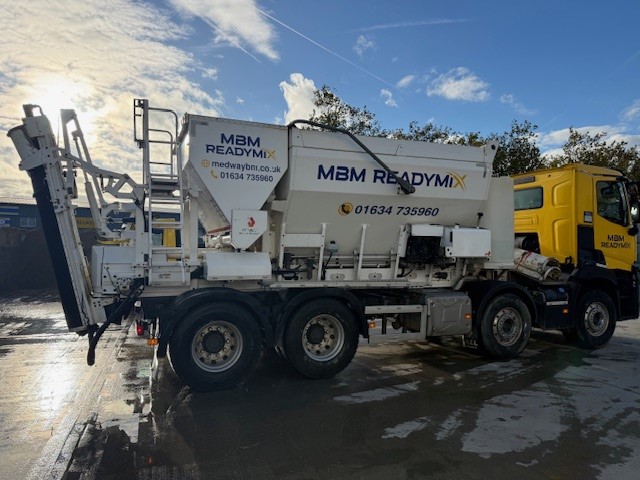

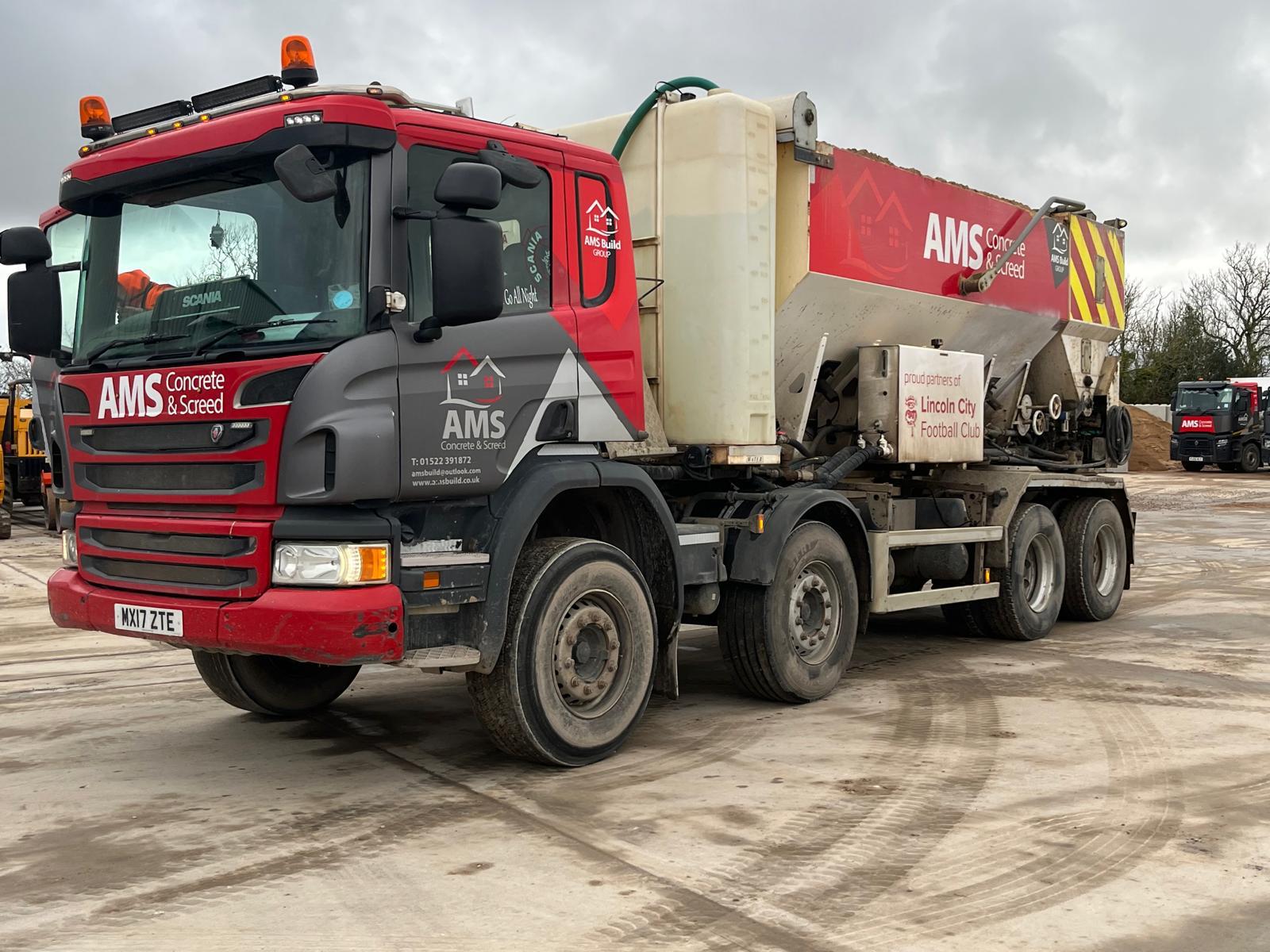

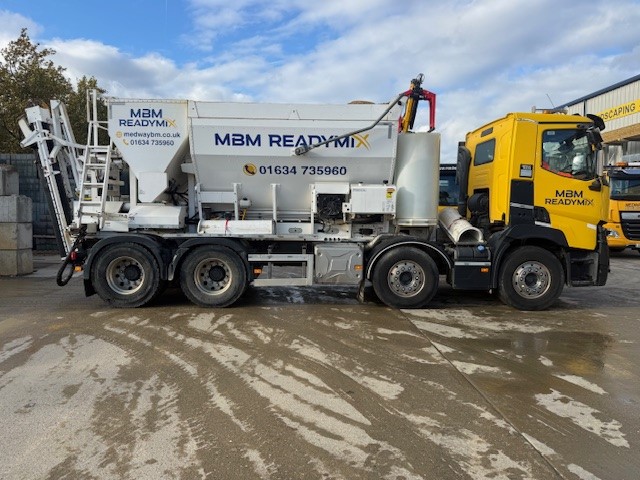

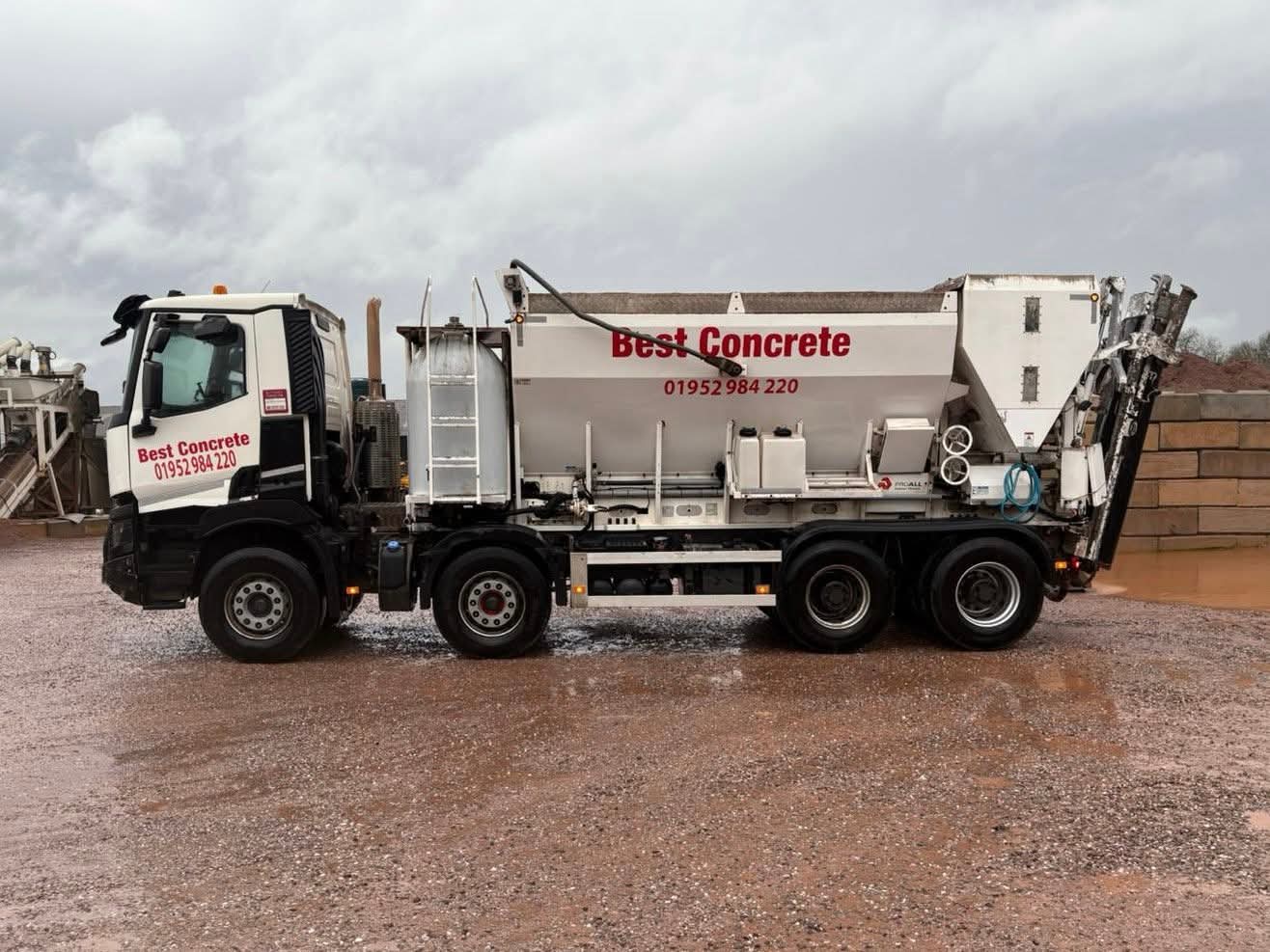

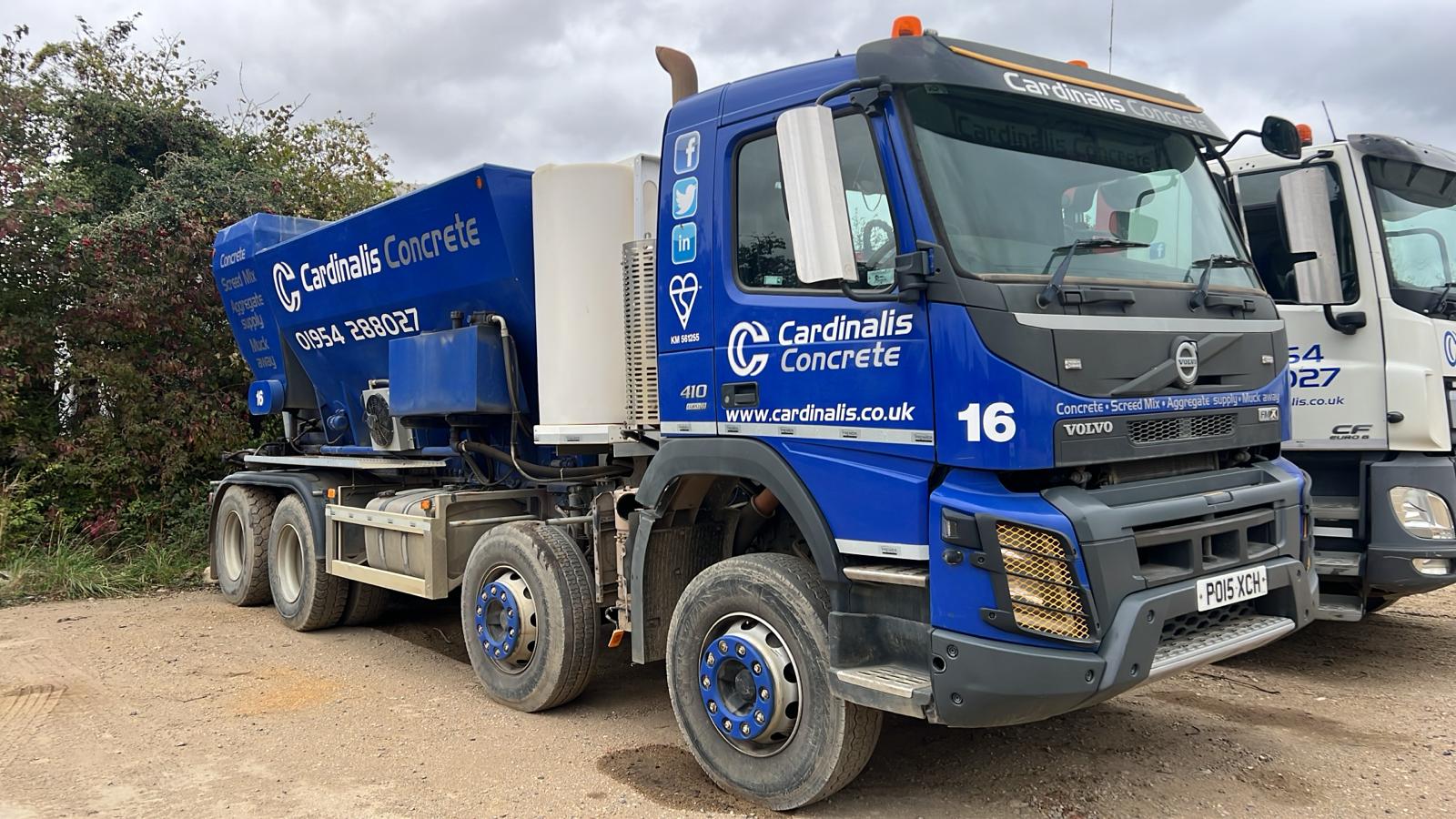

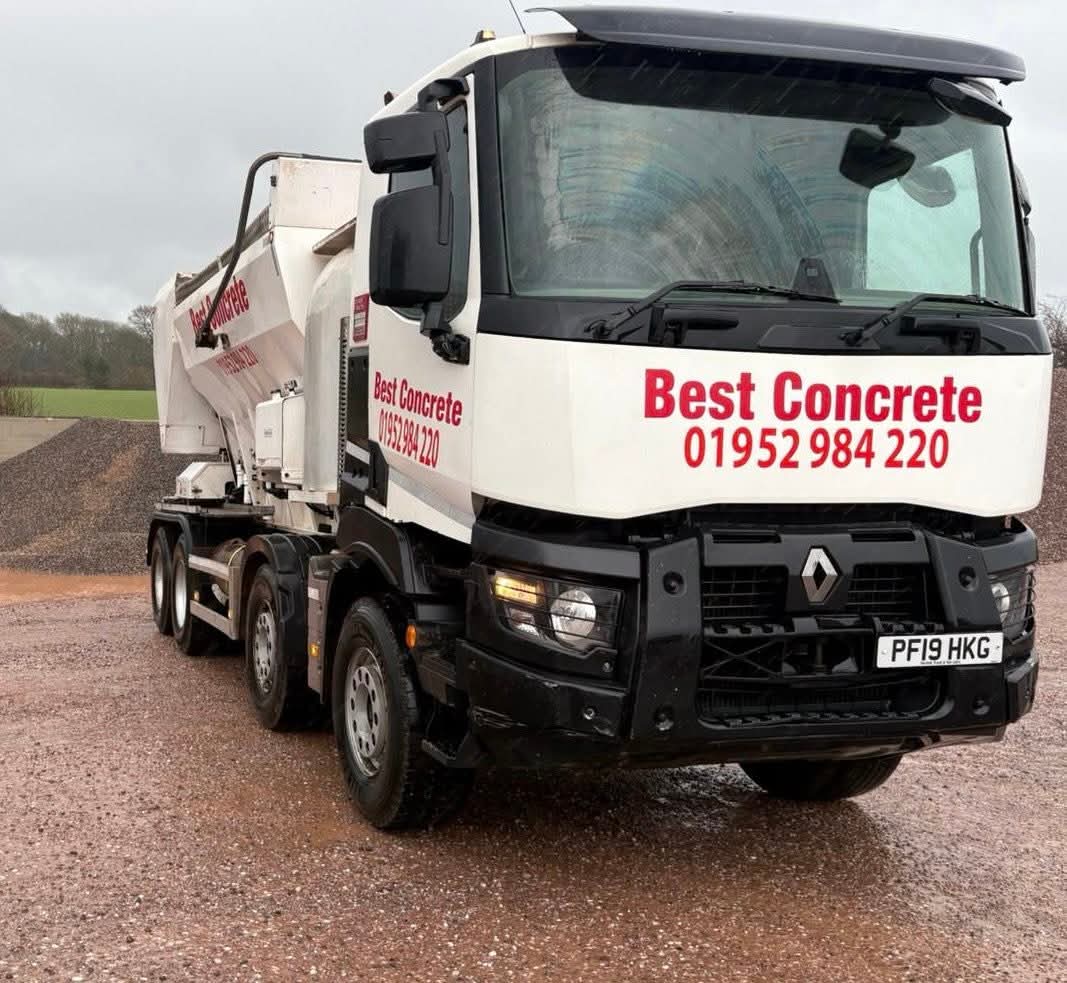

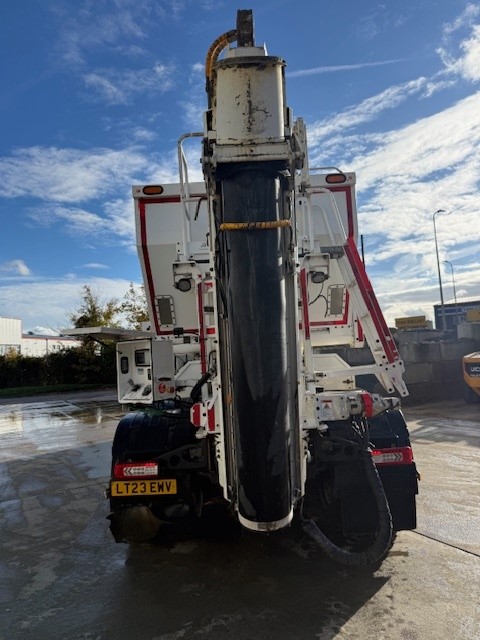

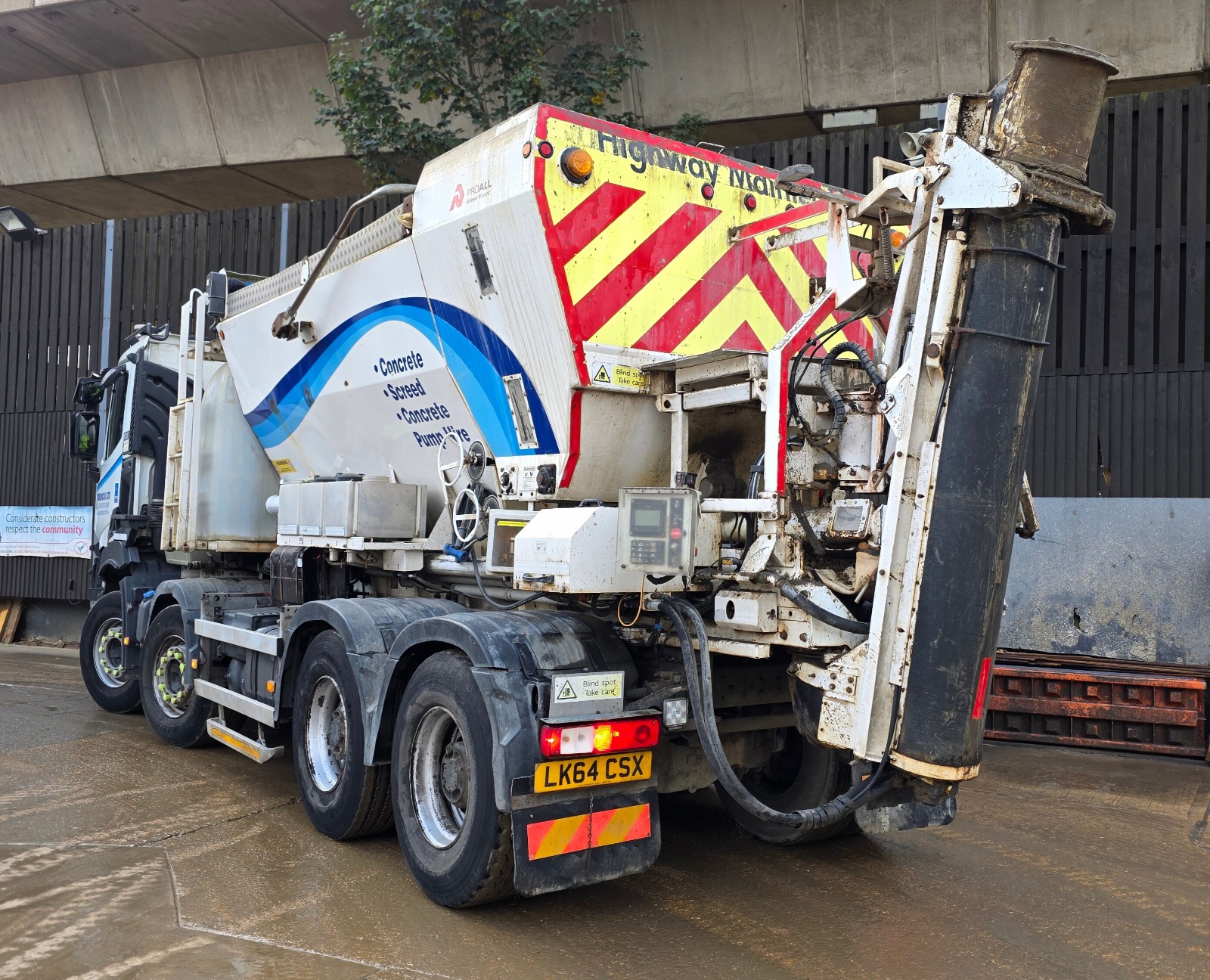

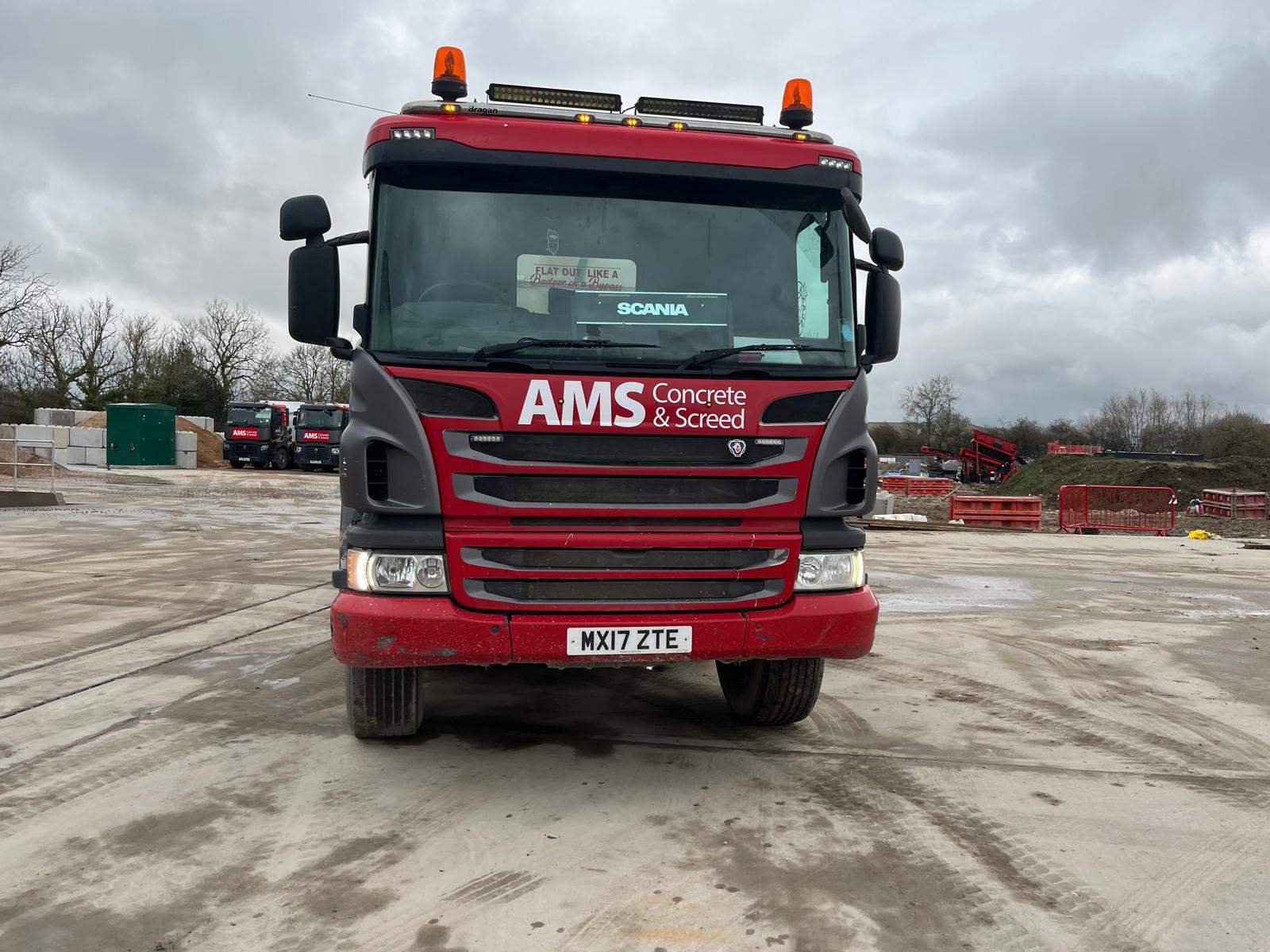

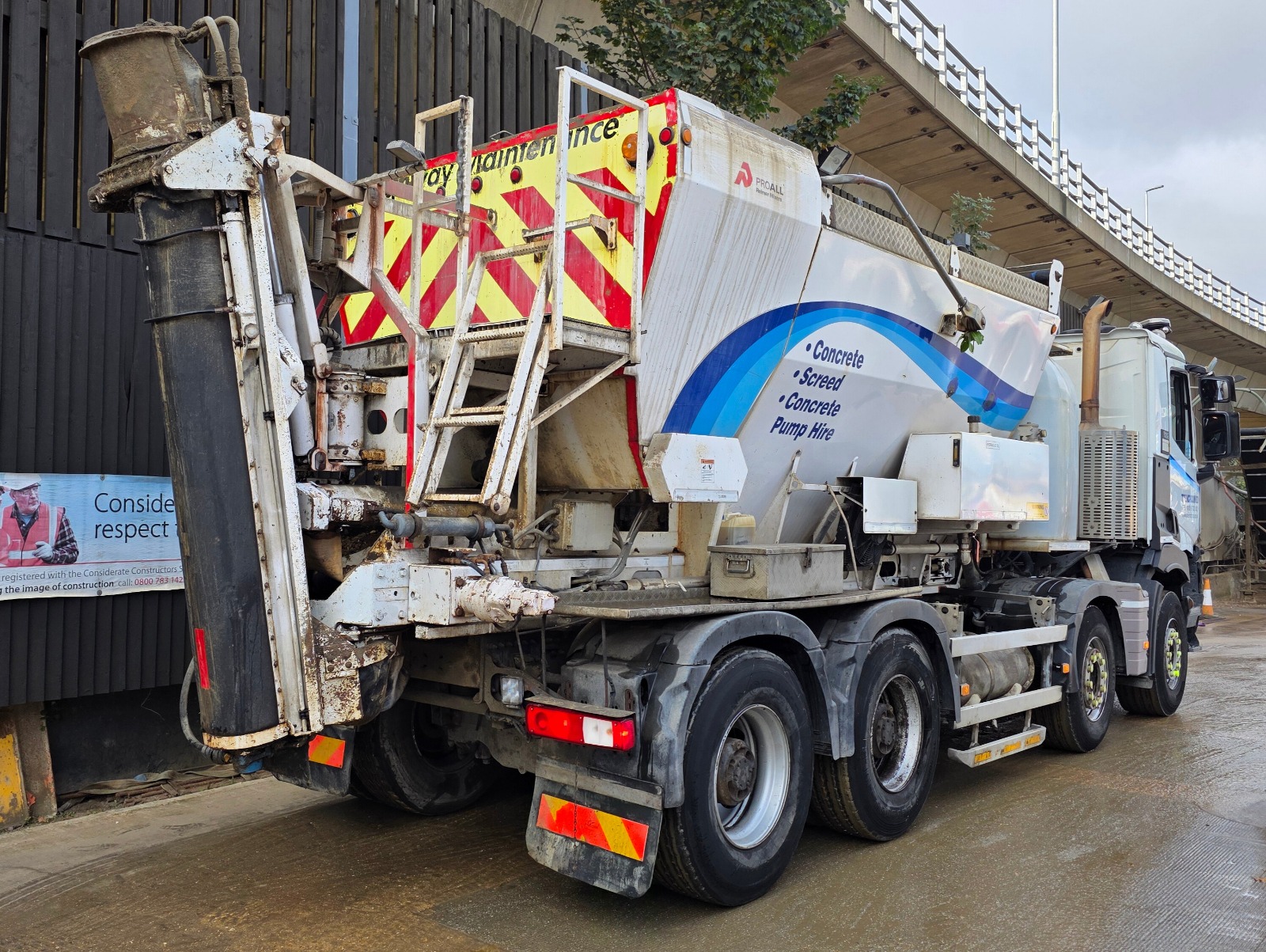

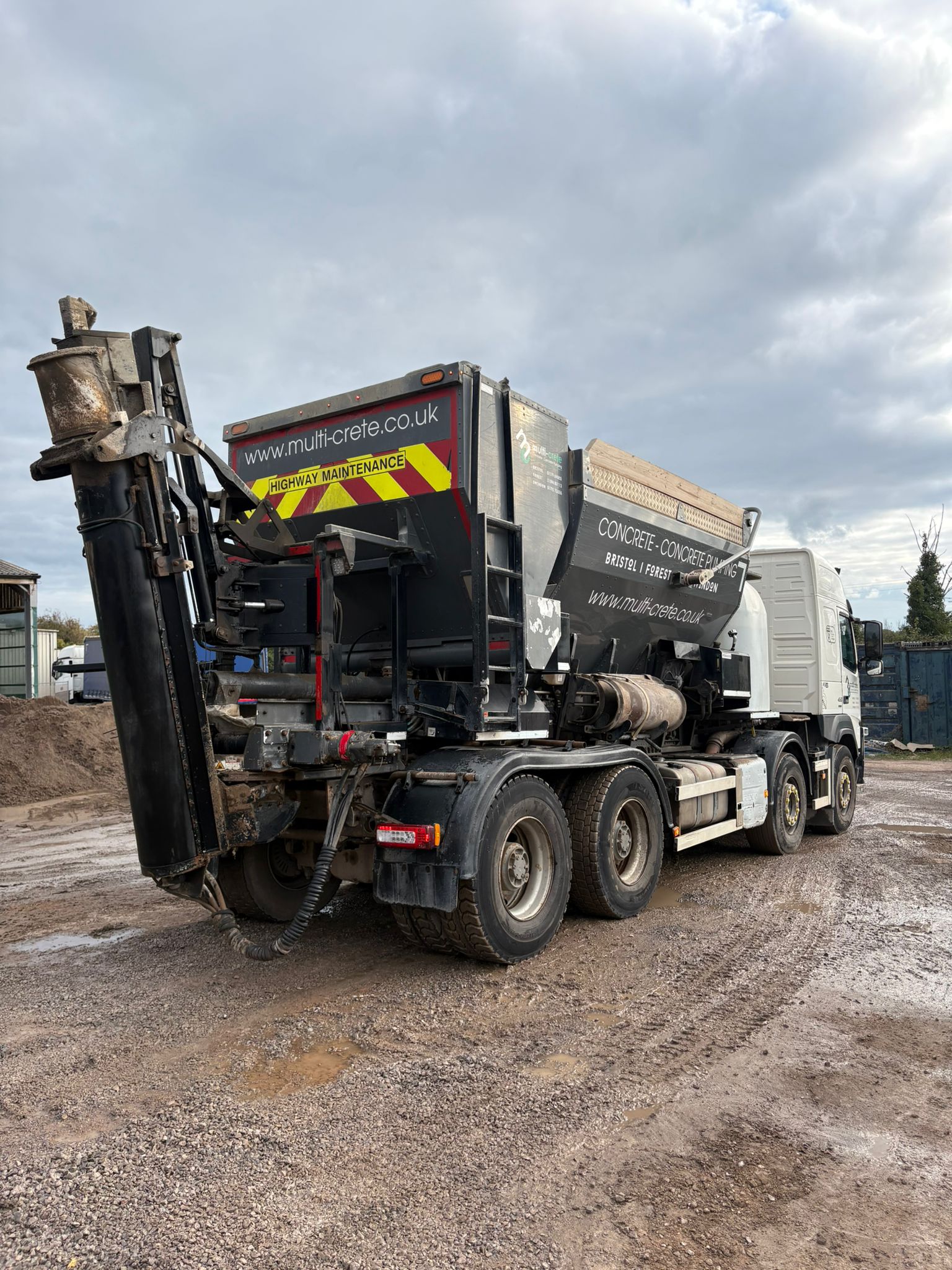

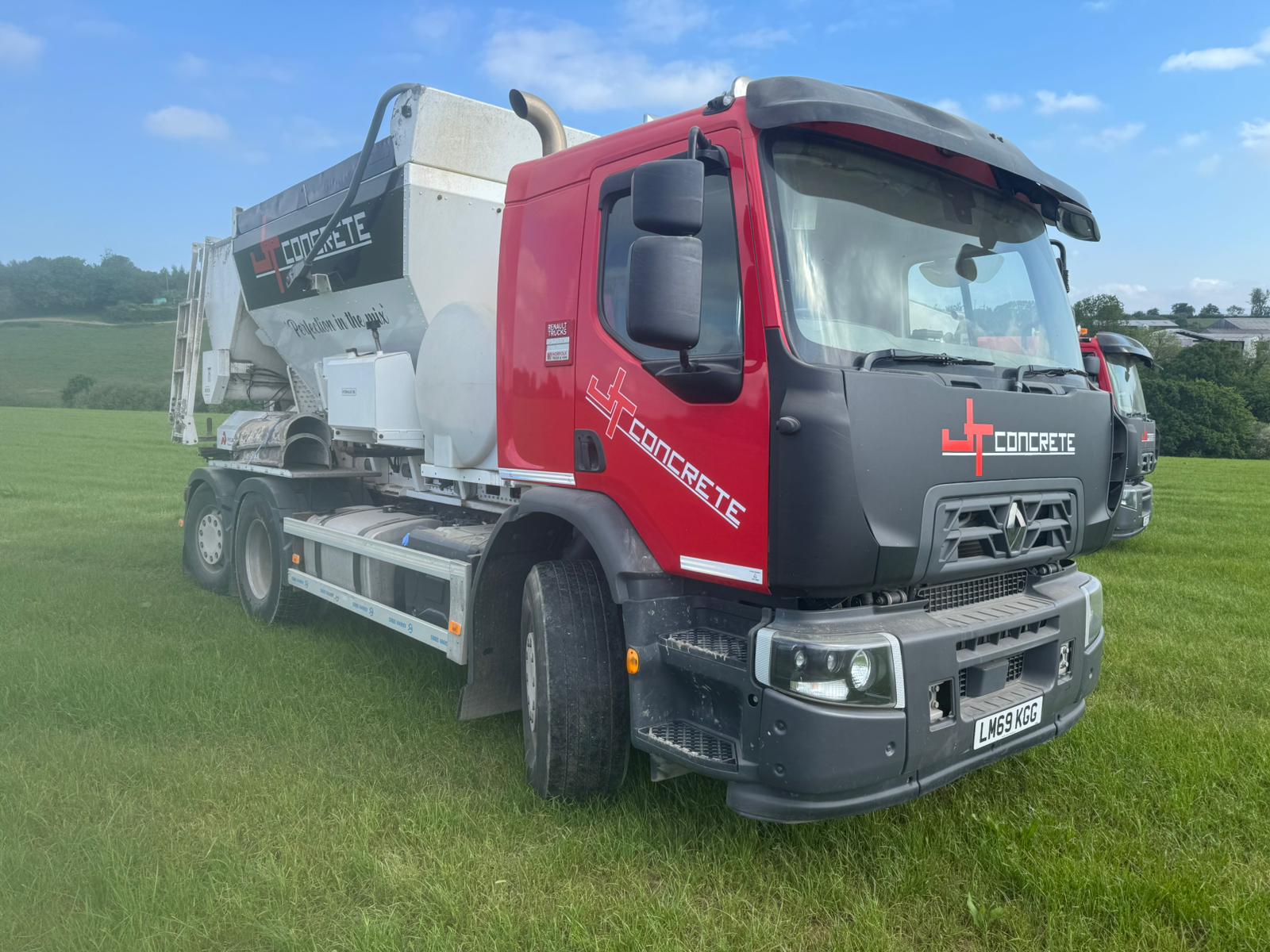

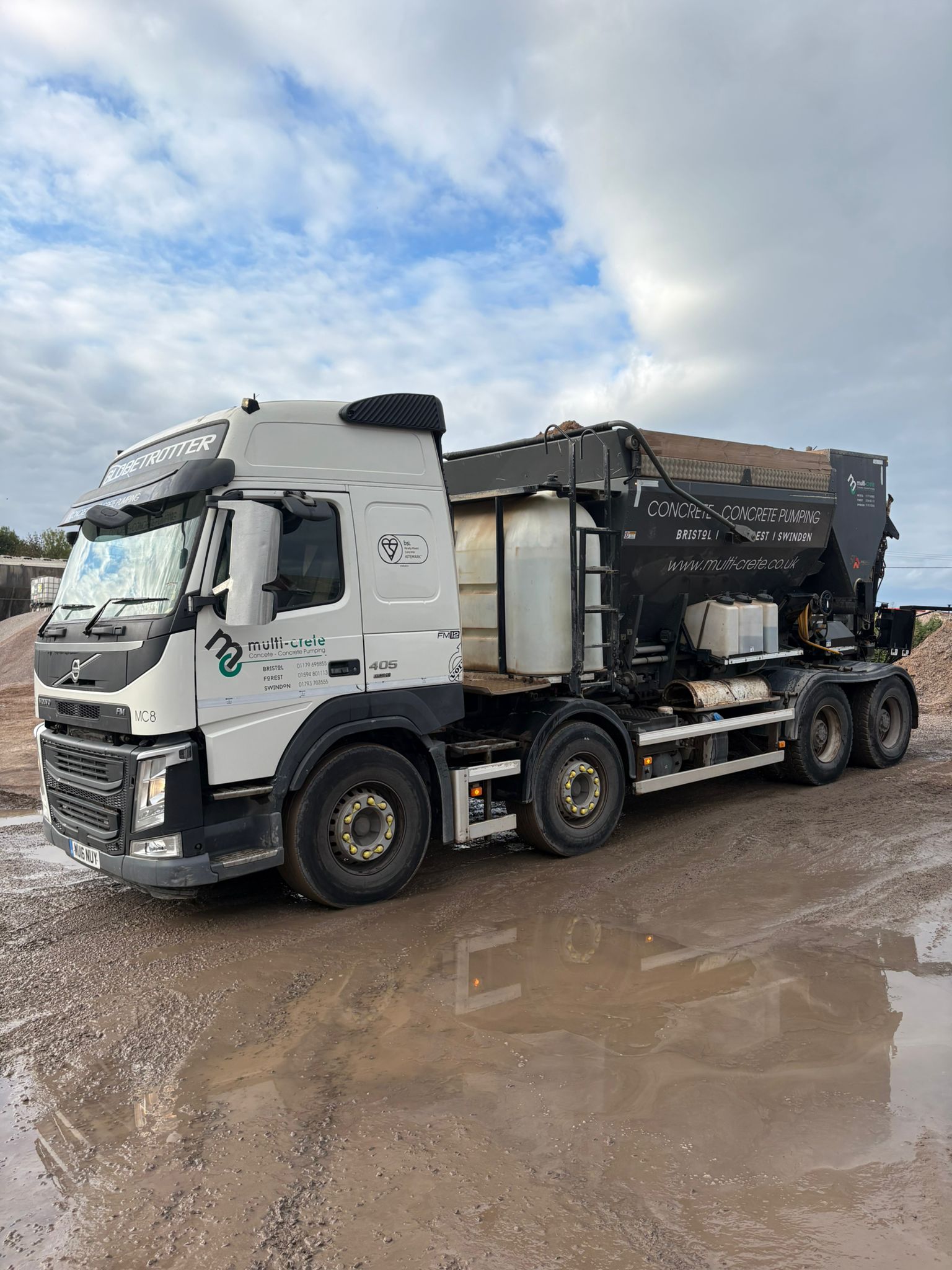

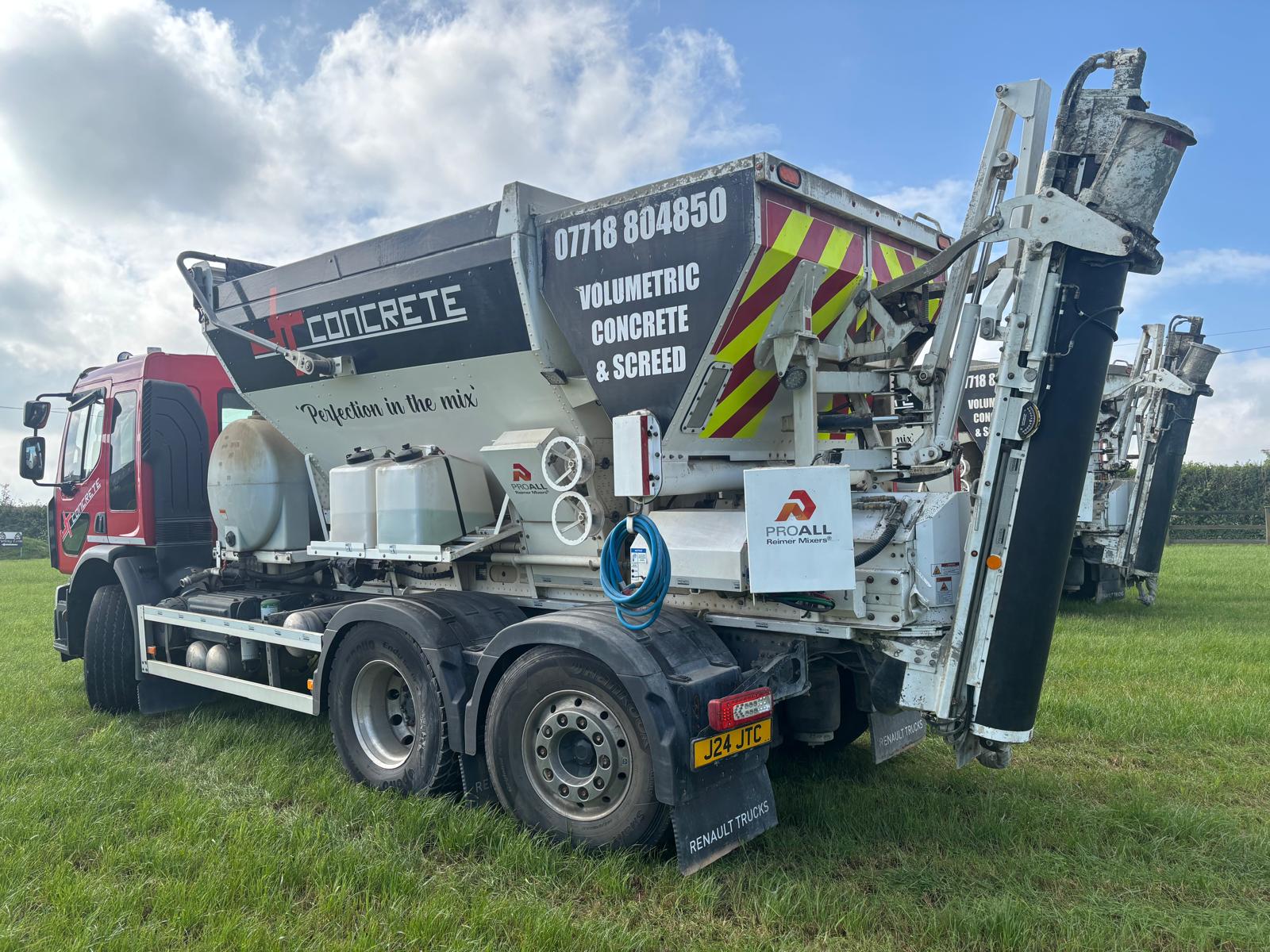

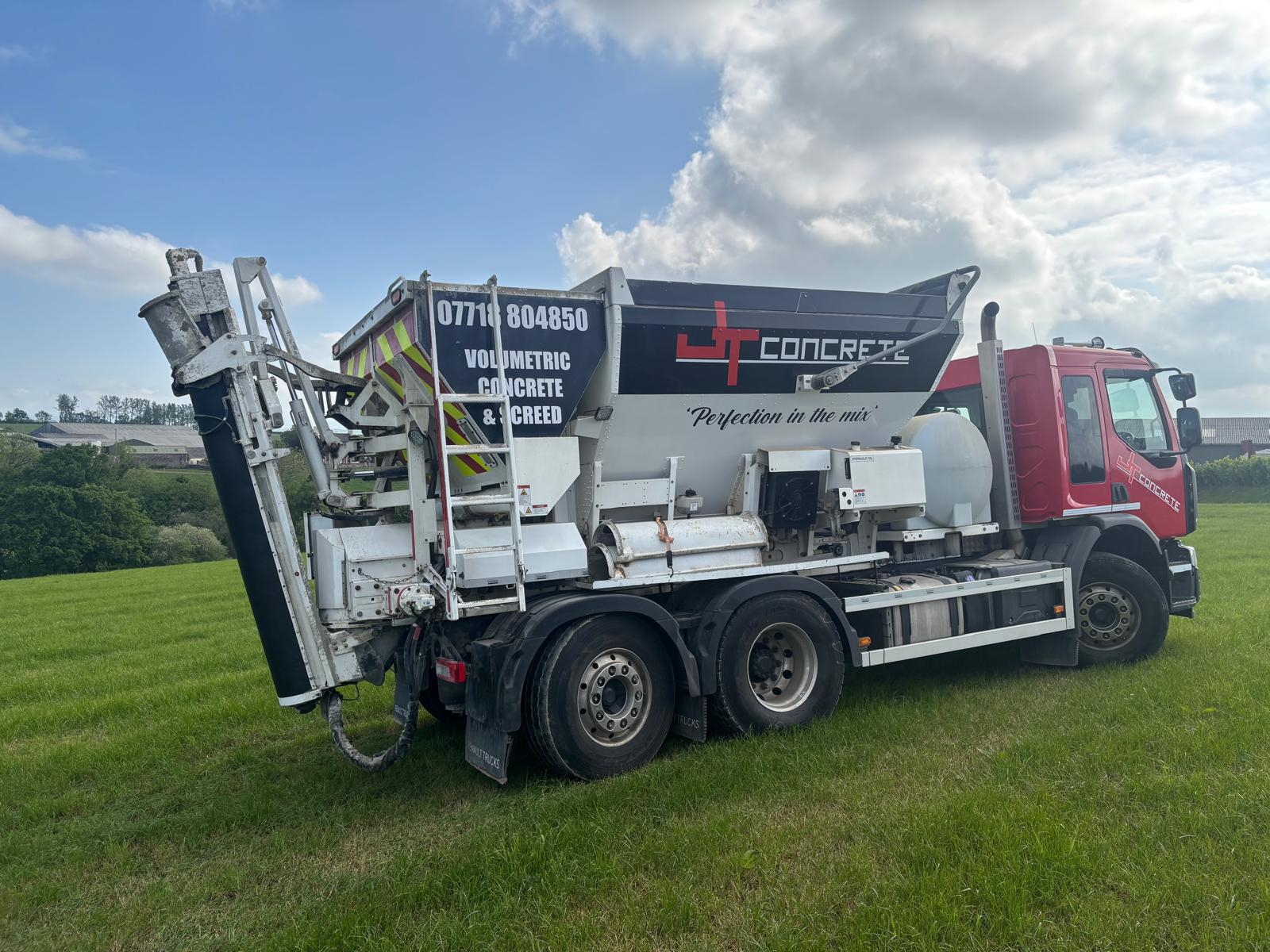

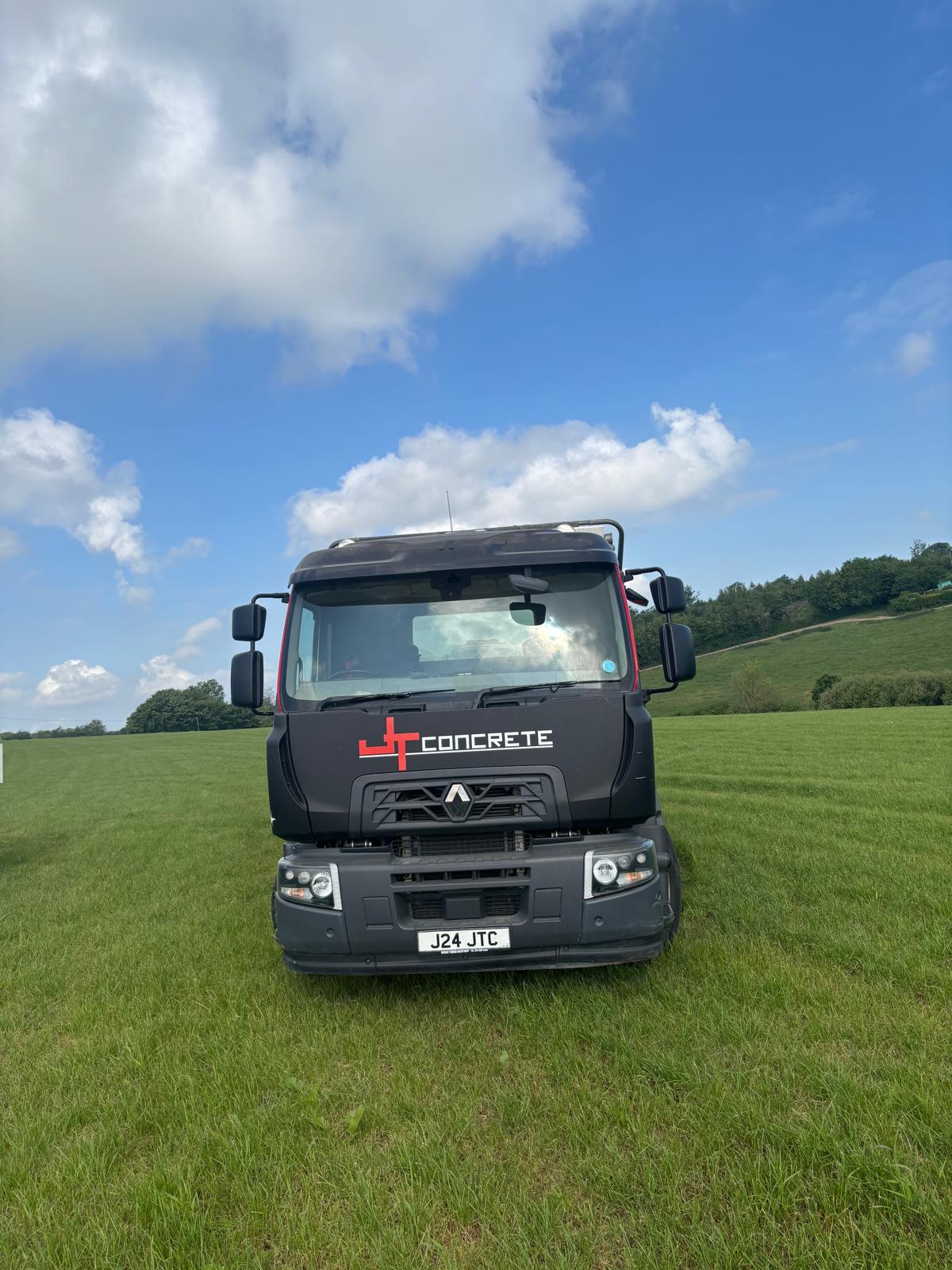

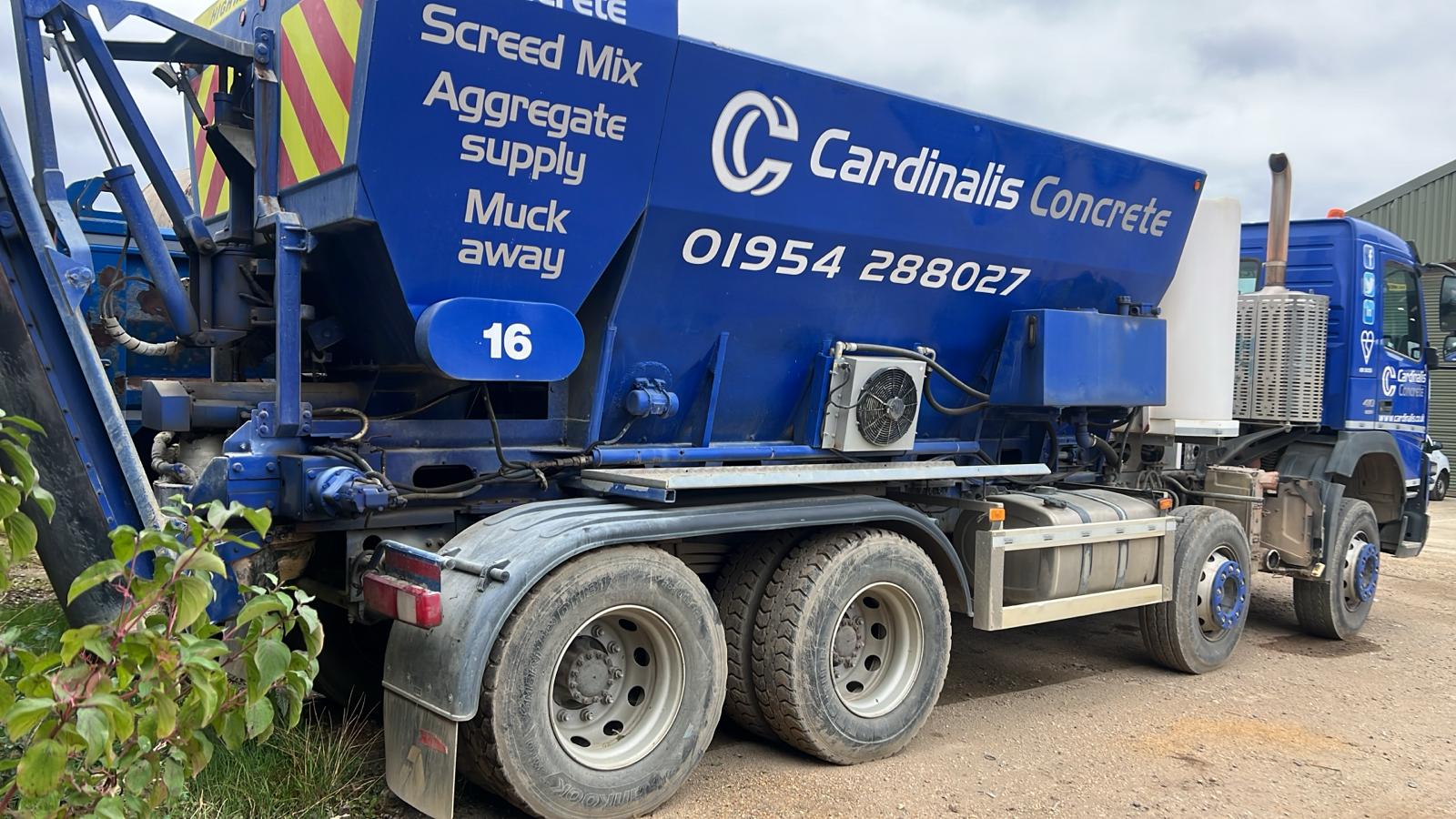

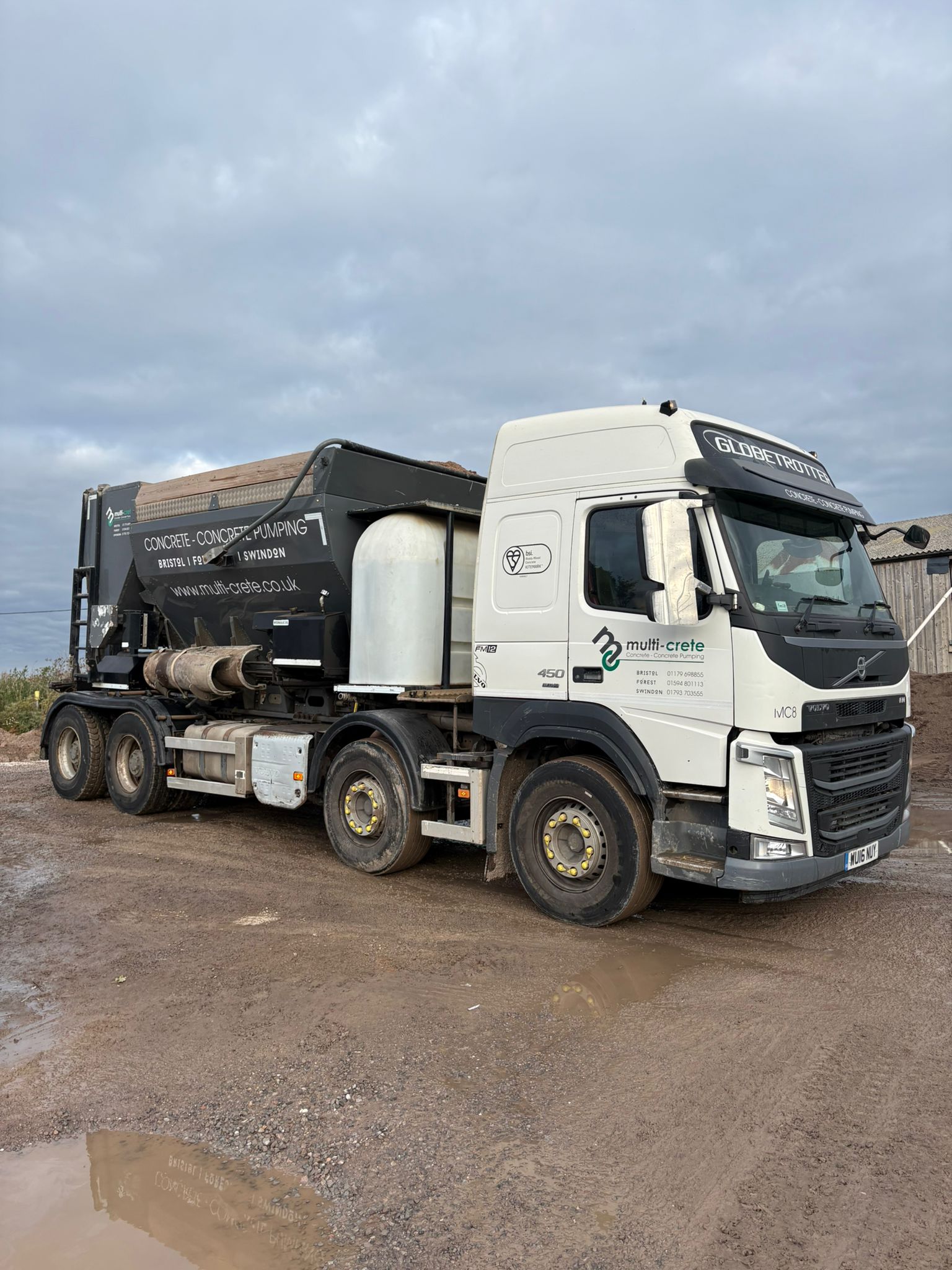

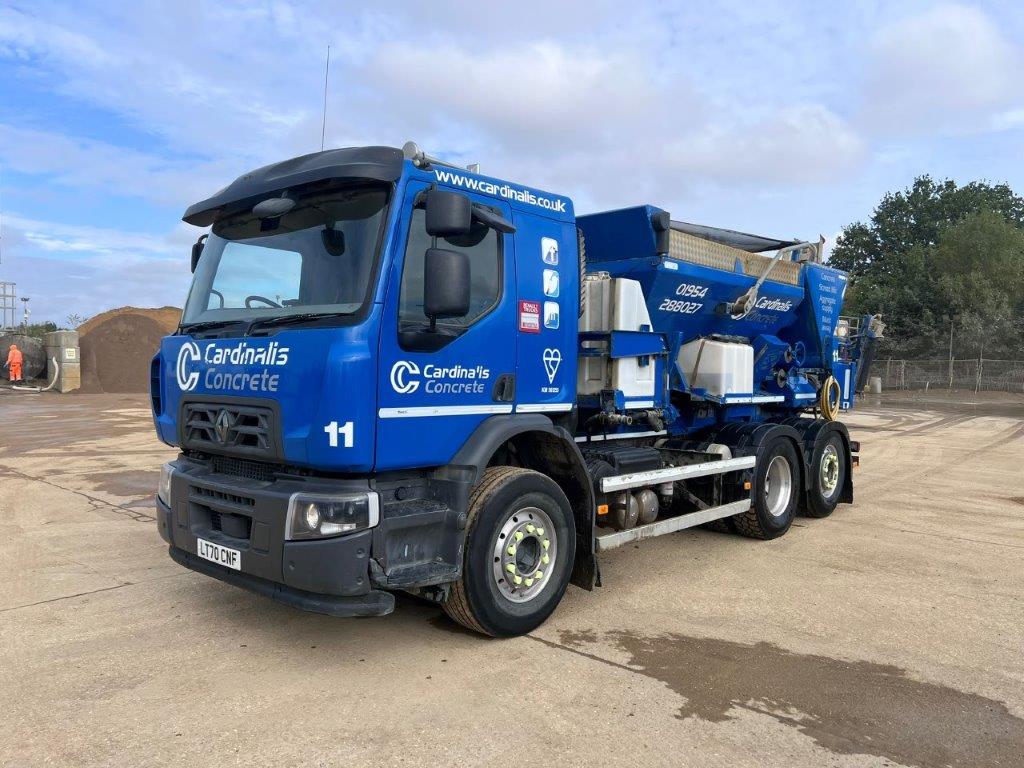

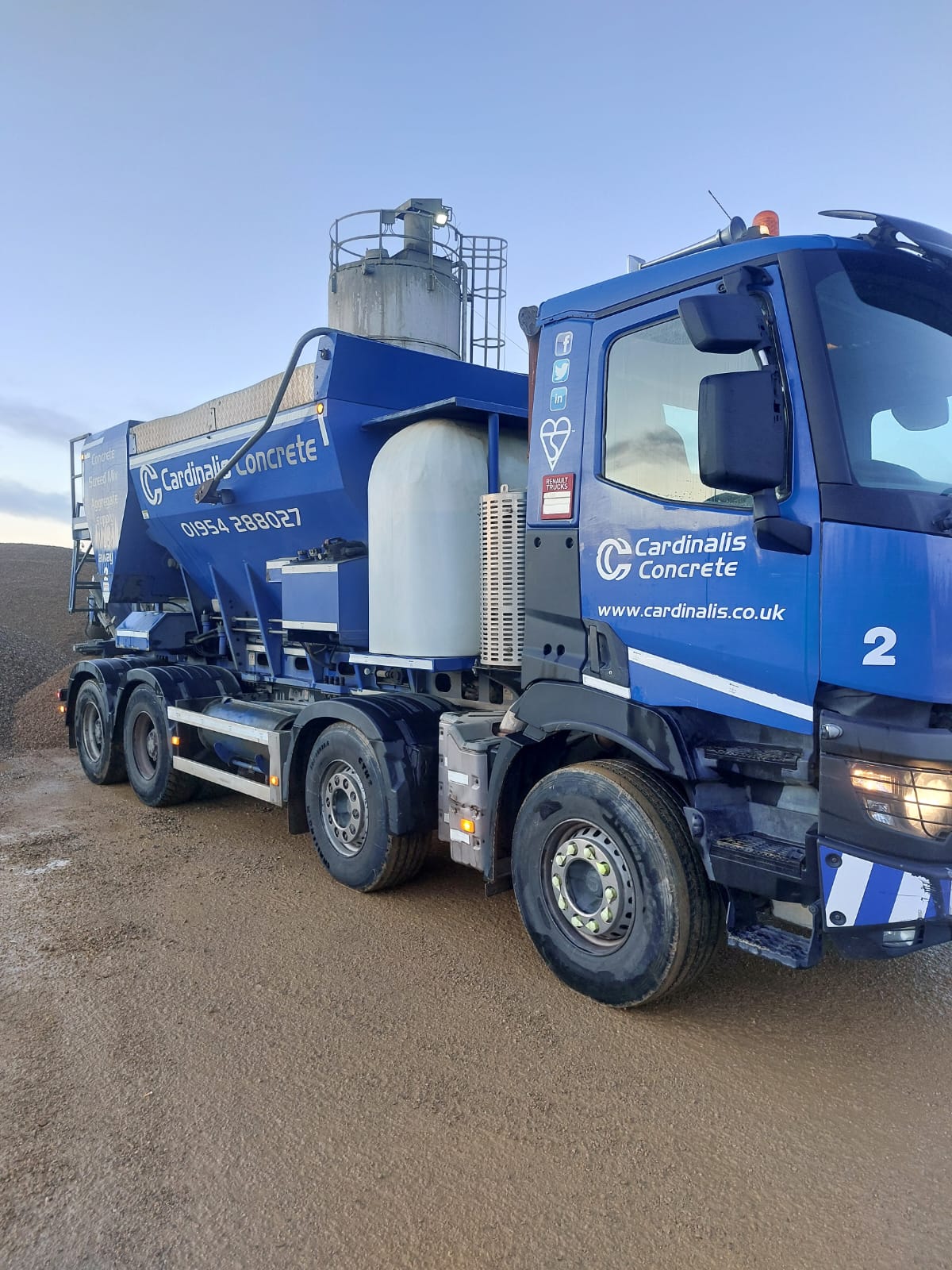

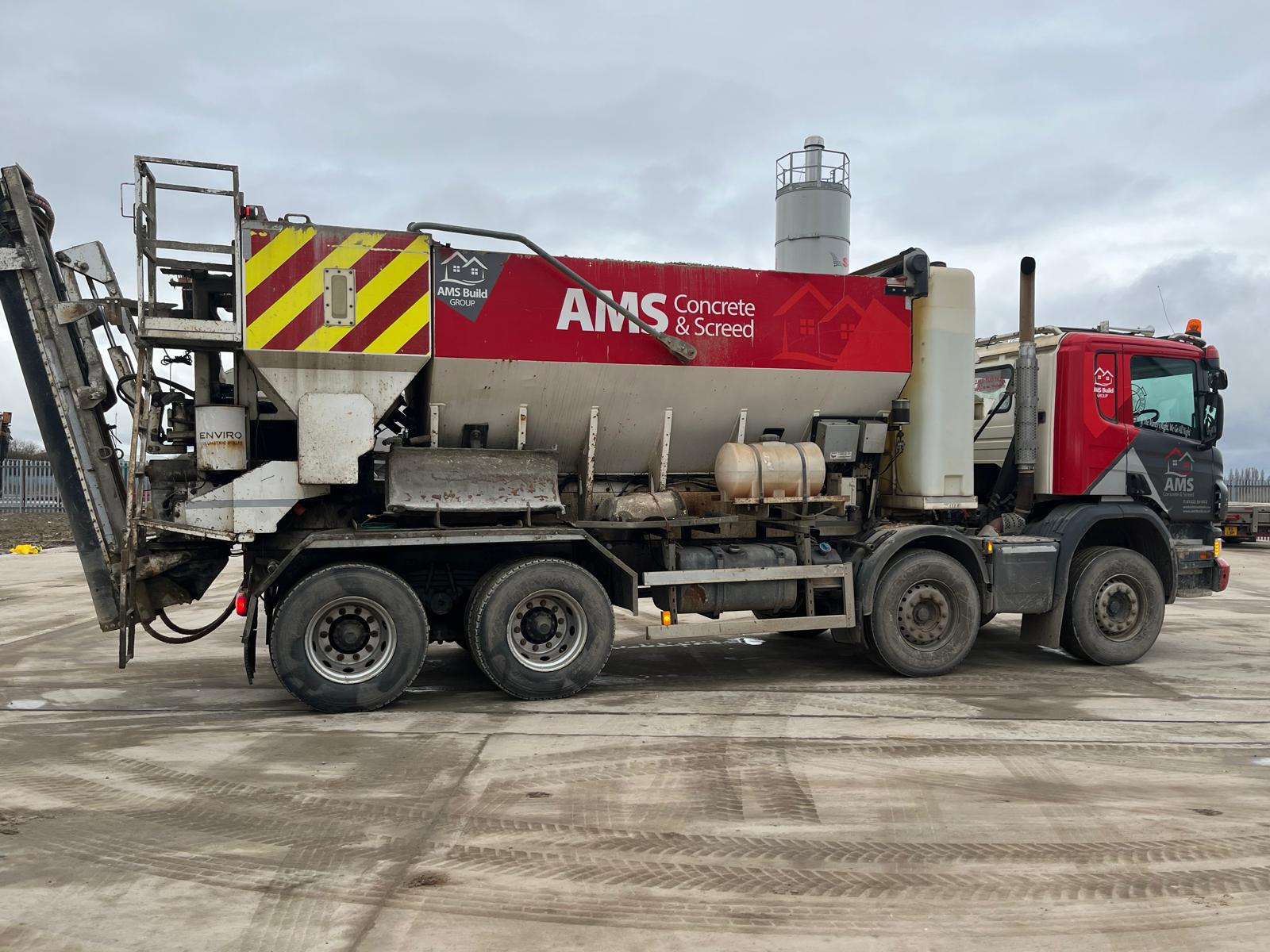

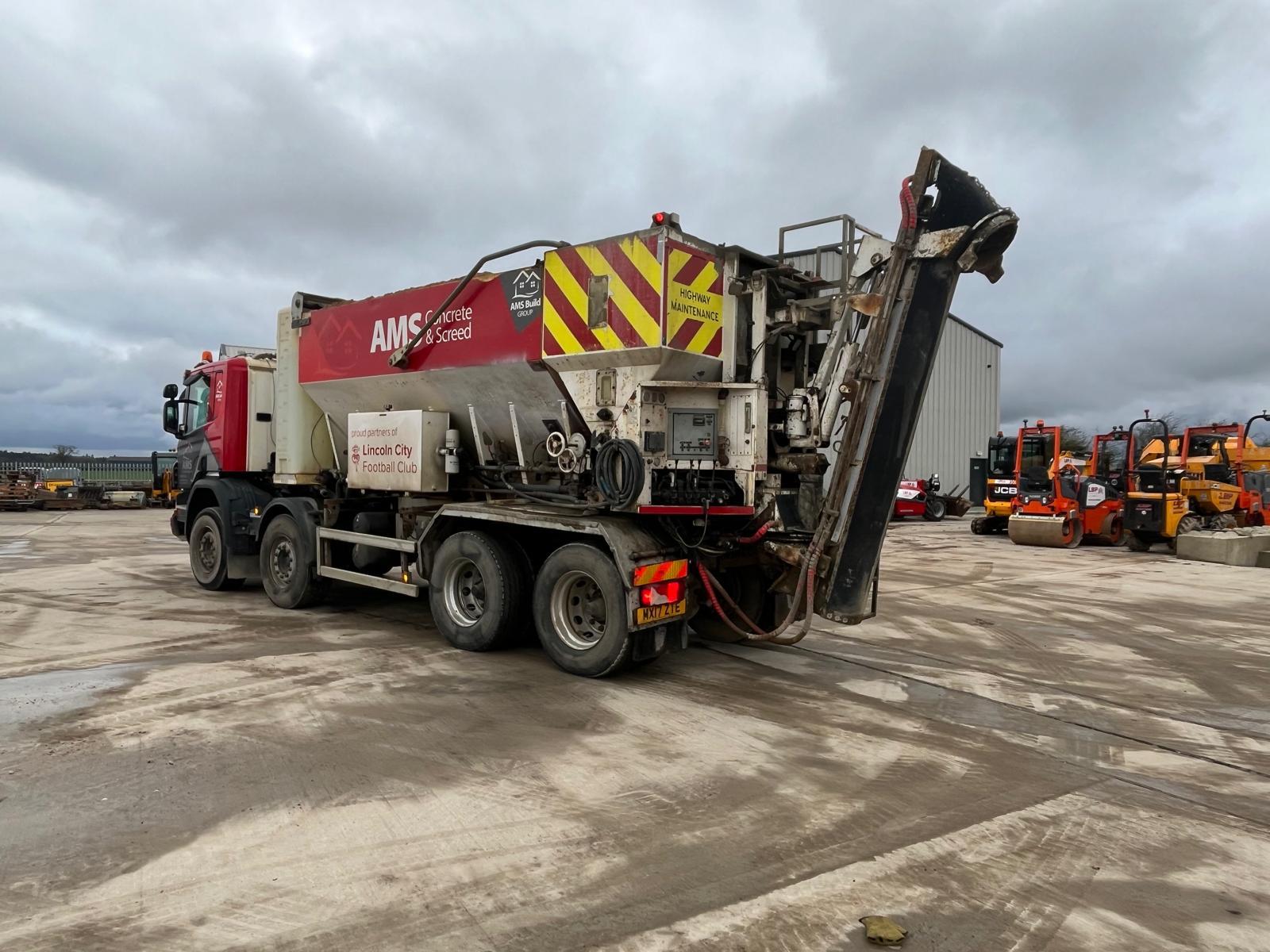

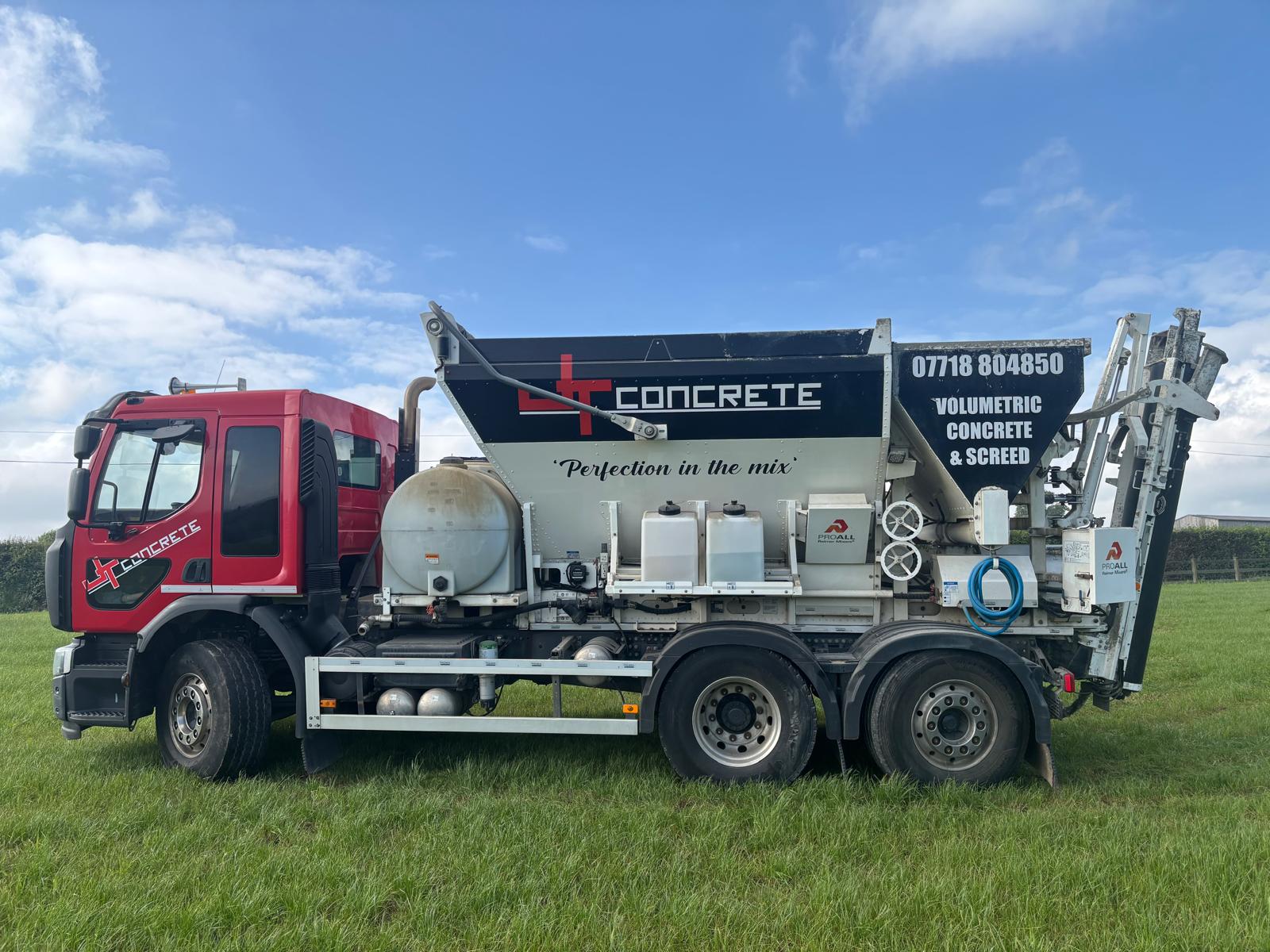

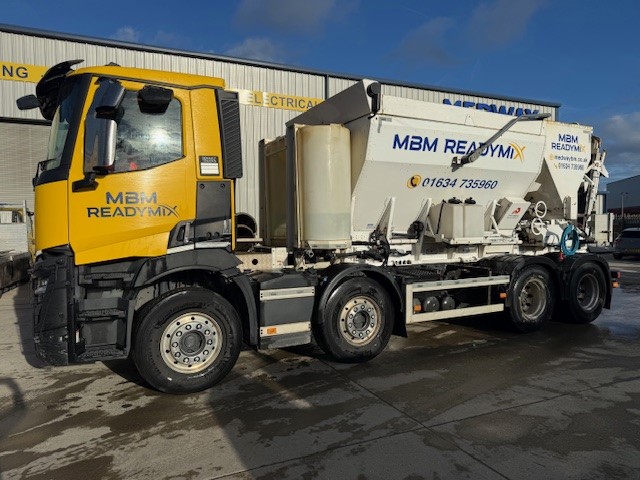

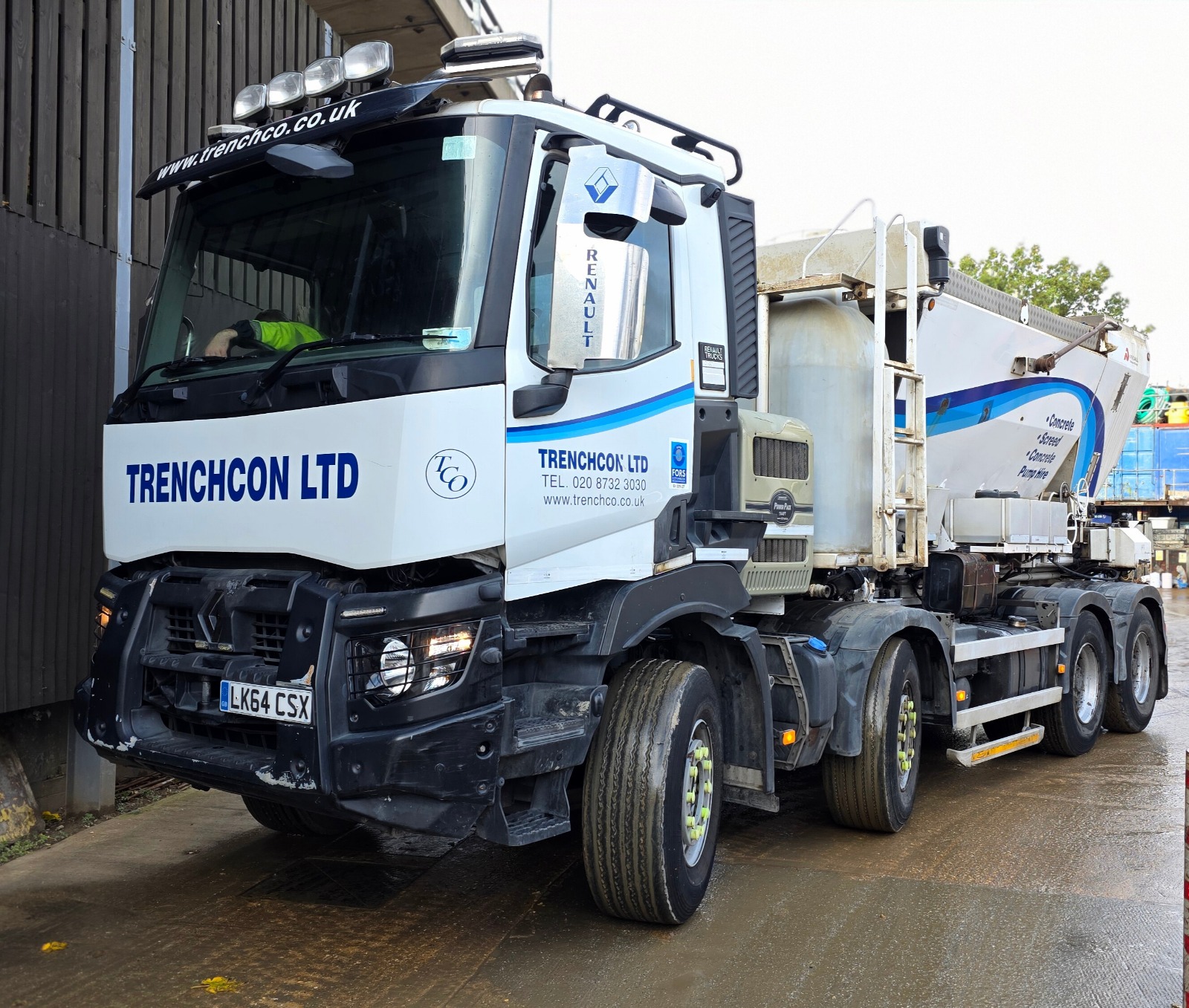

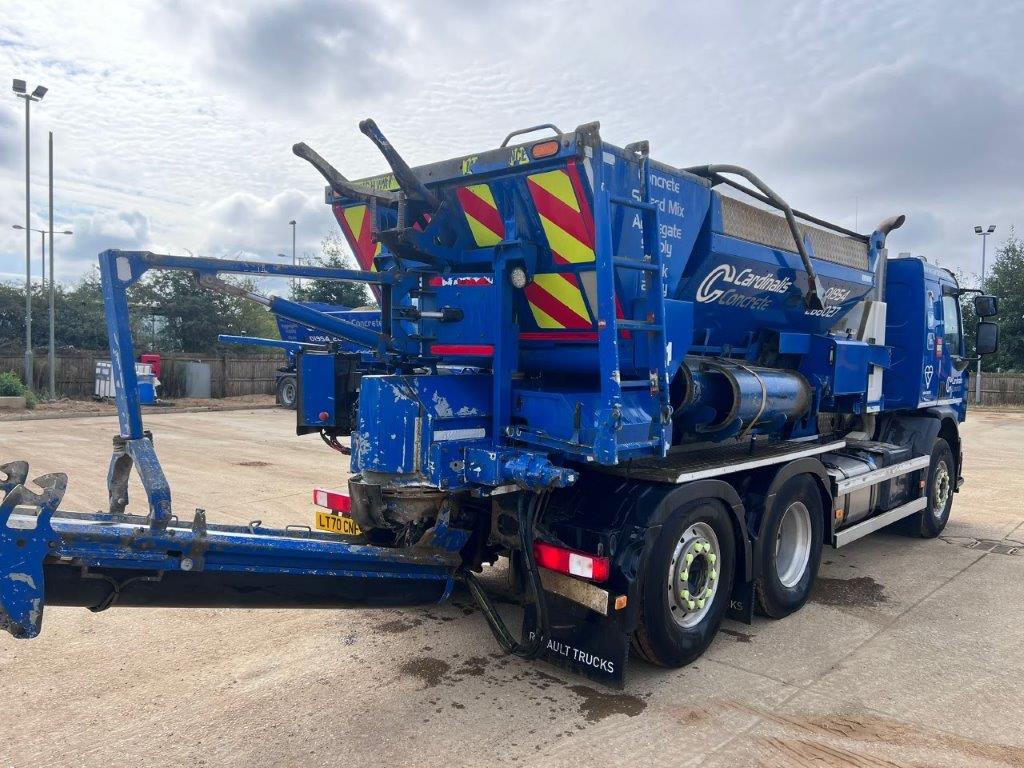

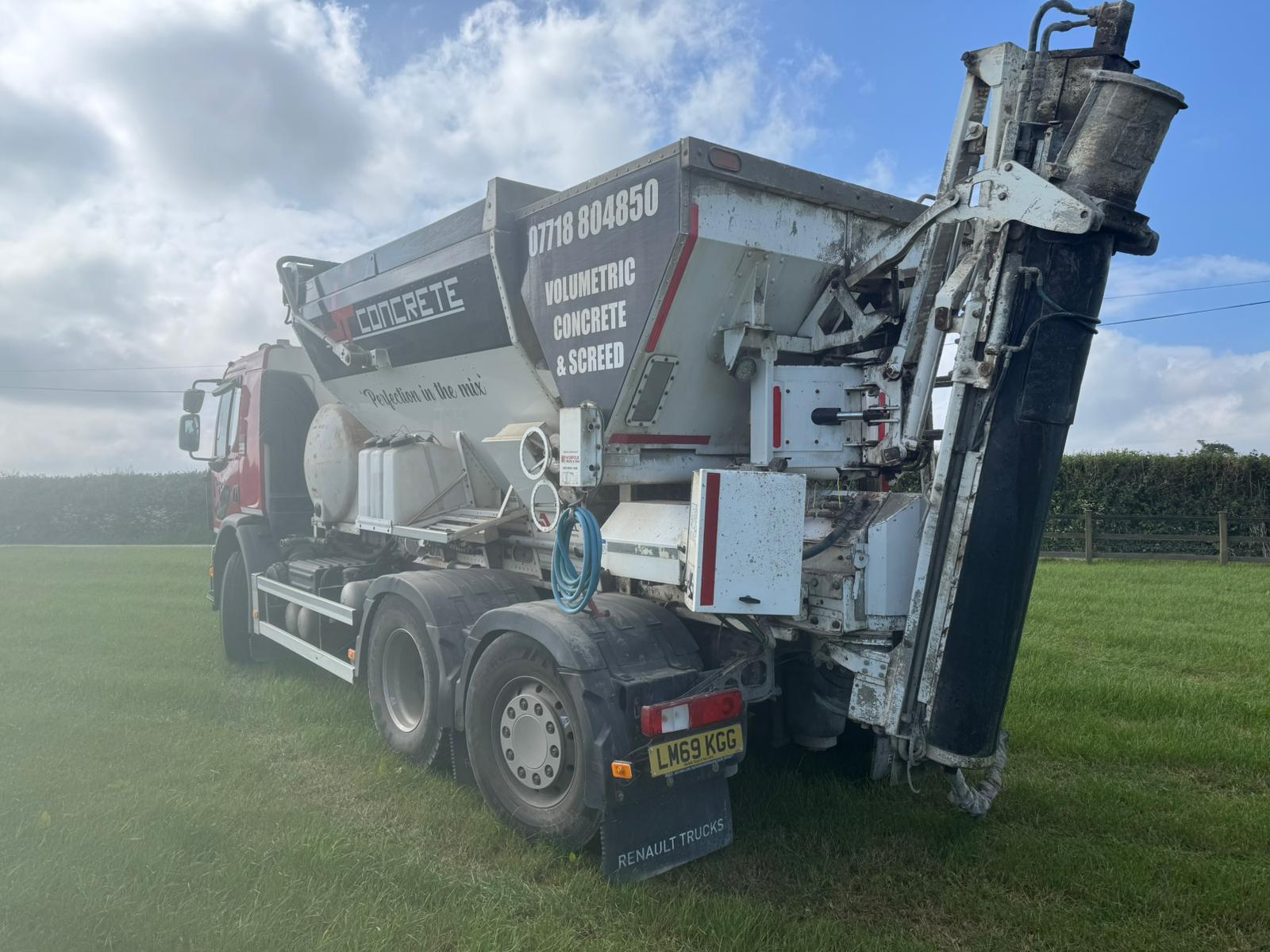

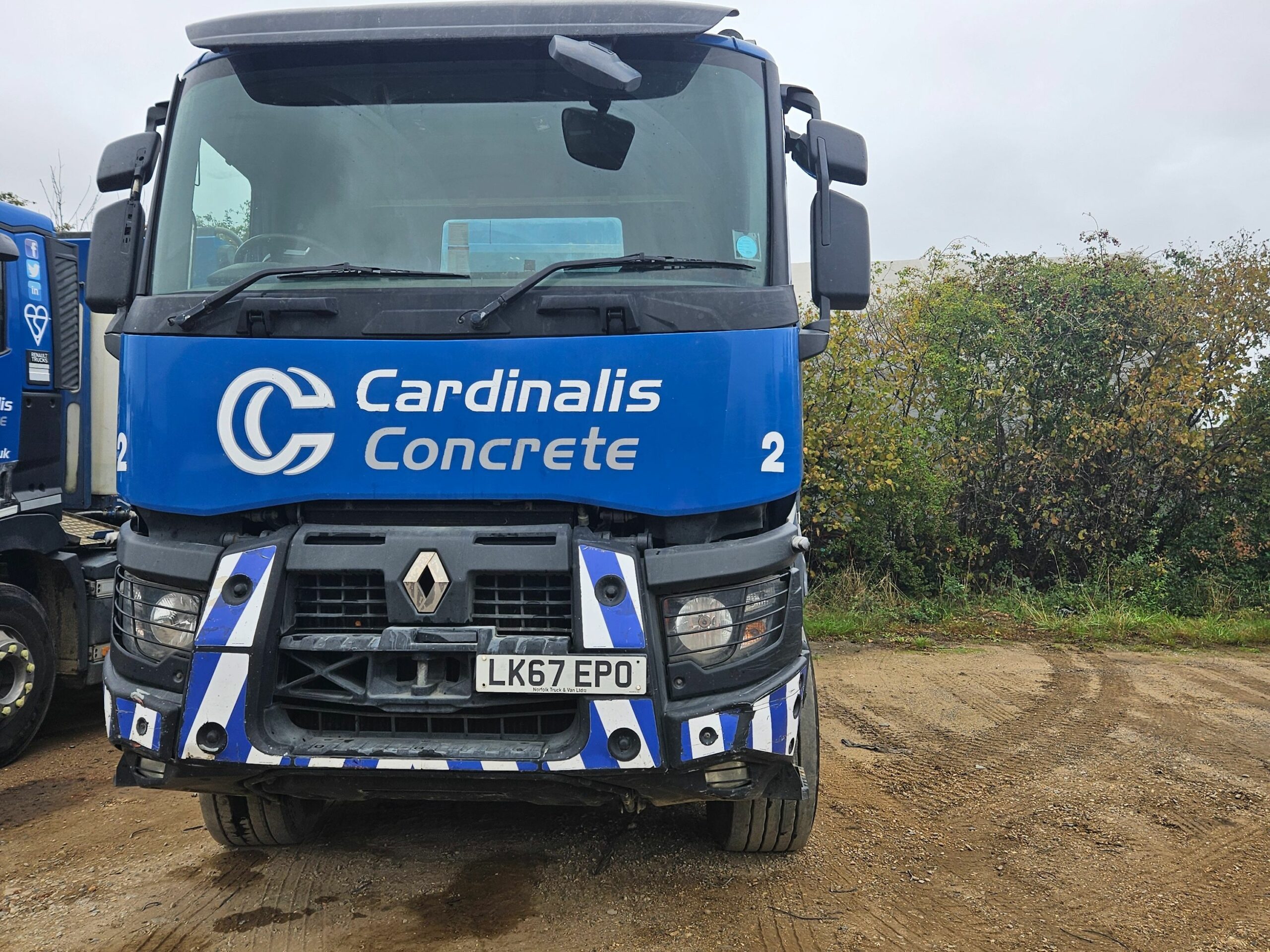

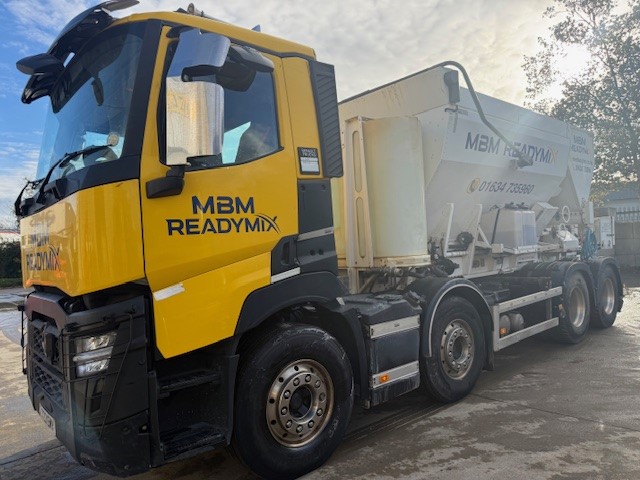

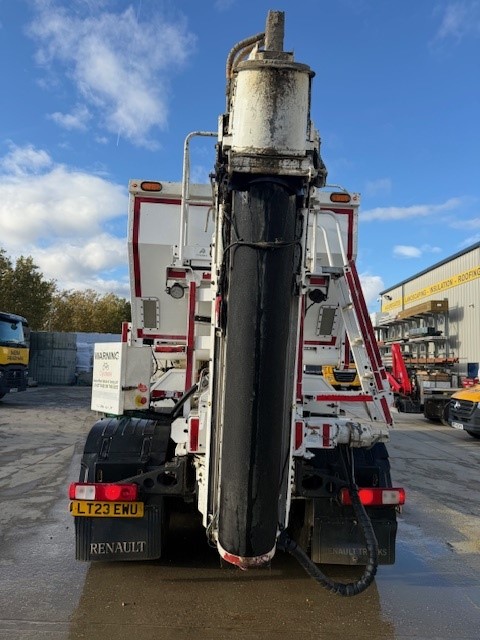

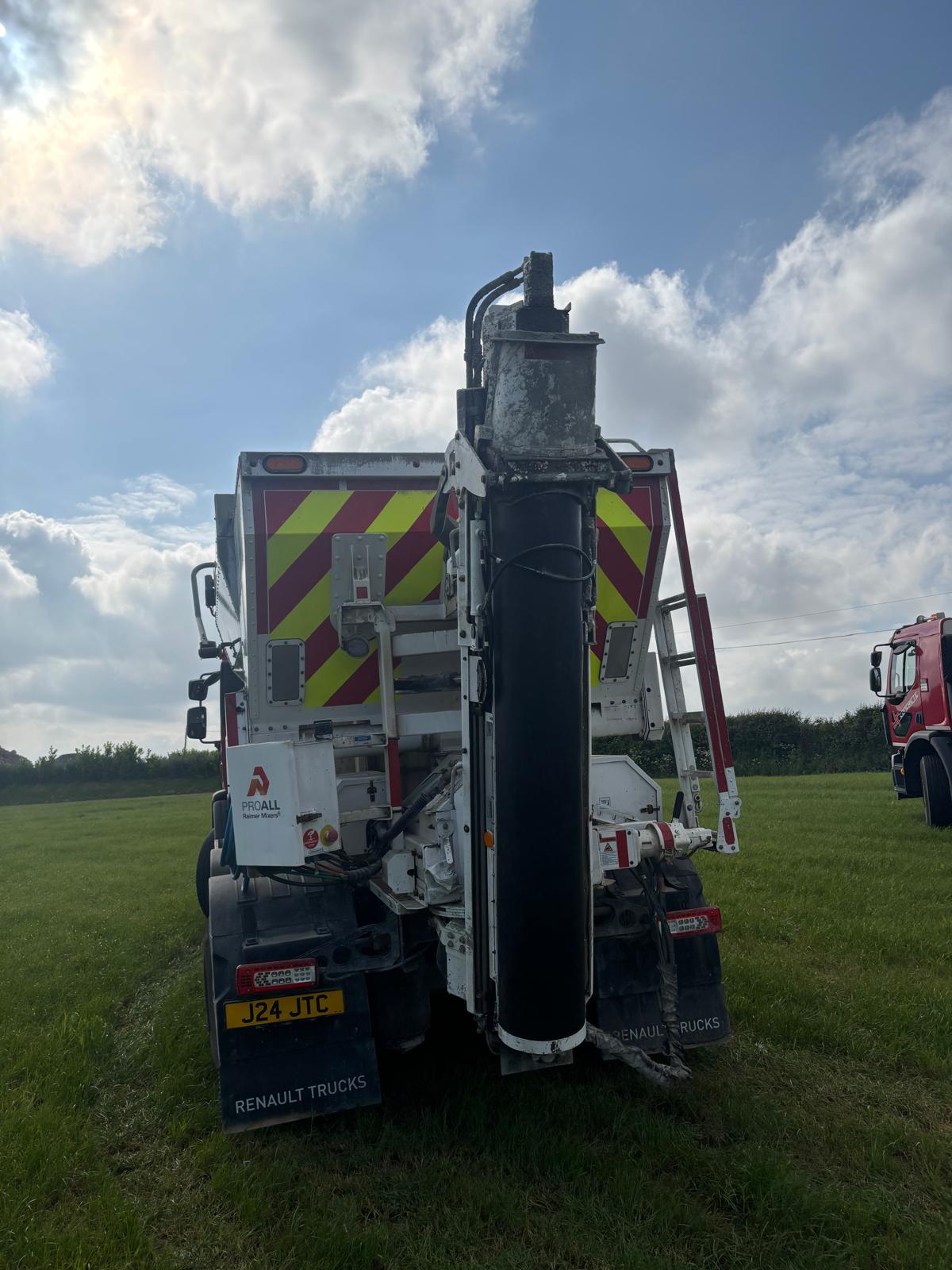

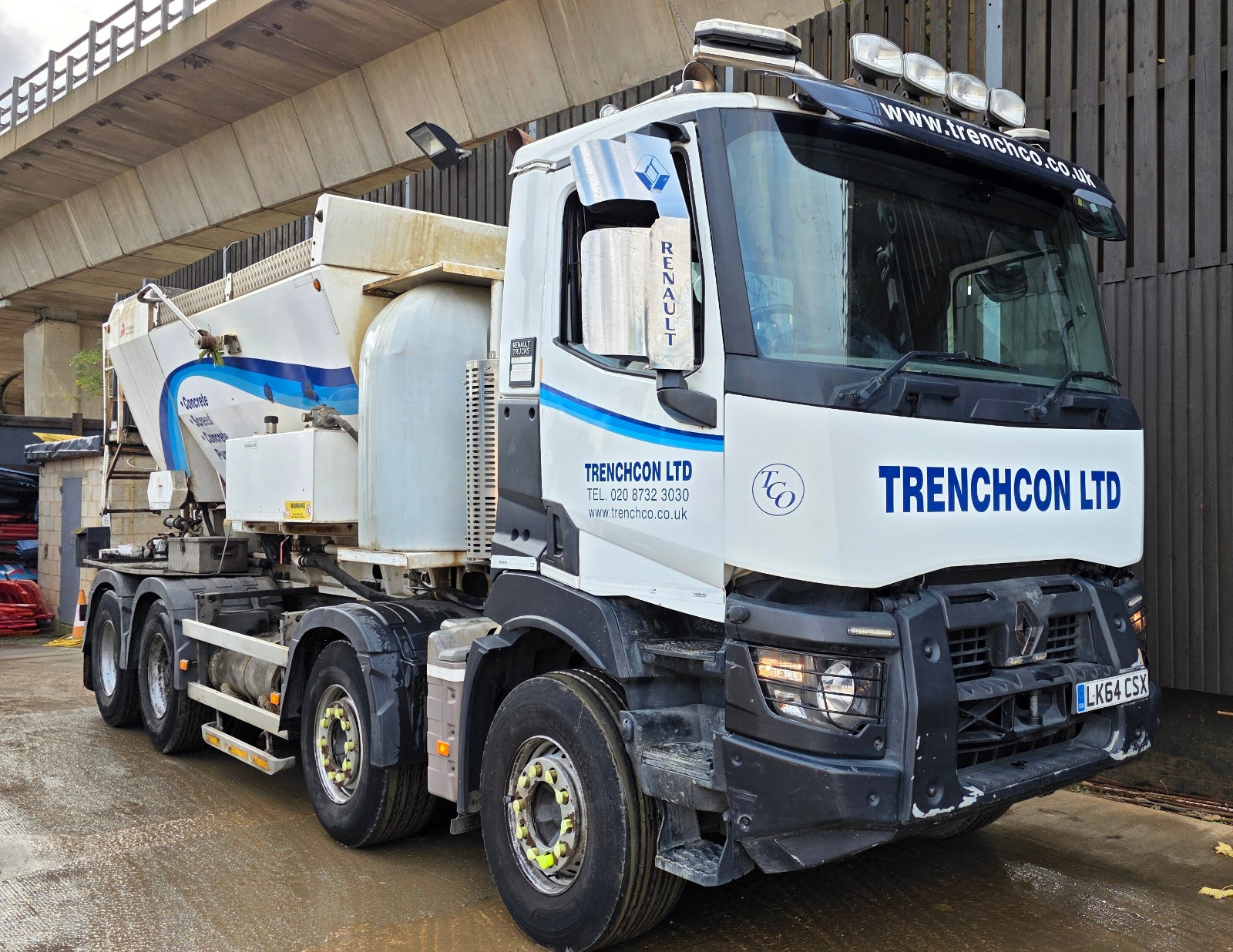

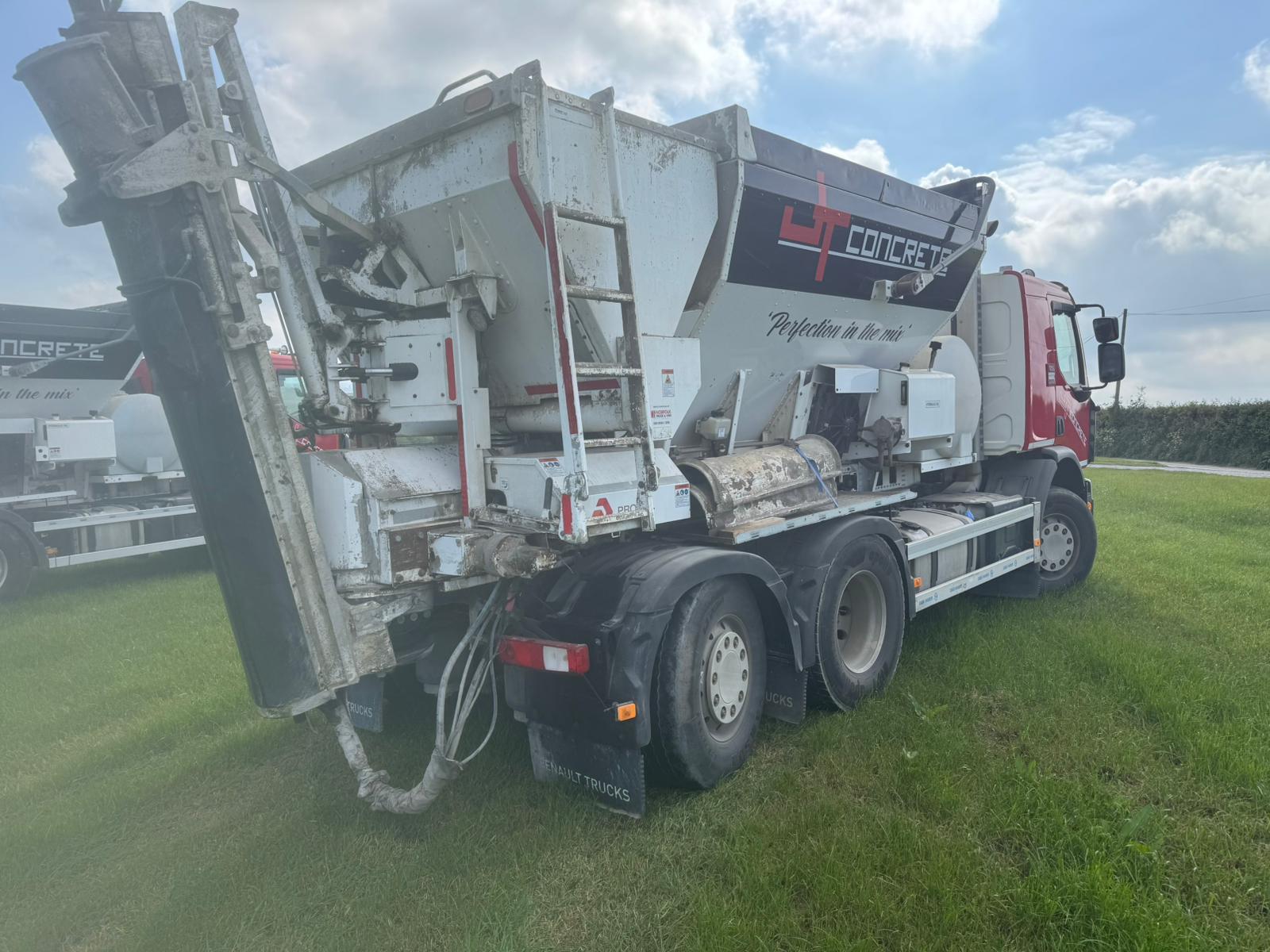

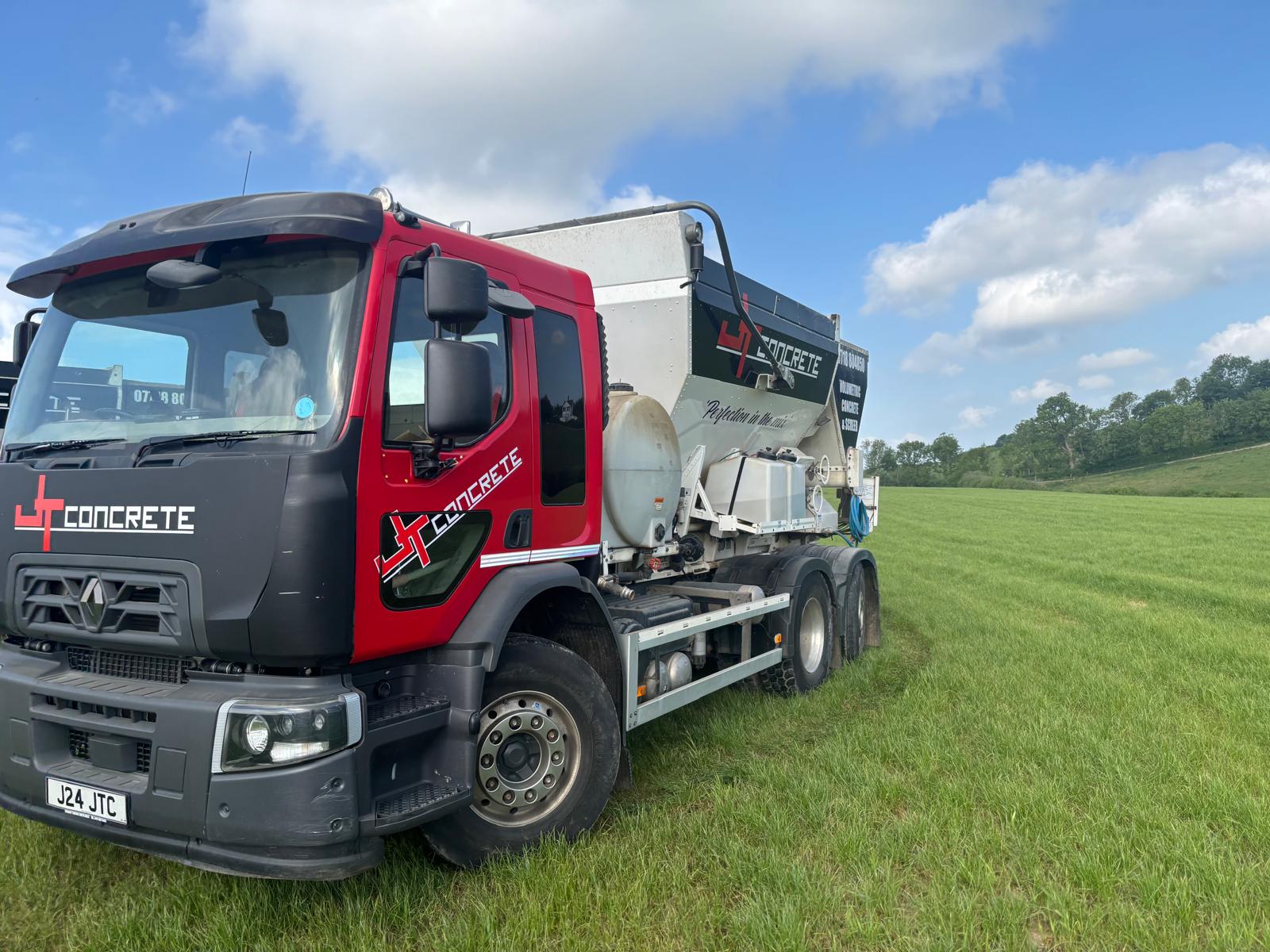

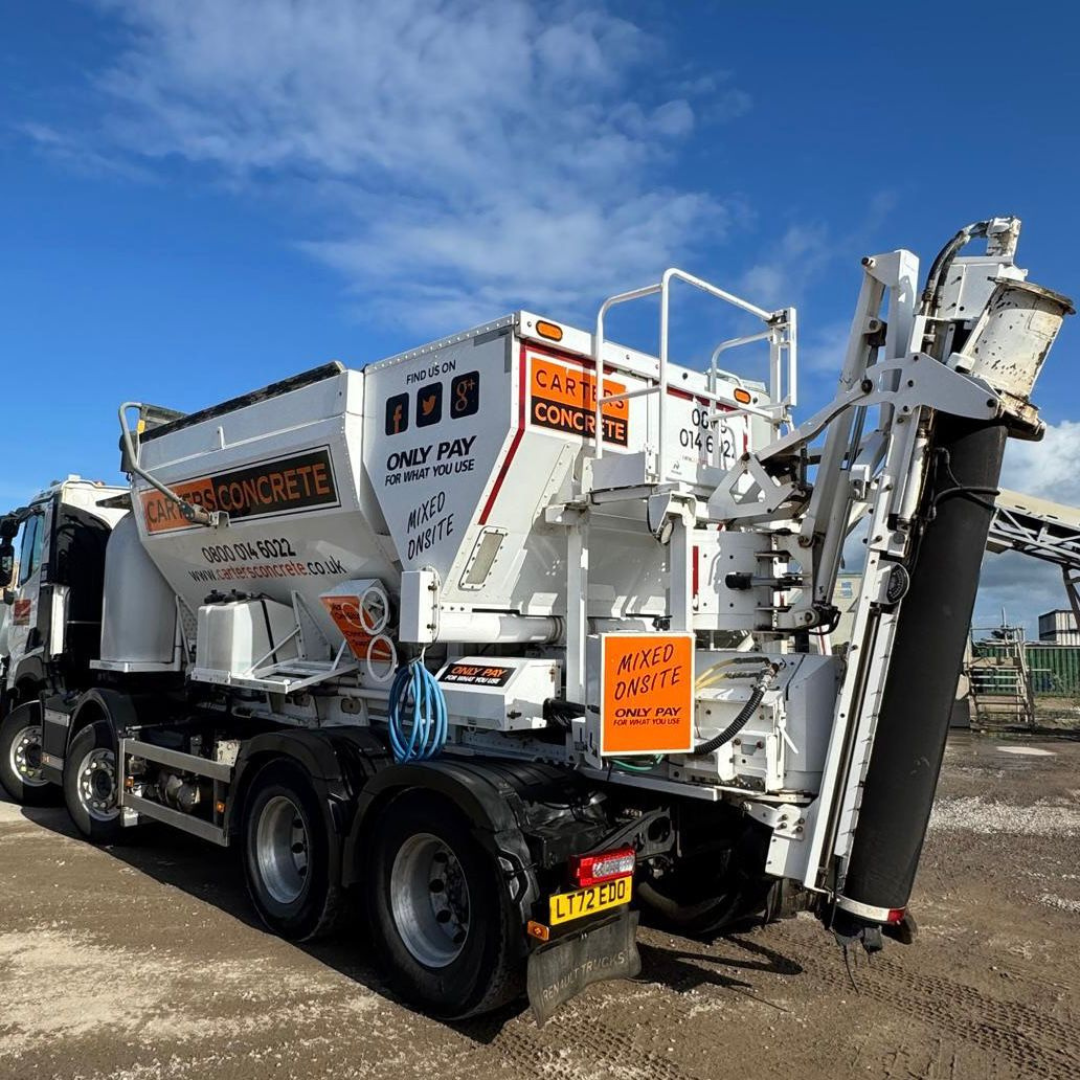

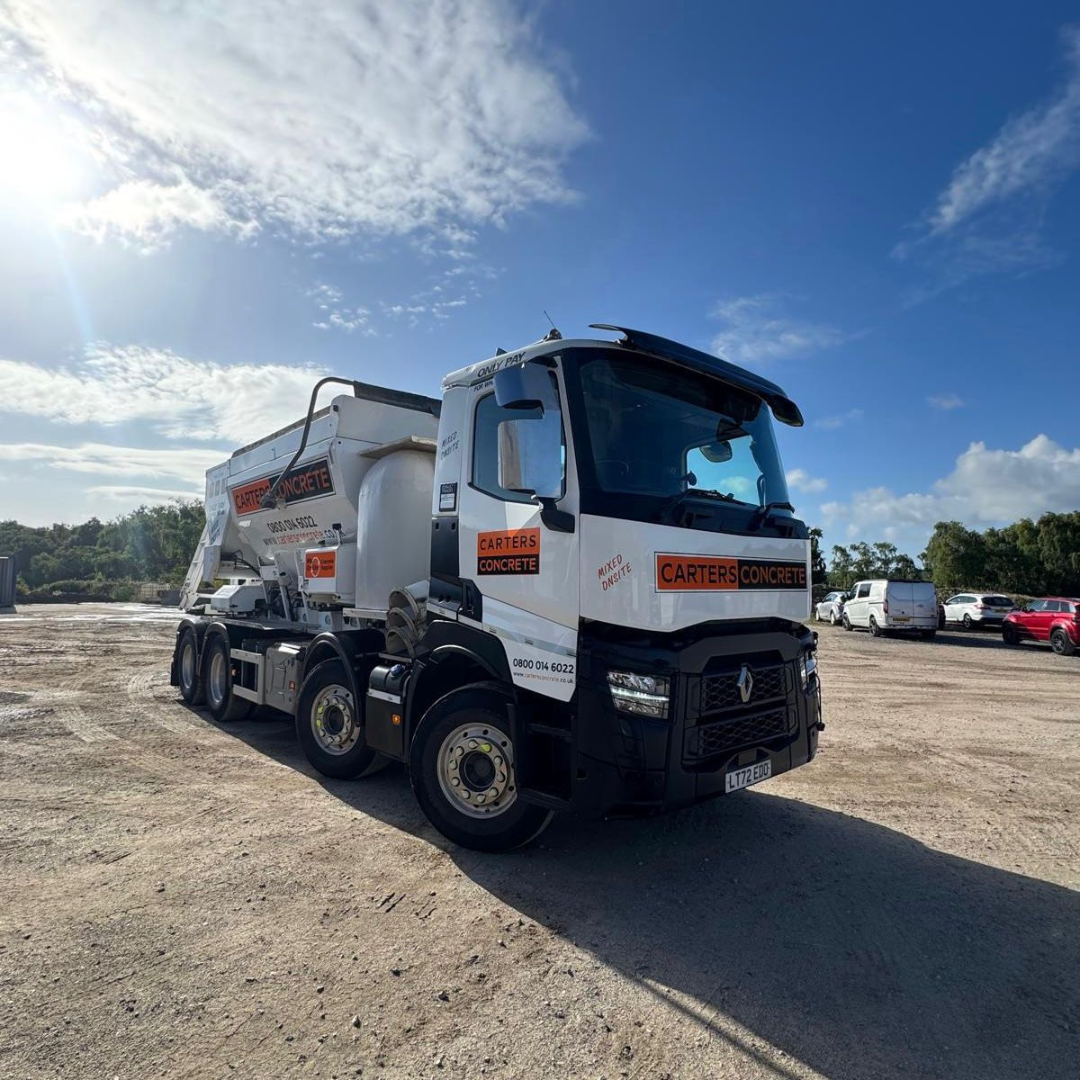

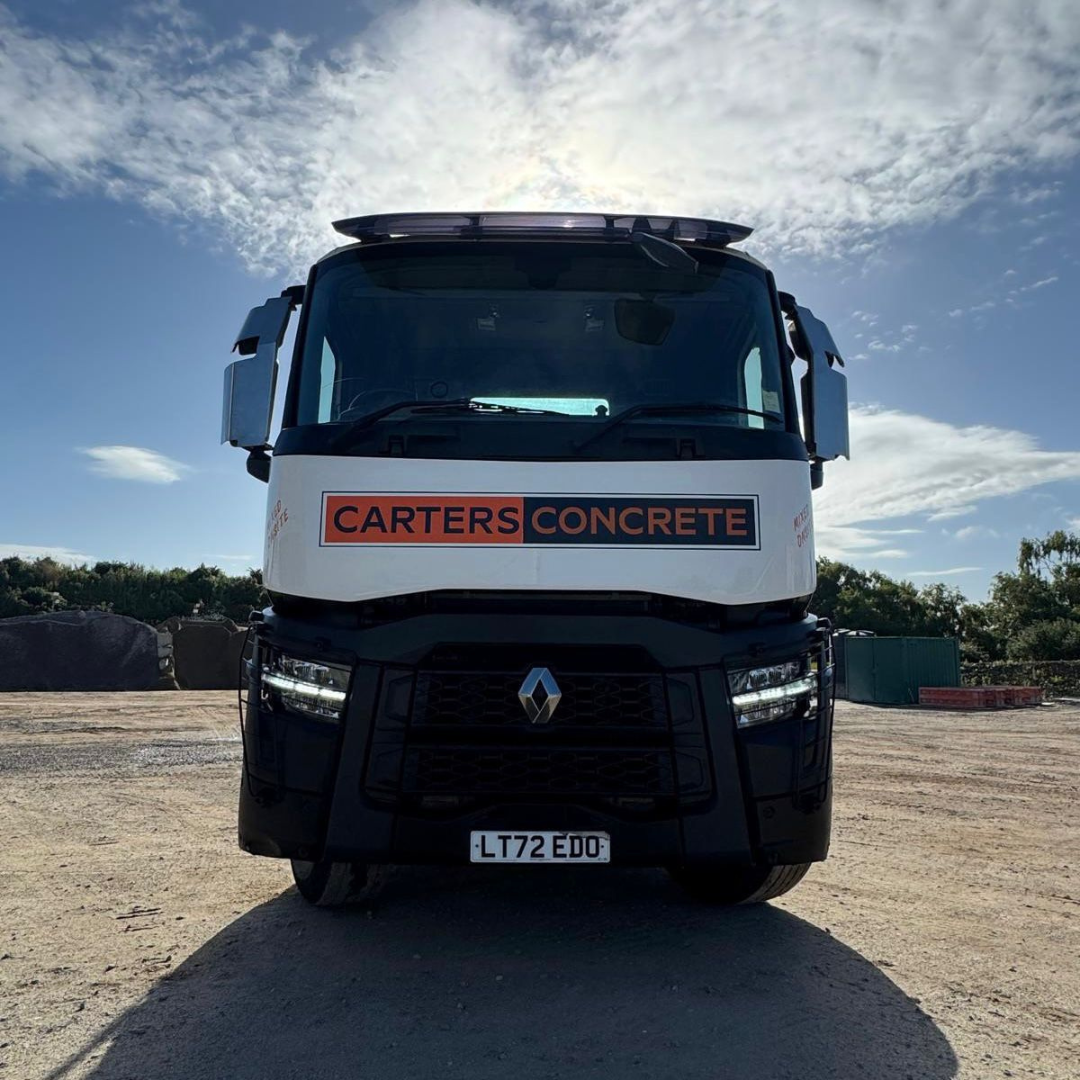

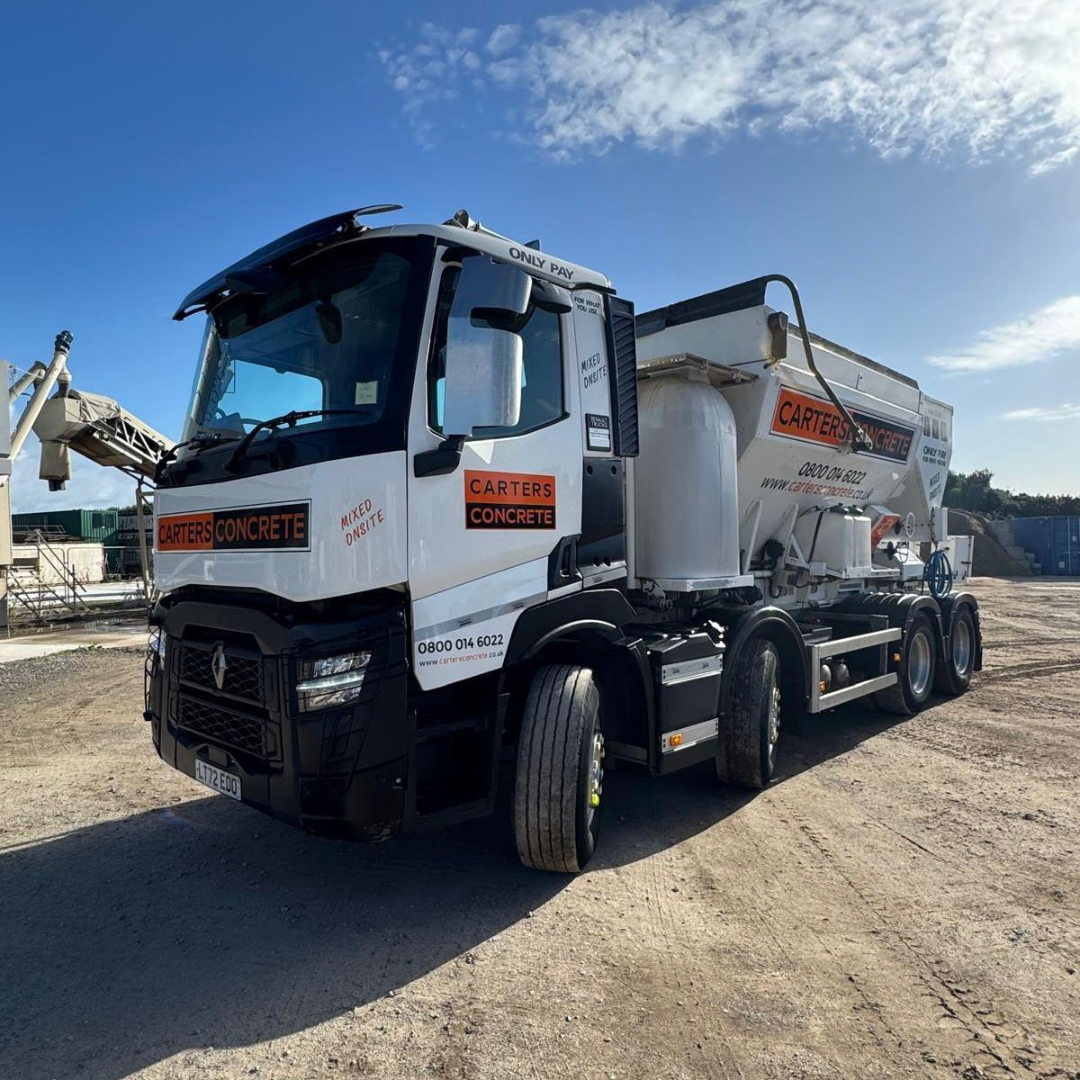

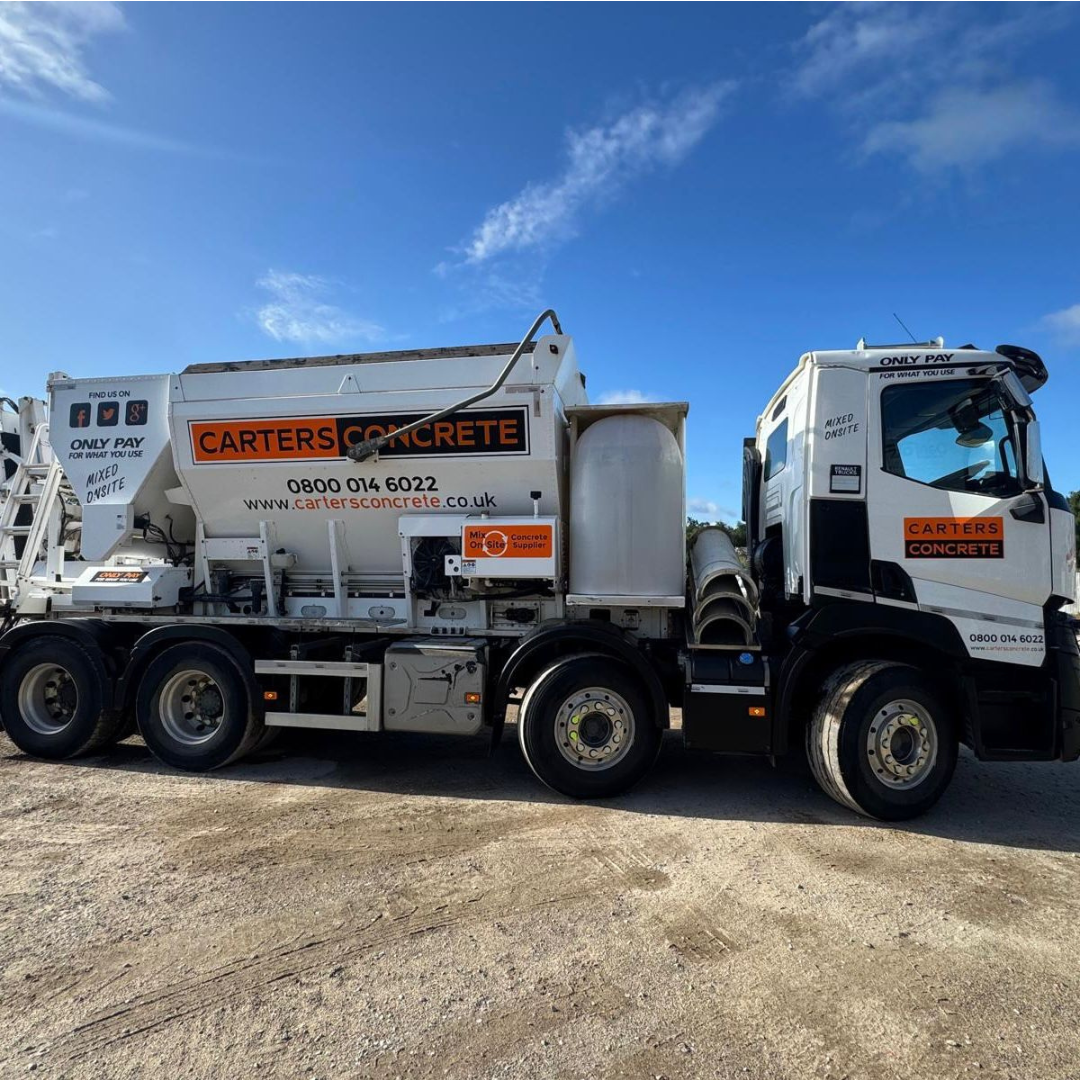

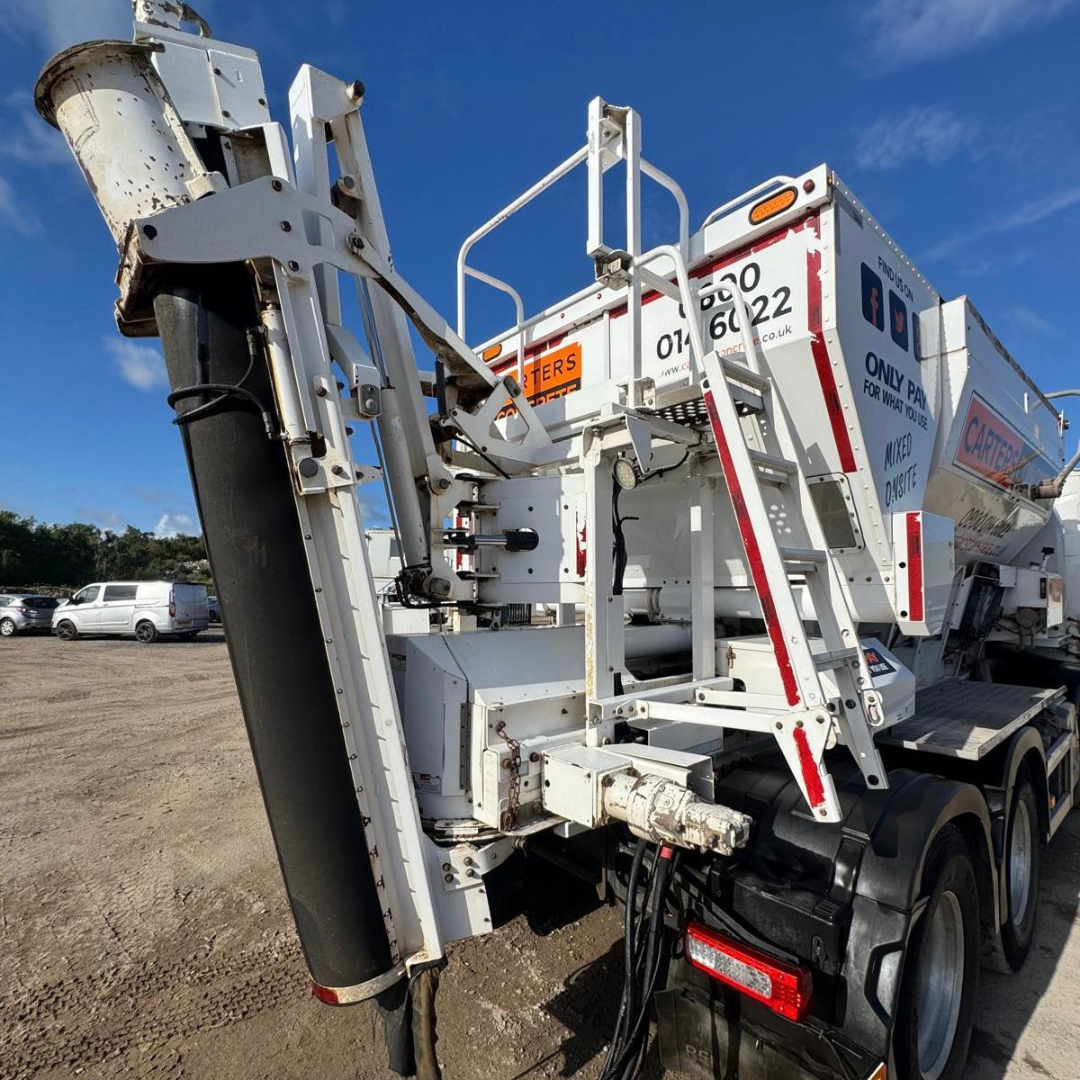

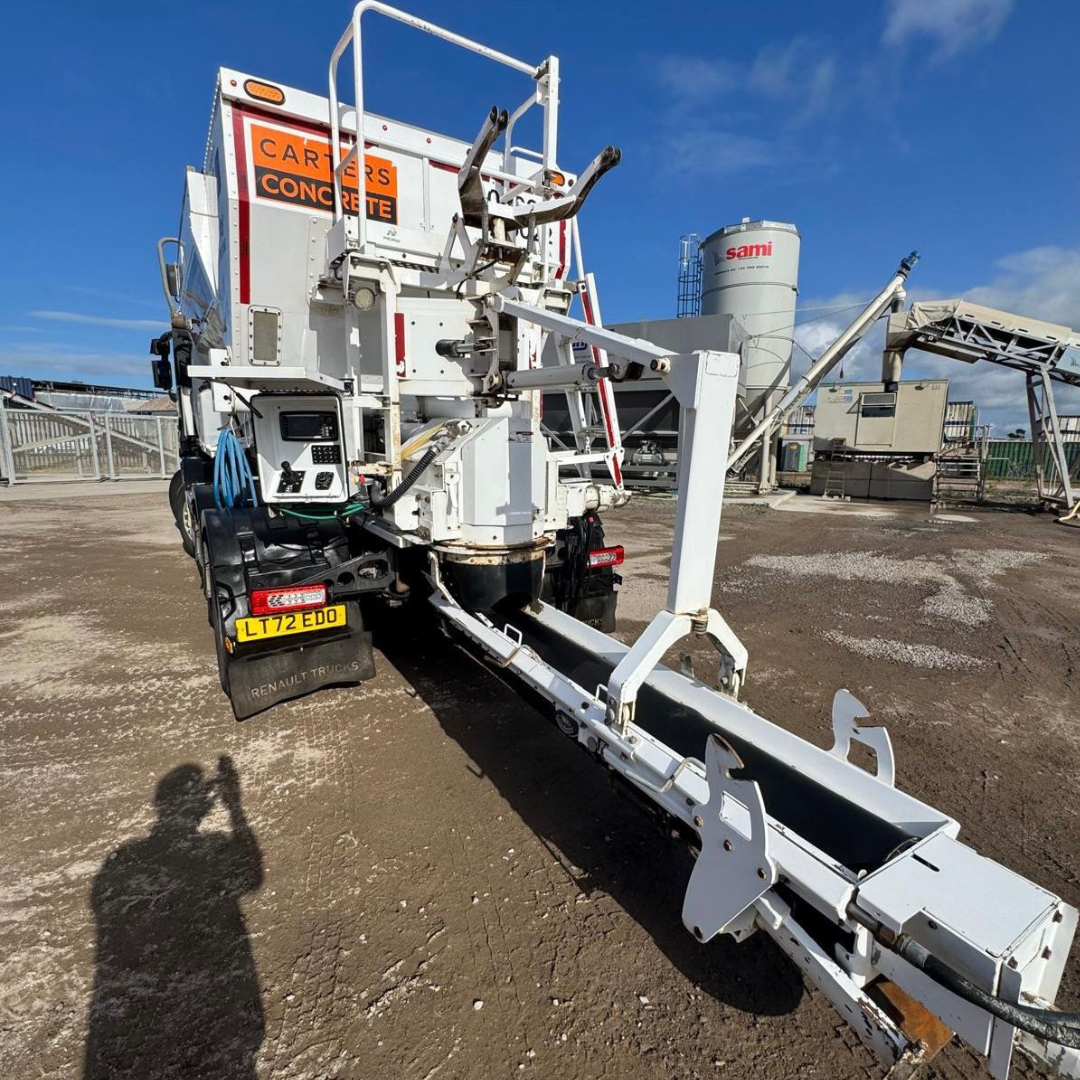

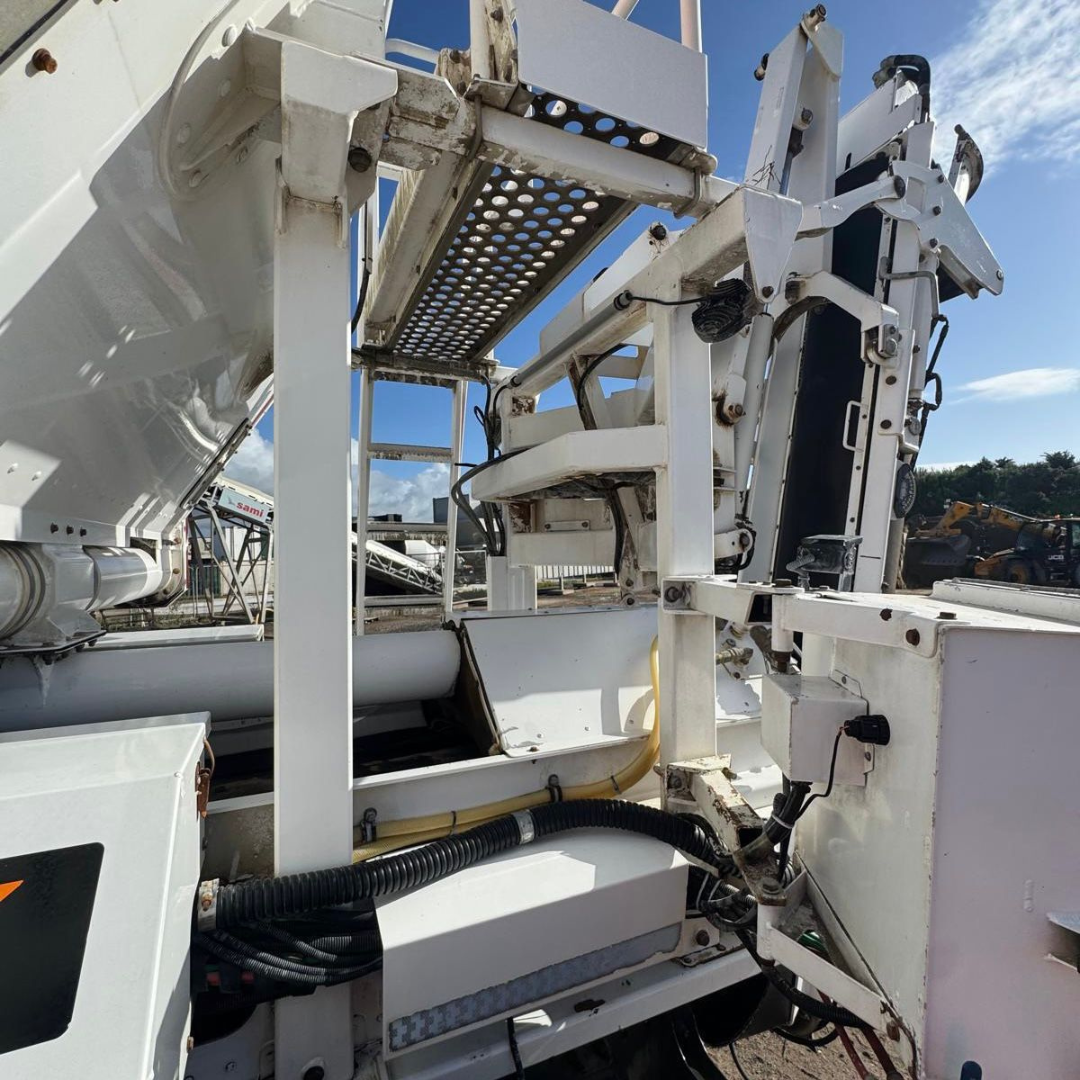

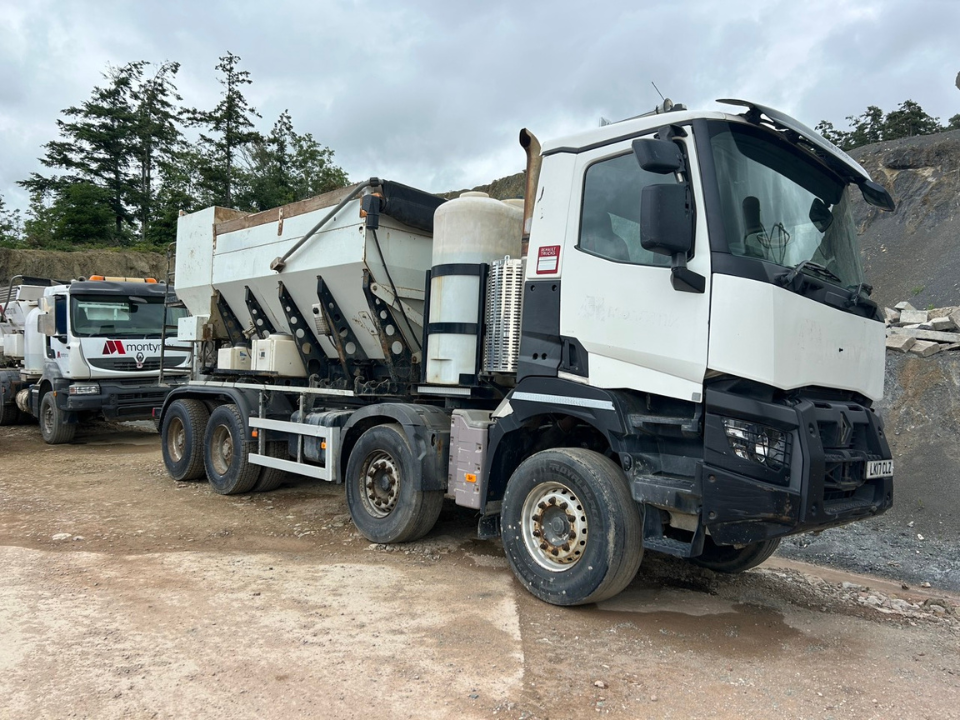

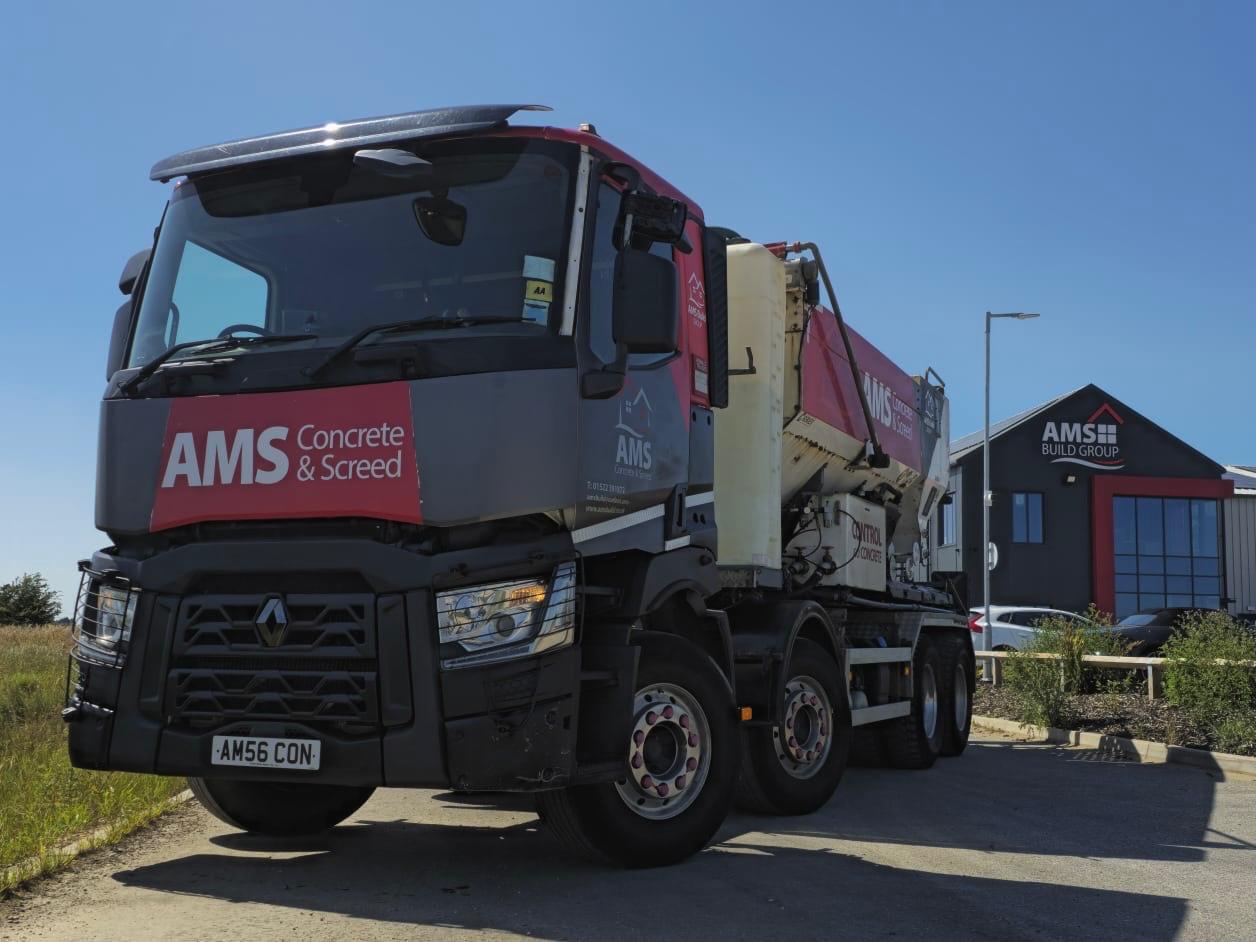

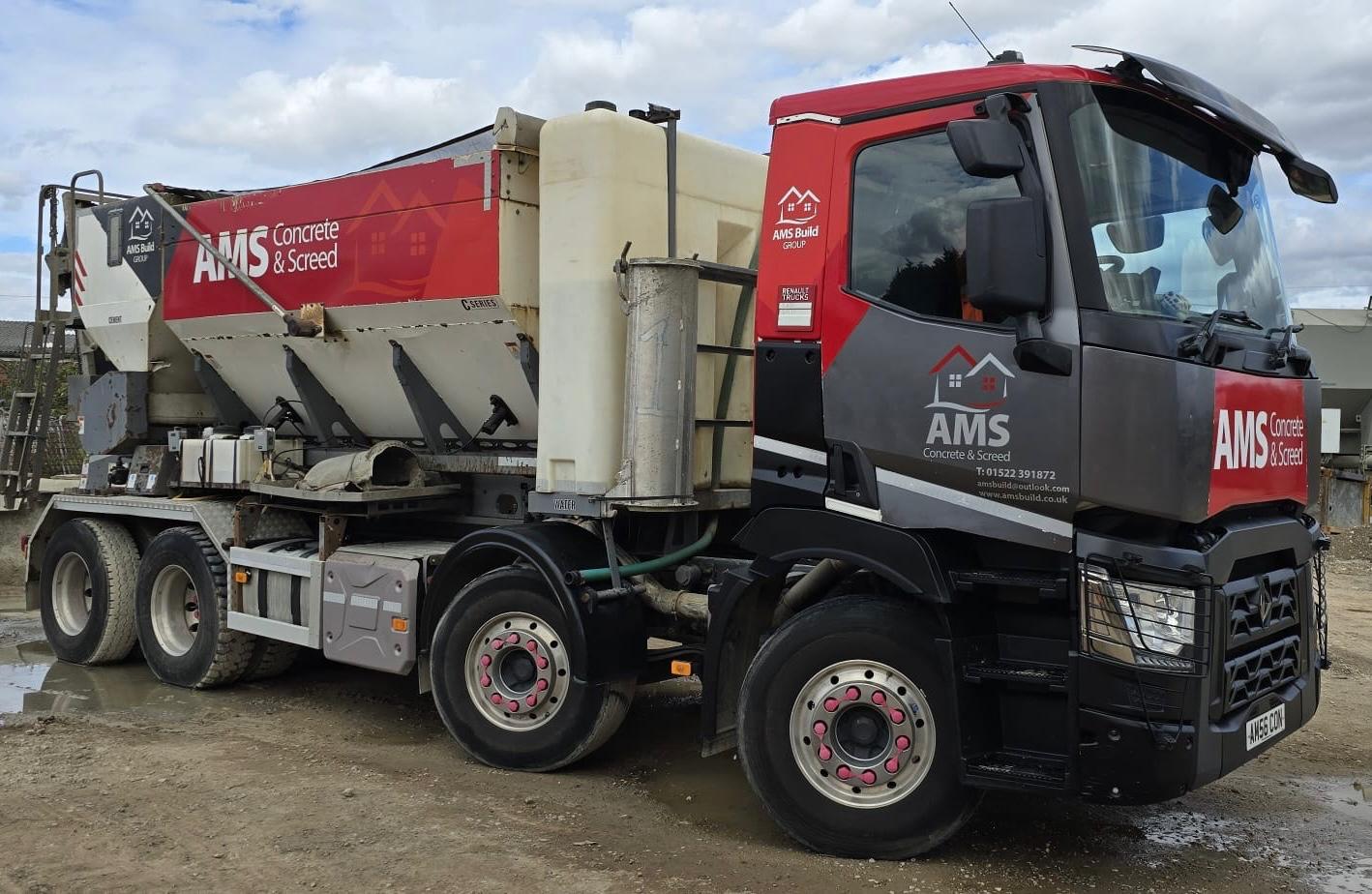

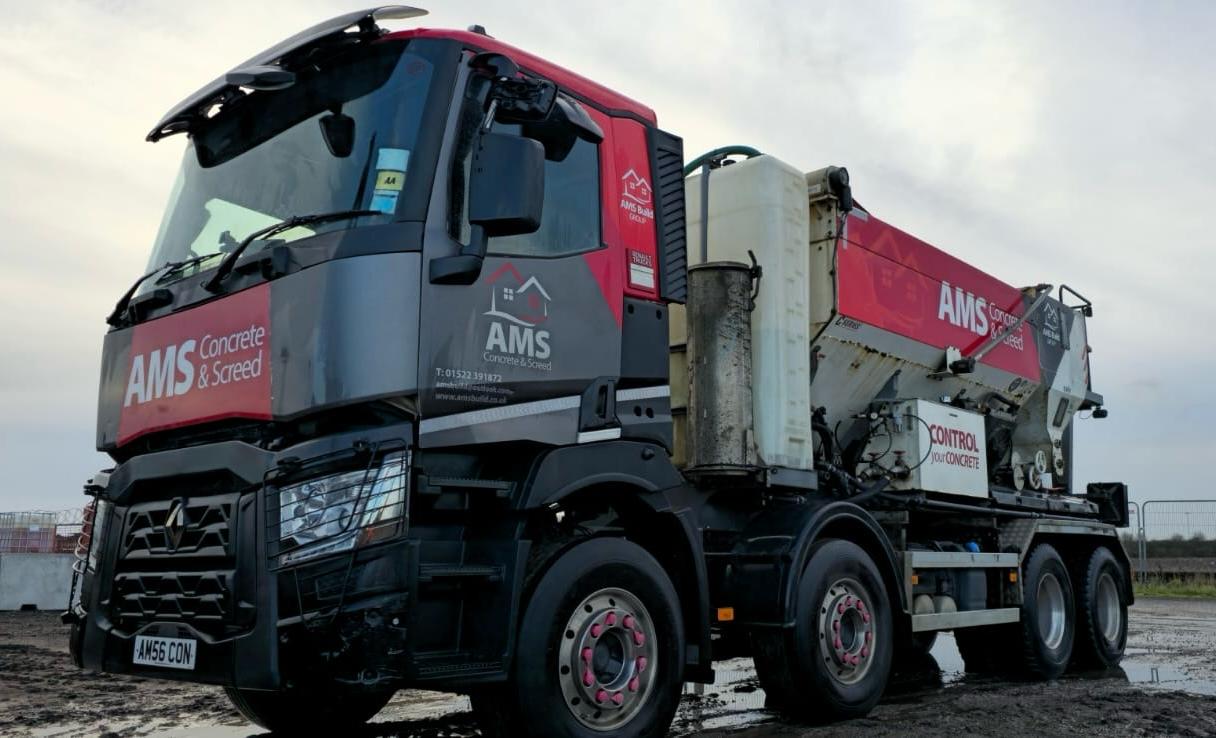

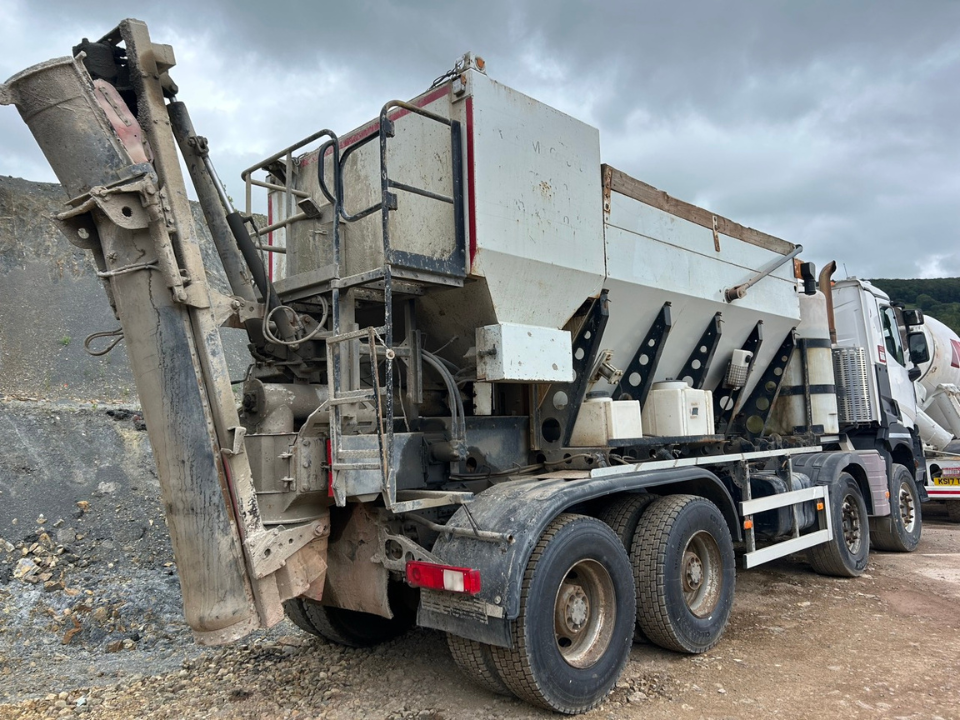

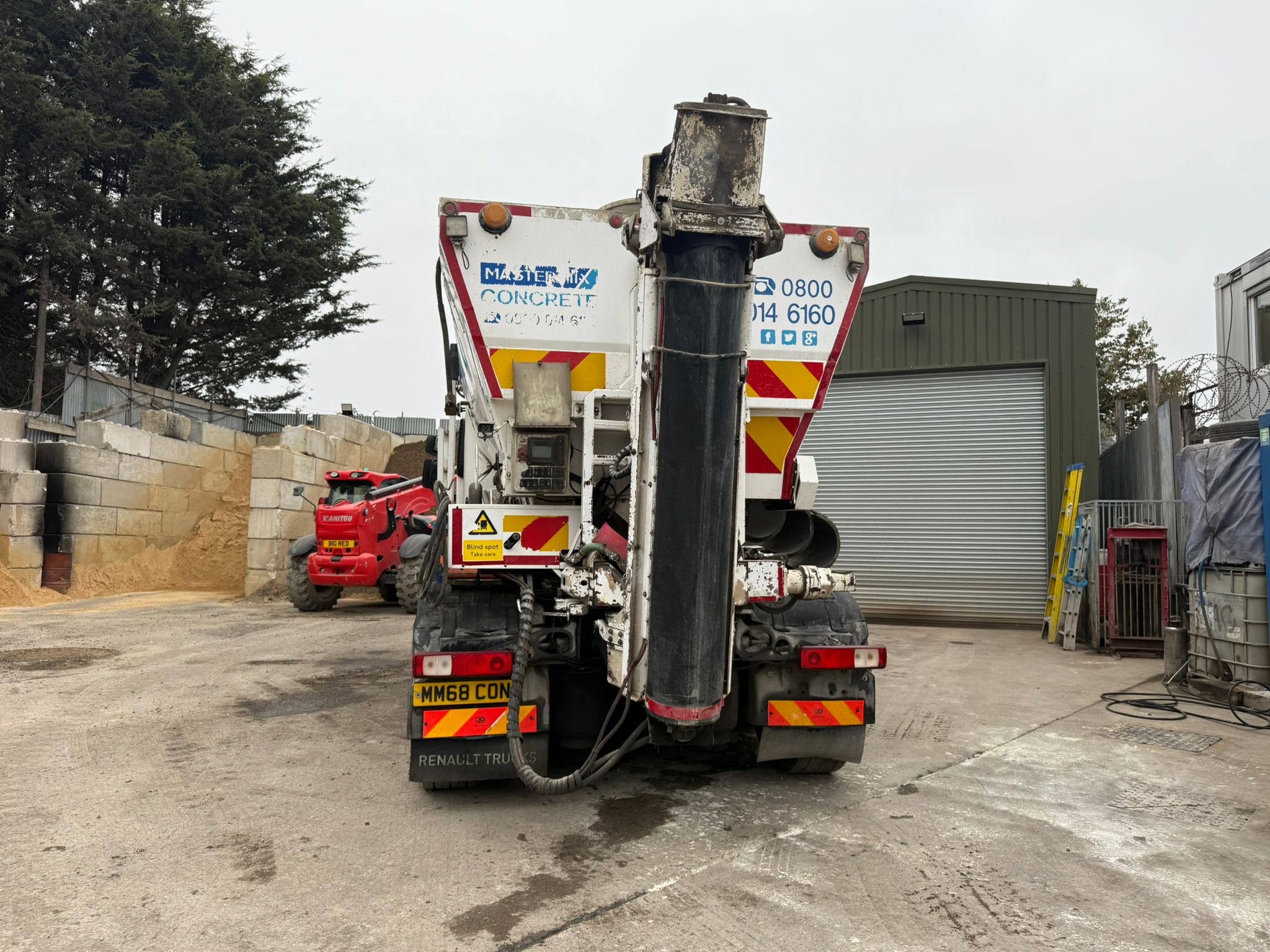

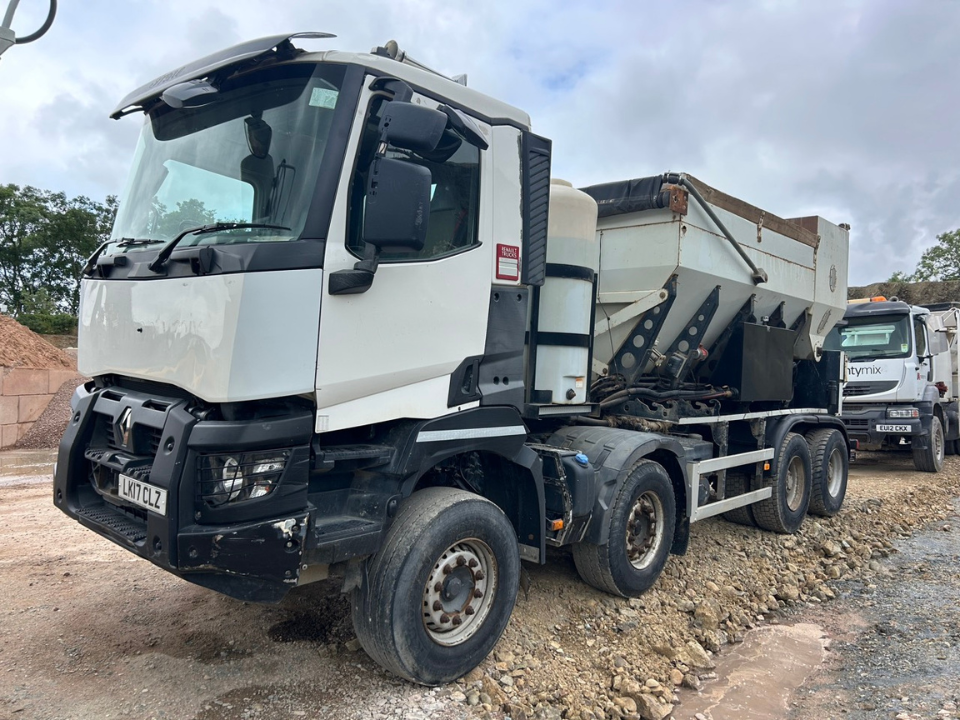

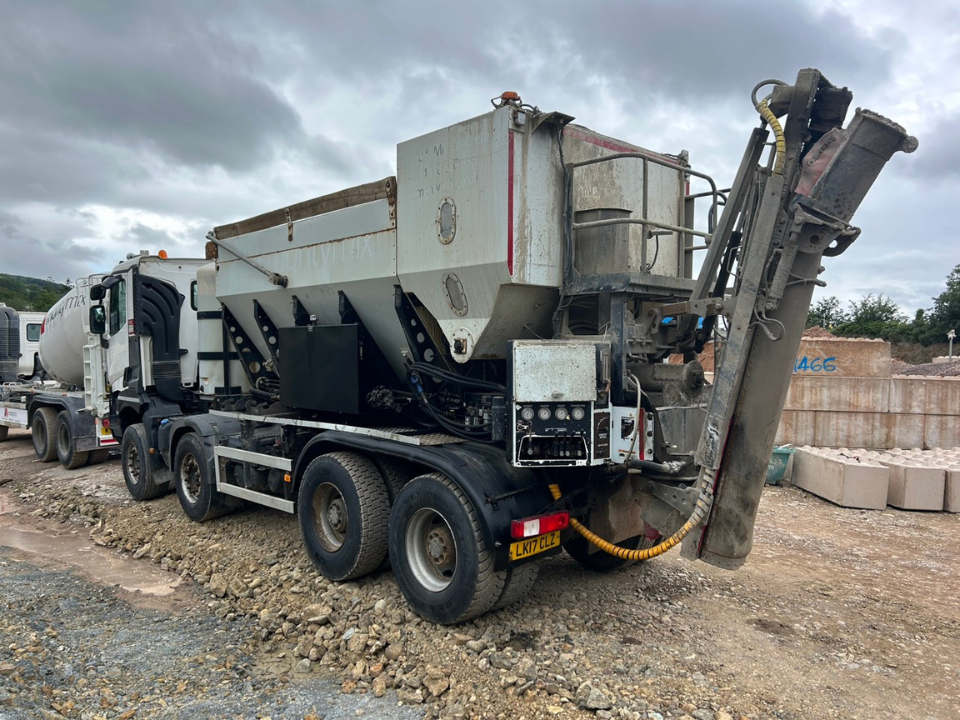

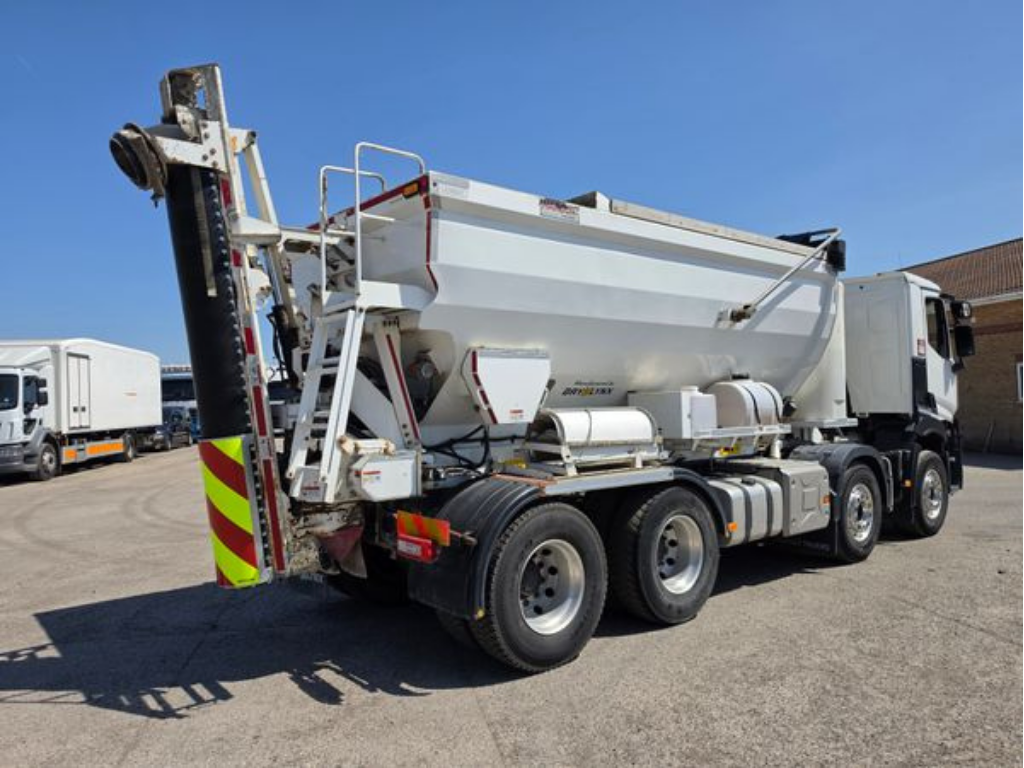

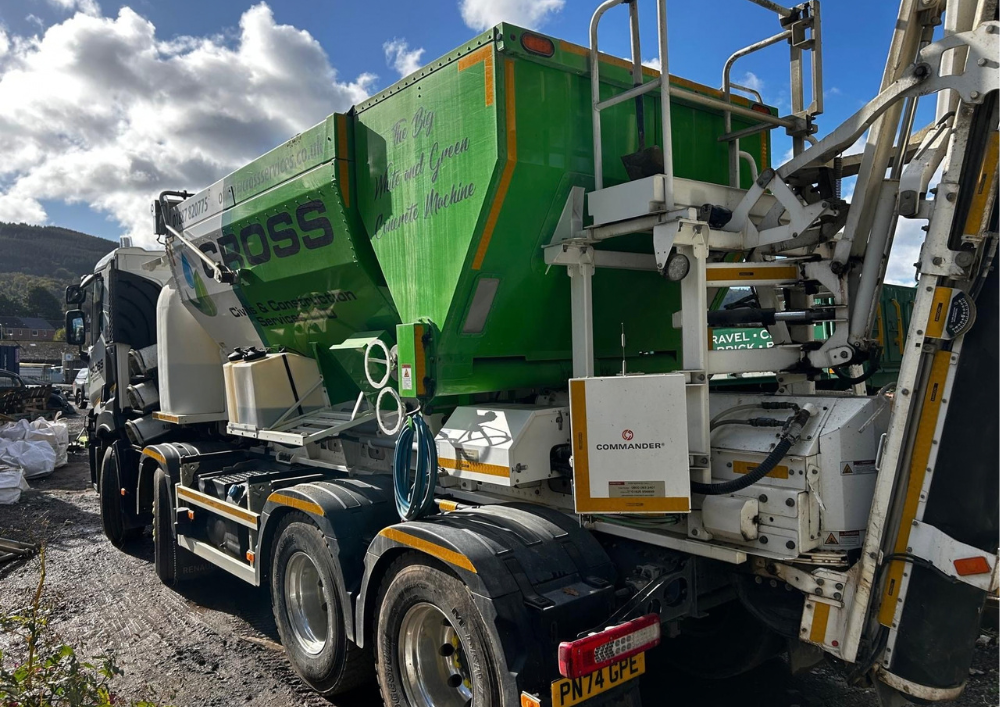

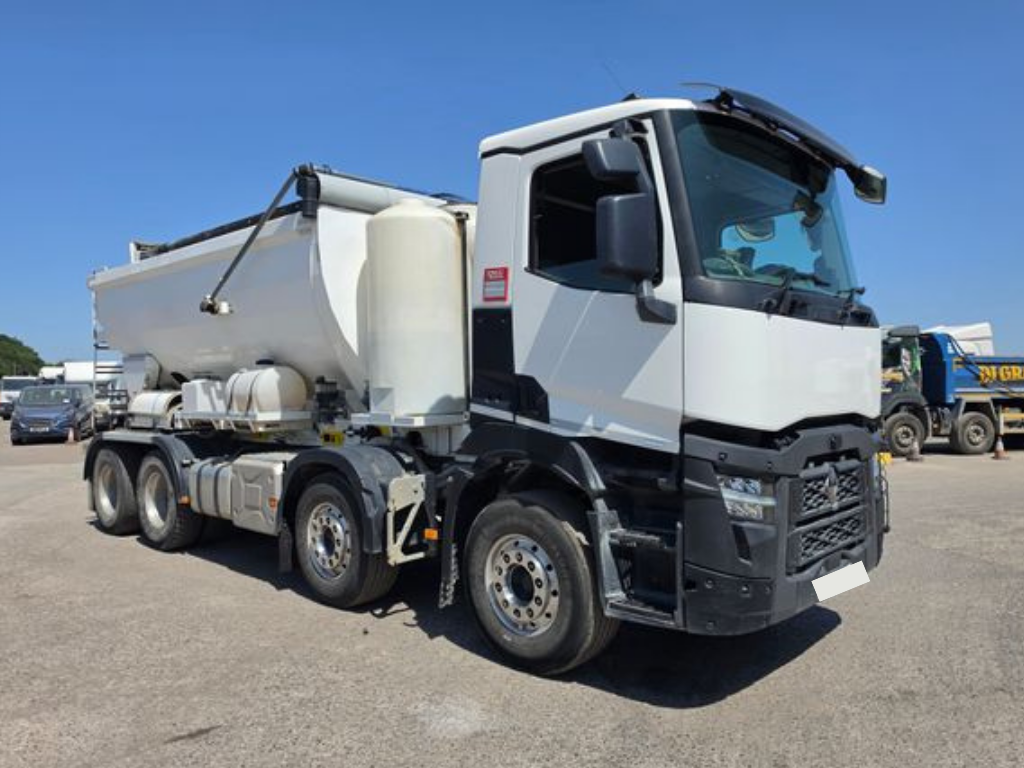

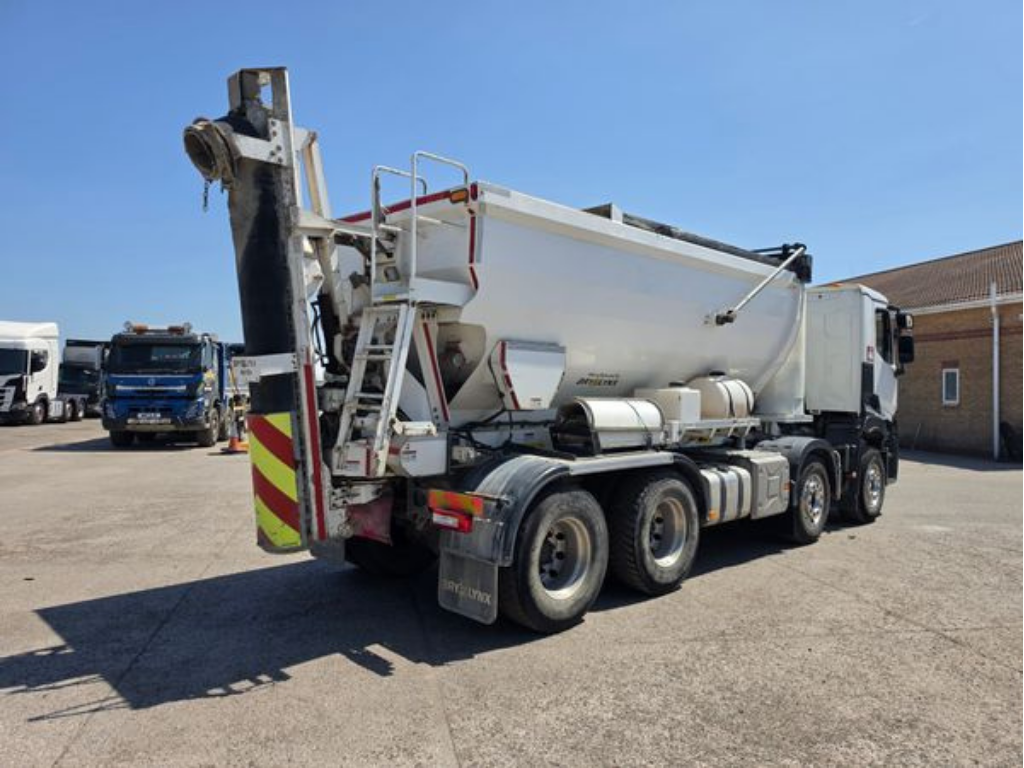

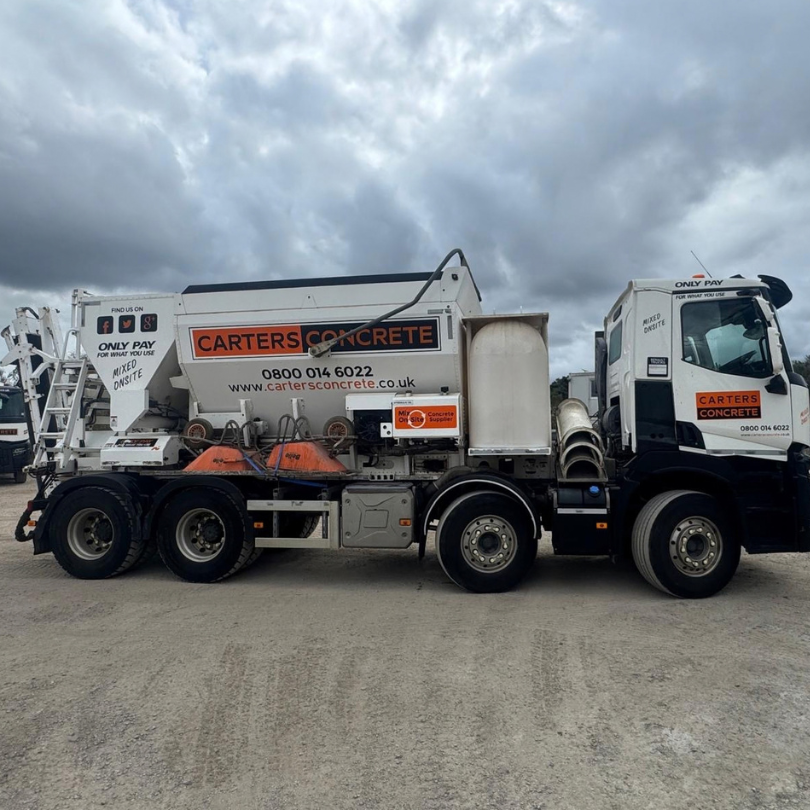

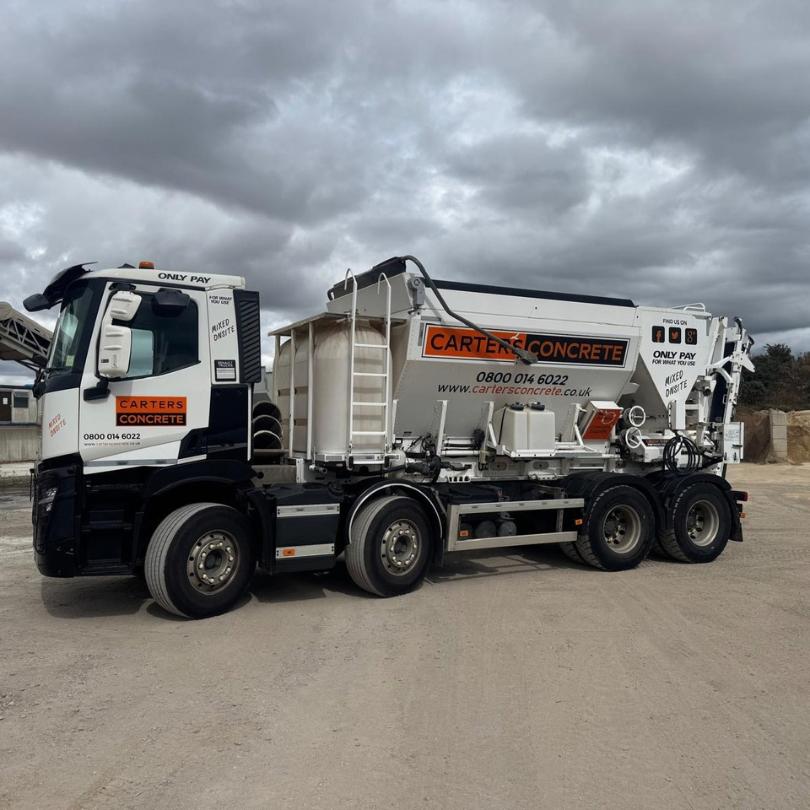

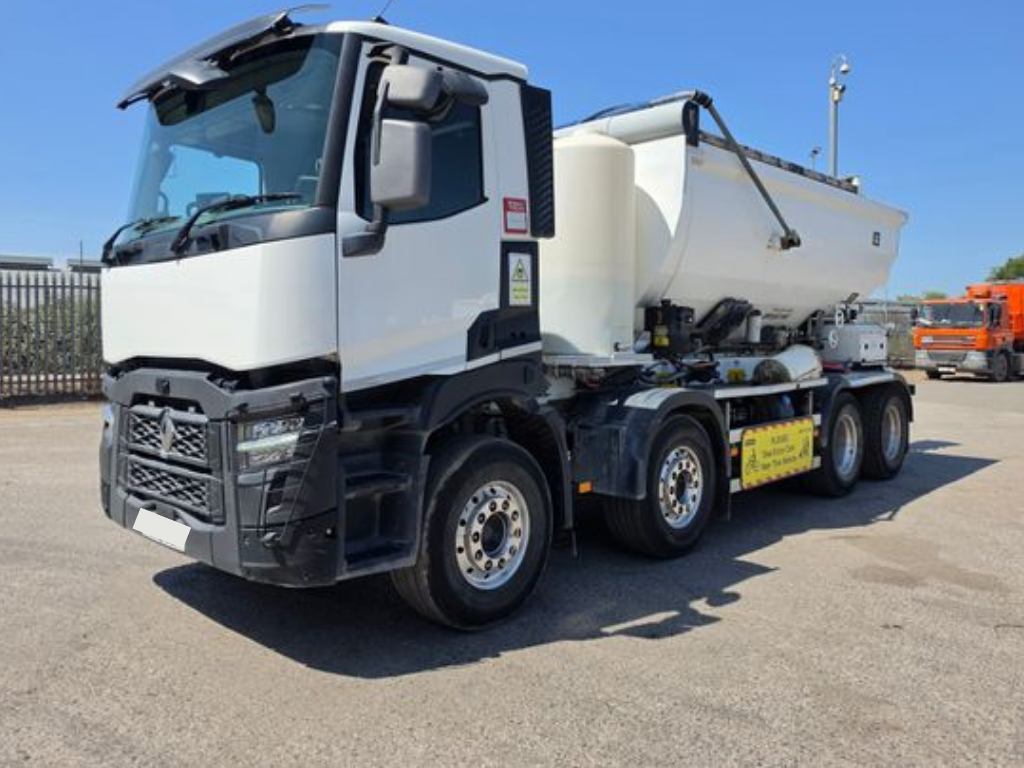

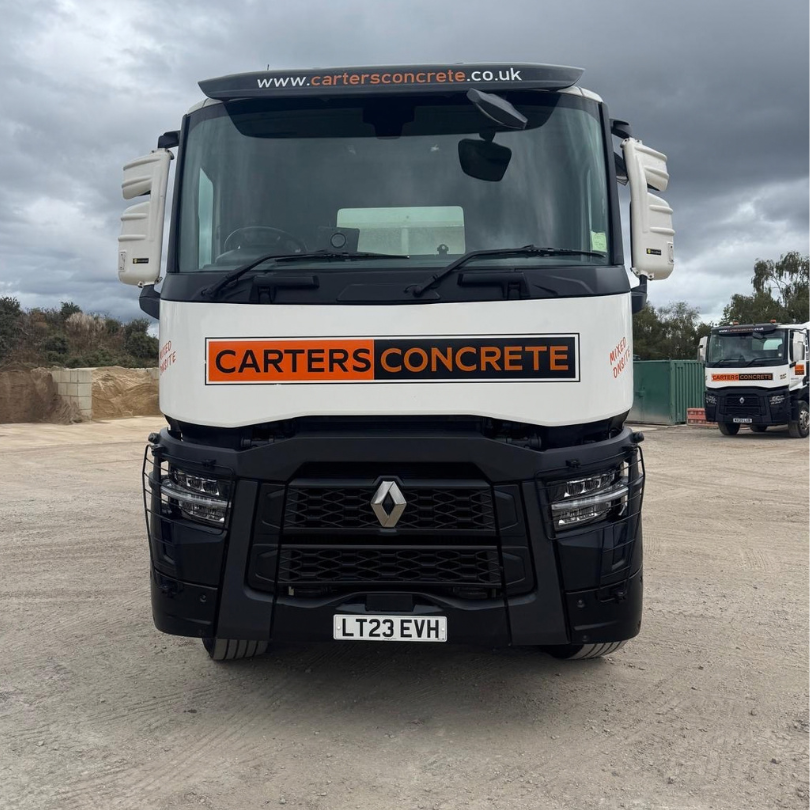

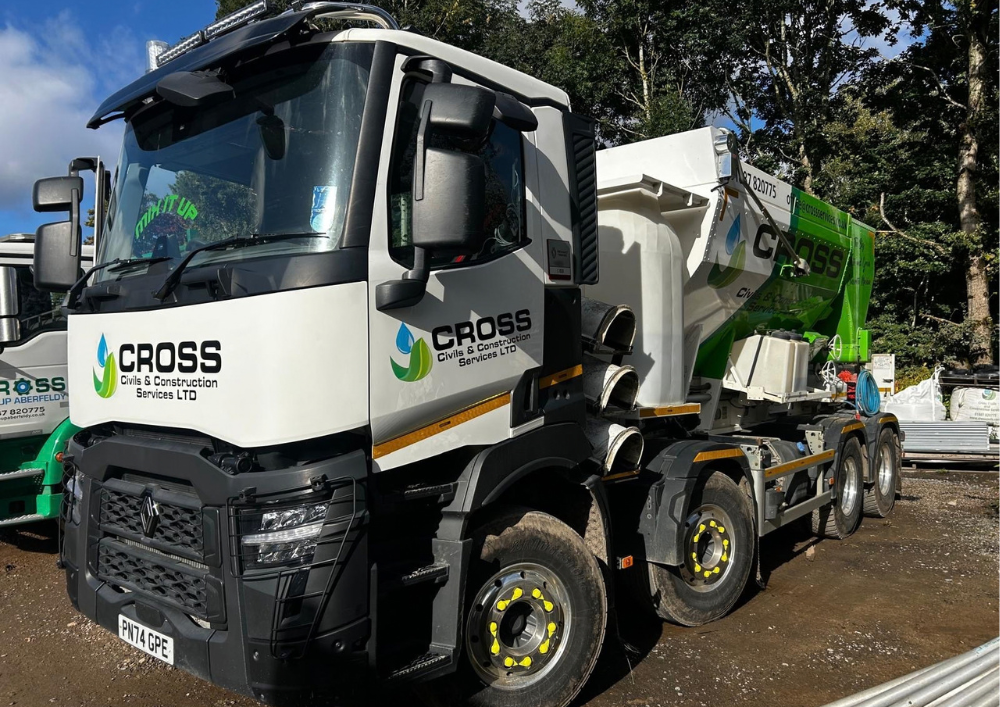

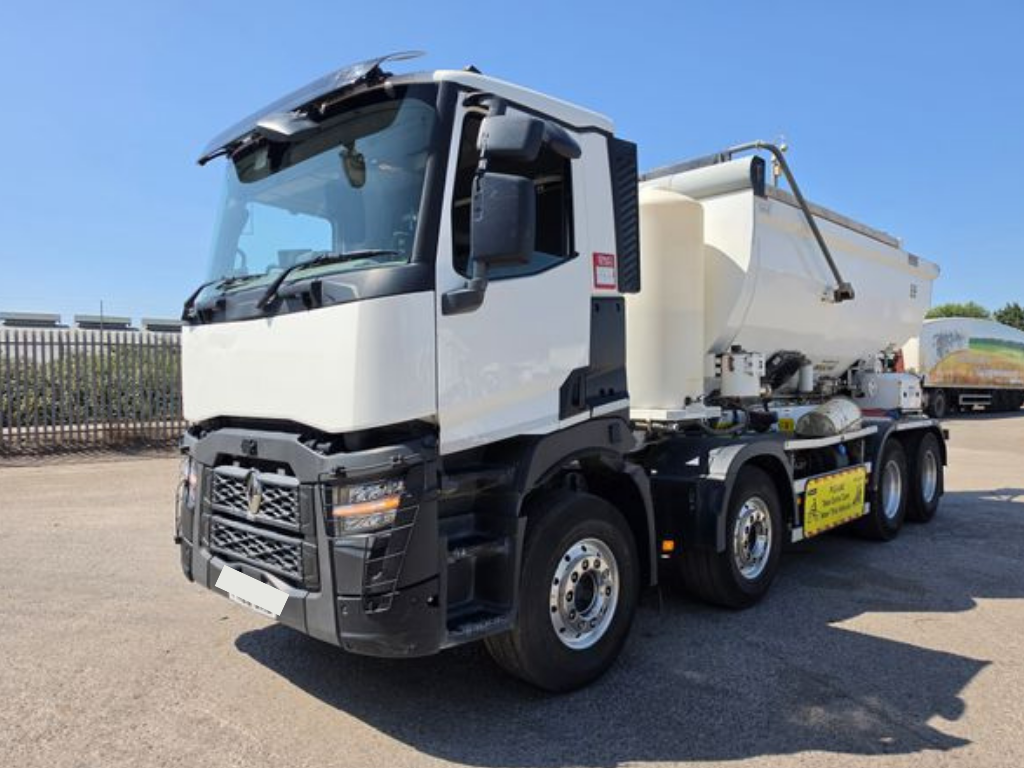

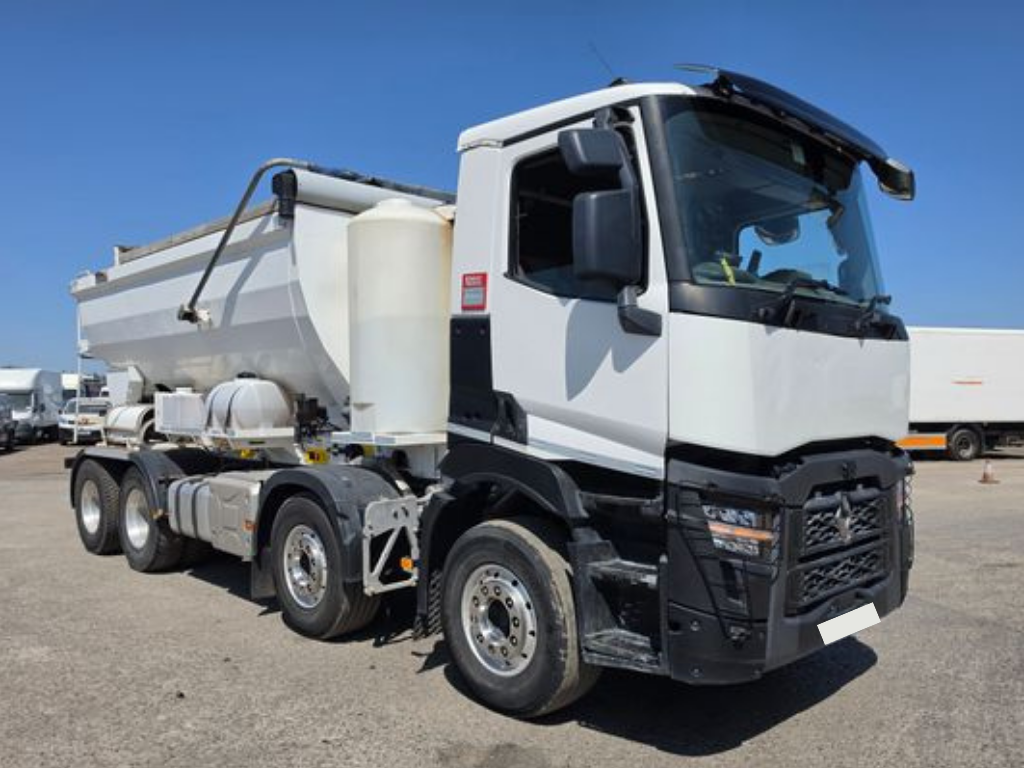

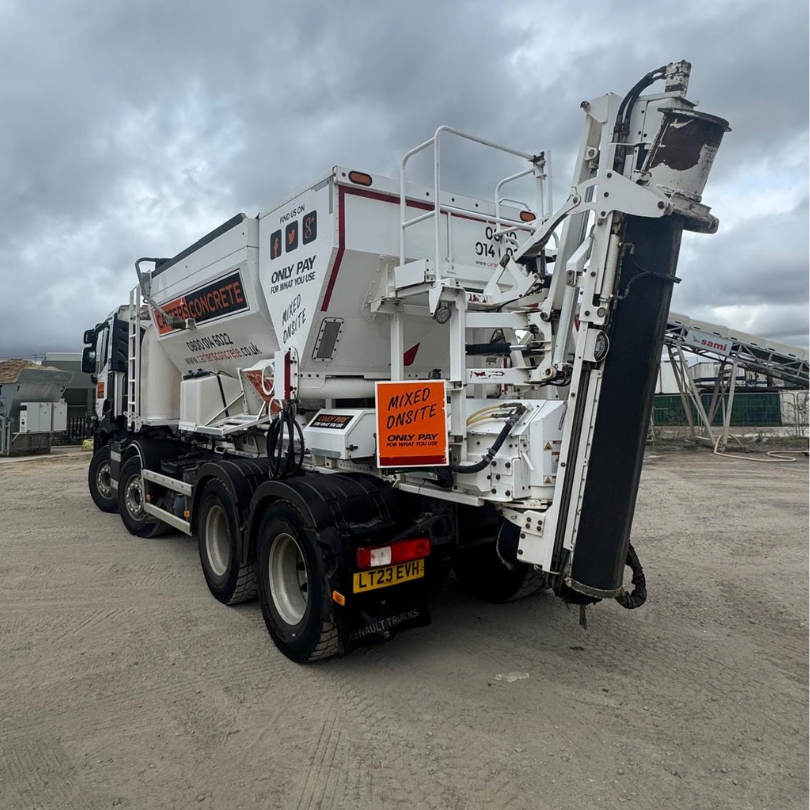

Used Mobile Volumetric Mixer

CEMENTECH, 2014

POA

3
1
2

Main Aggregate Bin

  • Storage for 9.9m³ of aggregate.
  • Central divider split 45%/55% to ensure even emptying of bin maximising use of aggregate load.

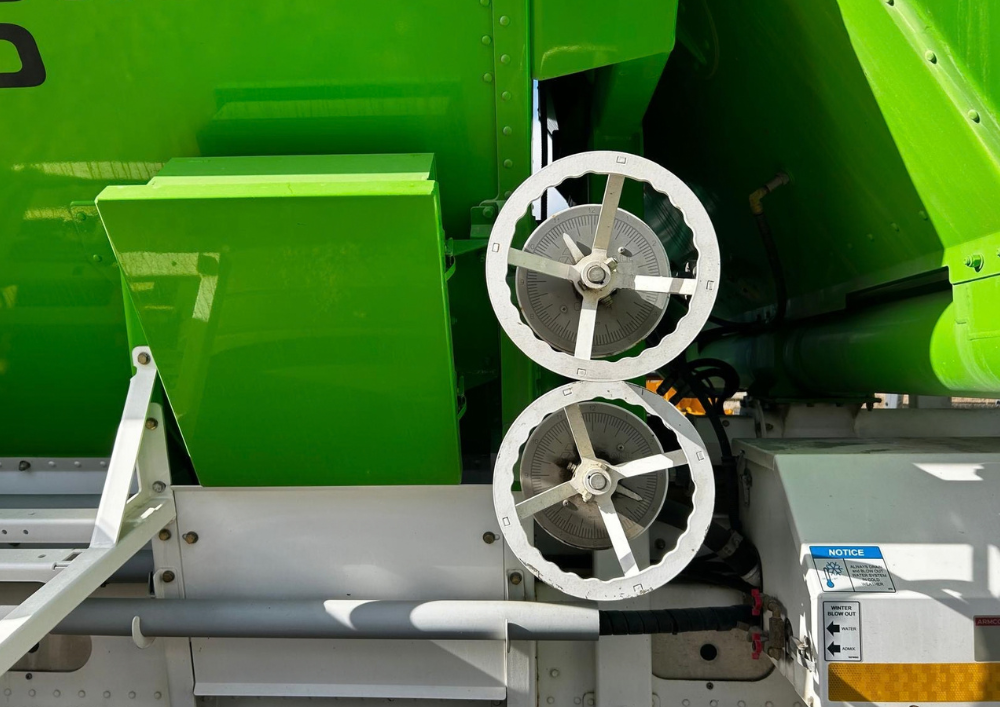

  • Dual calibrated gate controls, wheel operated for ease of use and control.

Cement Delivery System

  • Dual speed Accuvane cement system
  • Dual calibrated auger system to ensure accurate cement dosing to + or – 1%
  • Cement system vibration ensuring consistent flow of material
  • Cement bin lid to open towards rear of mixer
  • Lights housed in rear control panel to indicate cement speed (position high\low)

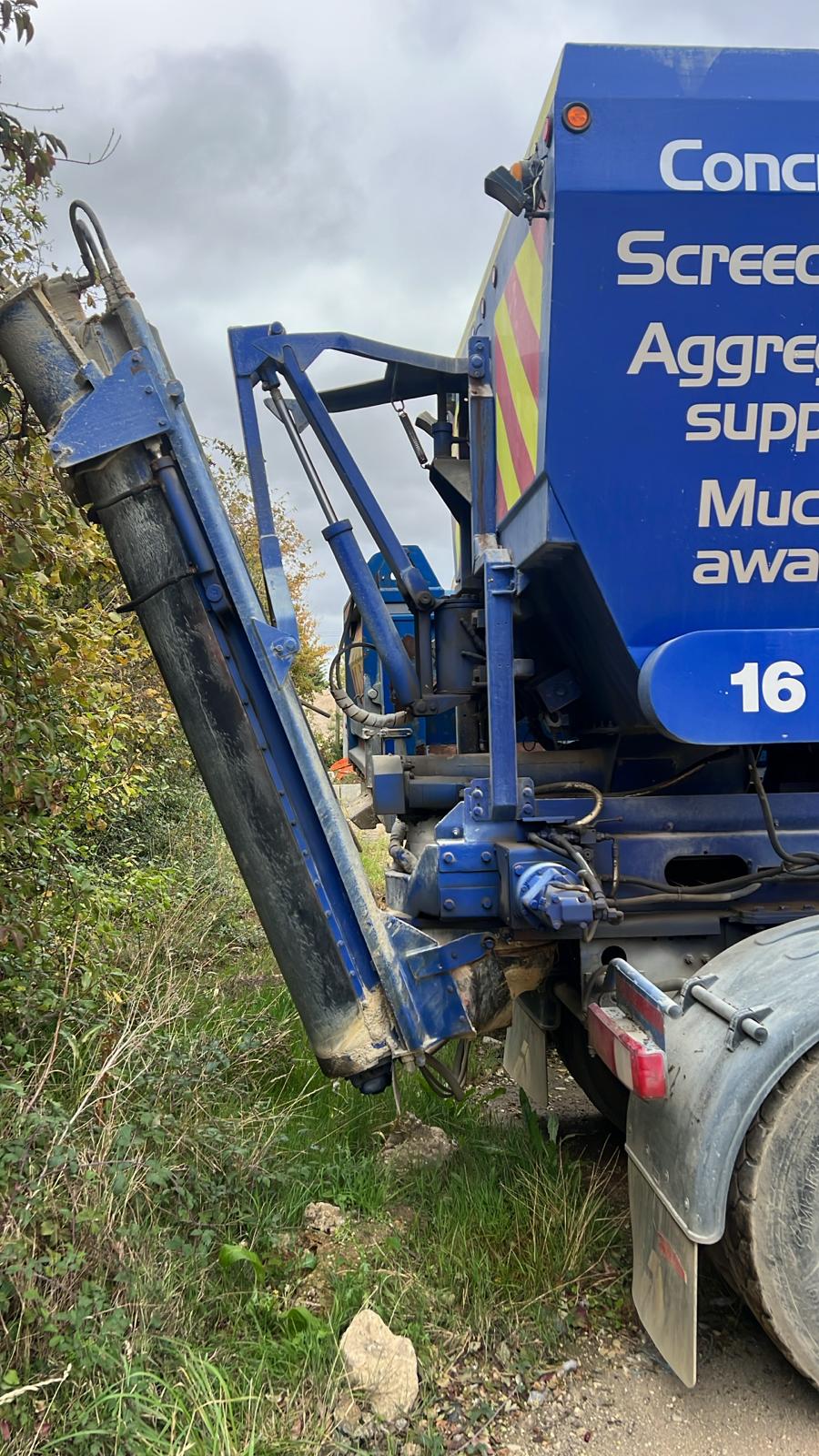

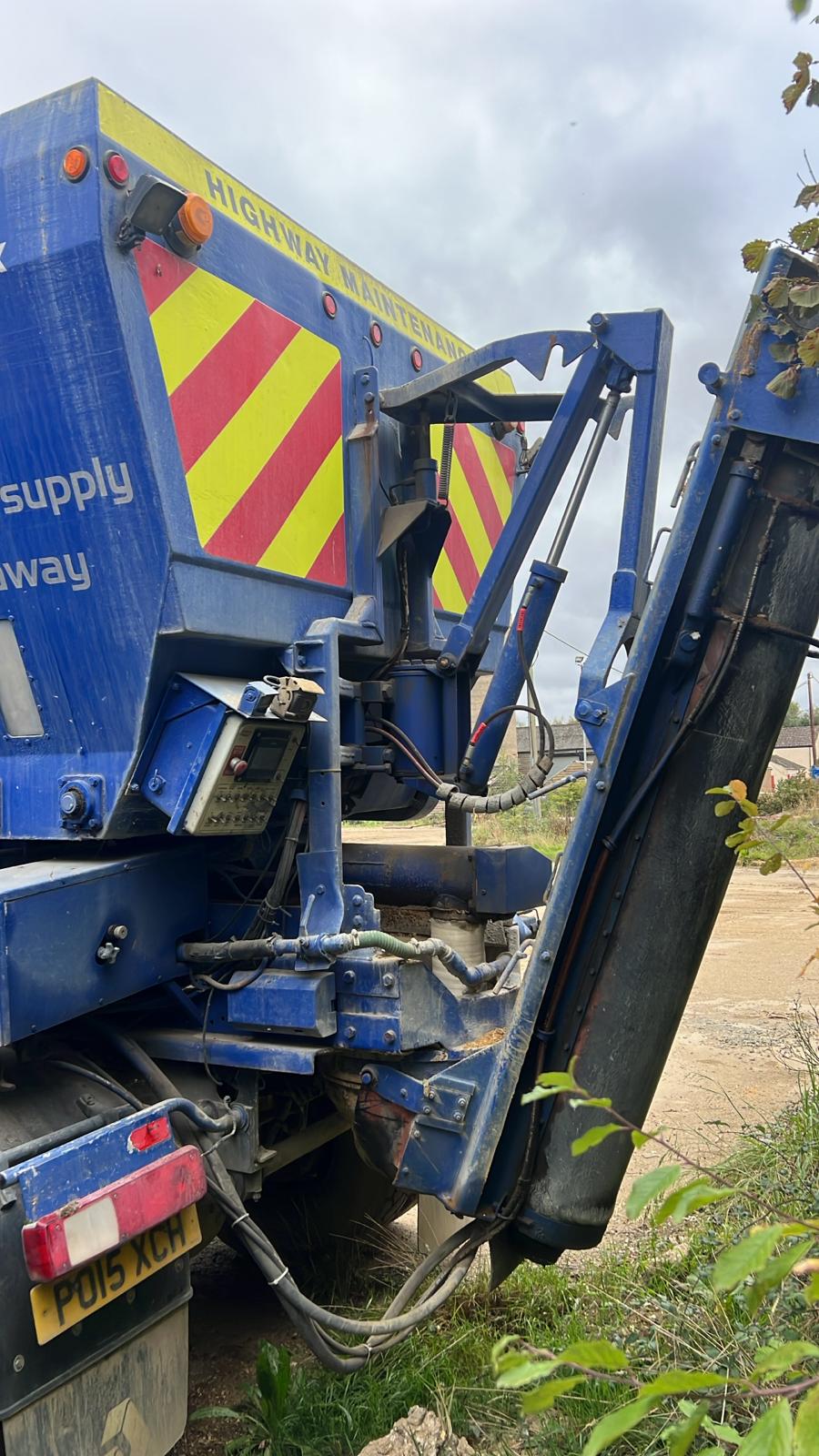

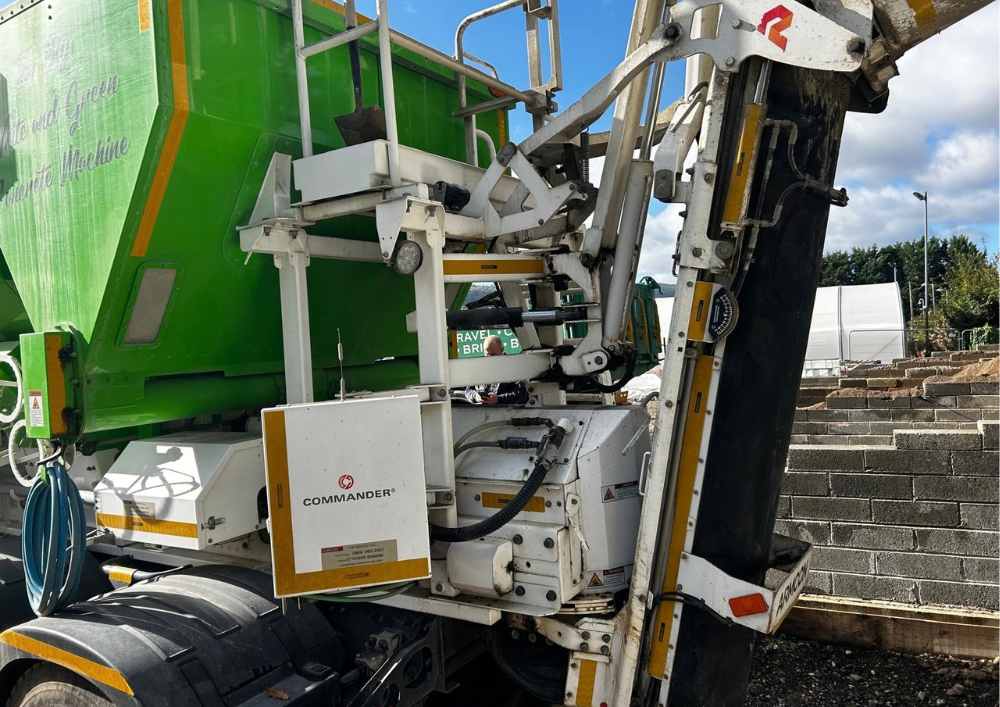

Mixer Assembly

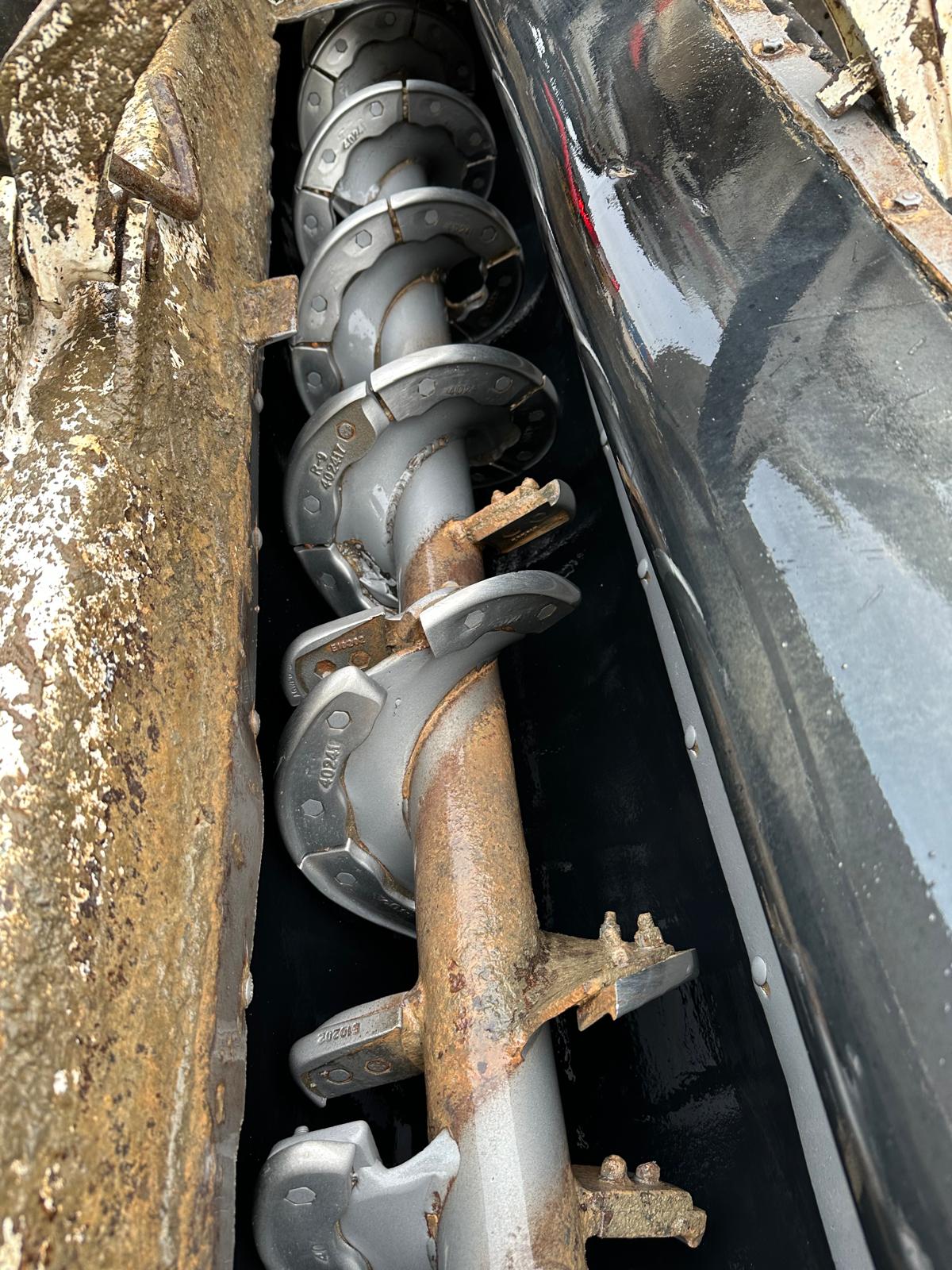

  • 9ft x 12” mixer auger slipform specification ensures thorough and accurate mixing of material and proven to reduce cement requirement
  • Hi sheer Ni hard™ wear blades for maximum life
  • Power swivel, hydraulically swings auger to each side for ease of operation

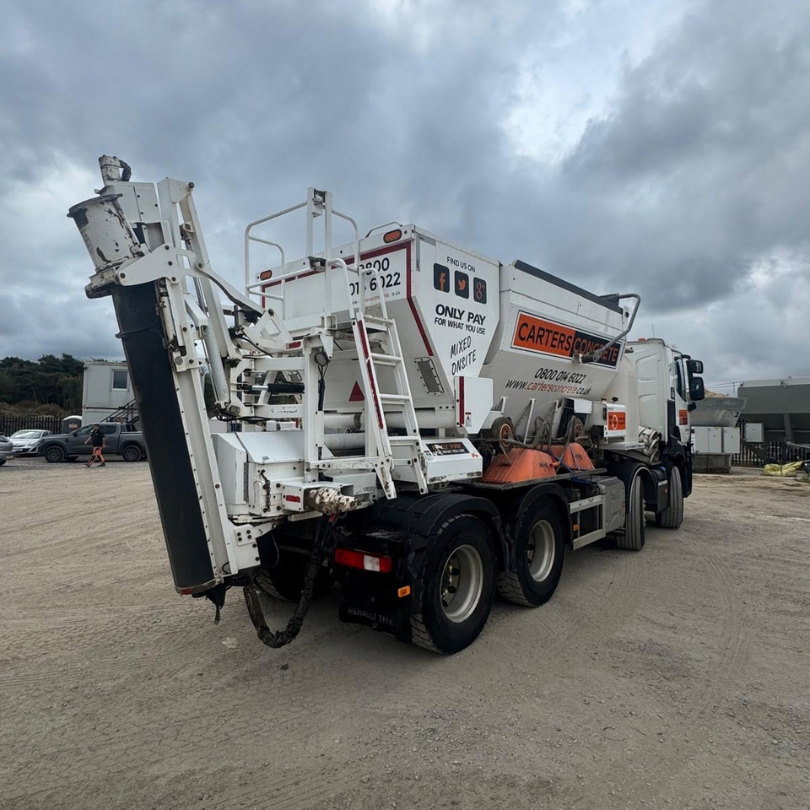

  • Discharge swivel chute, allows the concrete delivery chutes to circulate 360º from point of discharge making for easy placement of concrete

Vibration System

  • Fully automatic and programmable vibration system ensuring consistent flow from various types of materials.
  • Twin vibrators on sand storage bin.
  • Twin vibrator on cement storage tank.
  • Twin vibrator on stone storage bin.

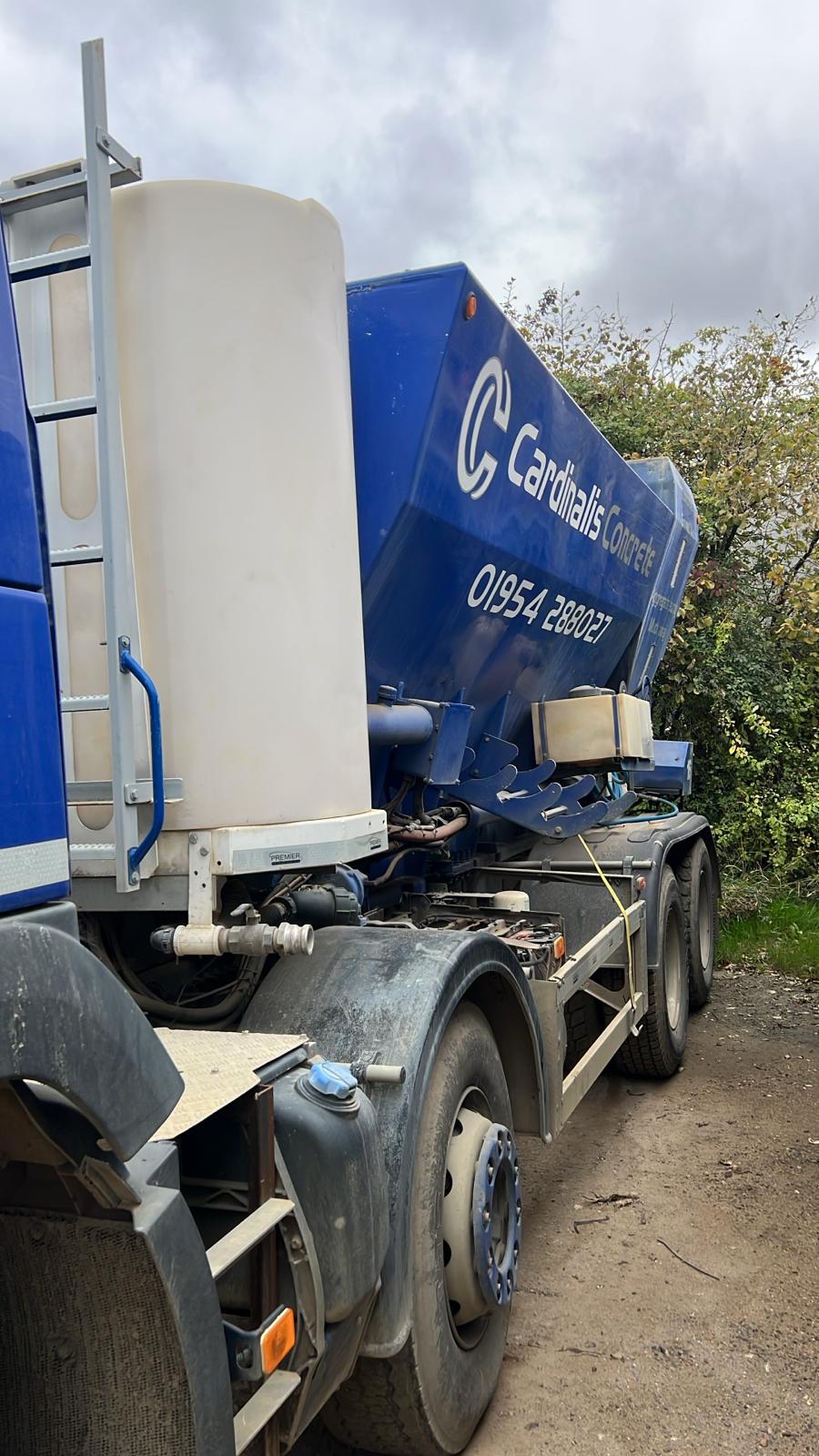

Water System

  • Large capacity water tank, 1900 litre translucent polyethylene tank. Includes integral baffles to prevent water surge when travelling.
  • Water meter gauge to ensure accurate dosing of water into mix.
  • Water drain off system, protects against frost damage.

Body Work & Construction

  • Heavy duty 3.5mm steel construction for maximum working life in place of the industry standard of 2.2 mm

Admixture & Additive Systems

  • 1 x liquid admixture system, standard rate (electric) injects from 0.25ltrs to 2.52ltrs of admixture per 100kg of cement.
  • Accurate flow meter gauges to ensure correct dosing of admixtures

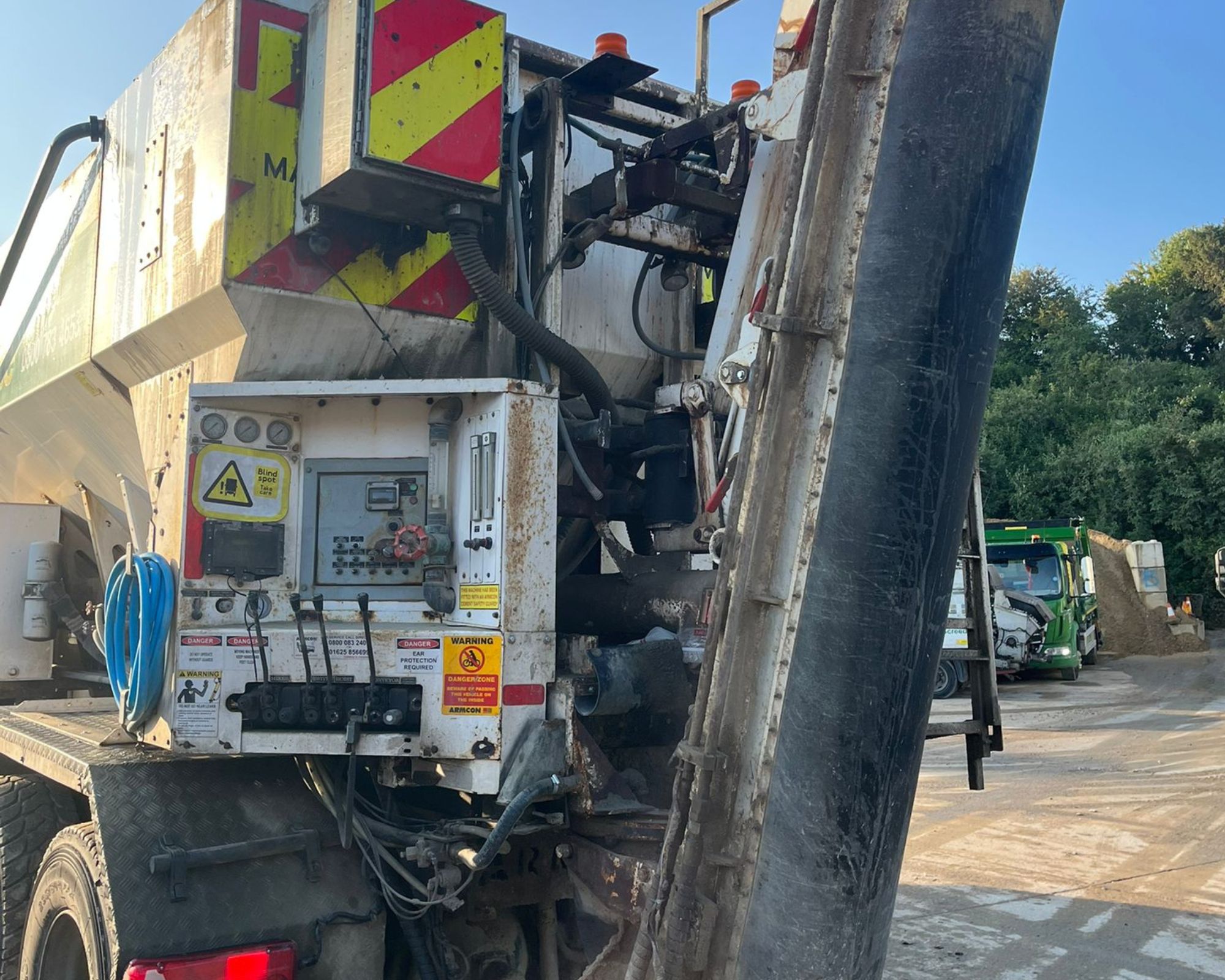

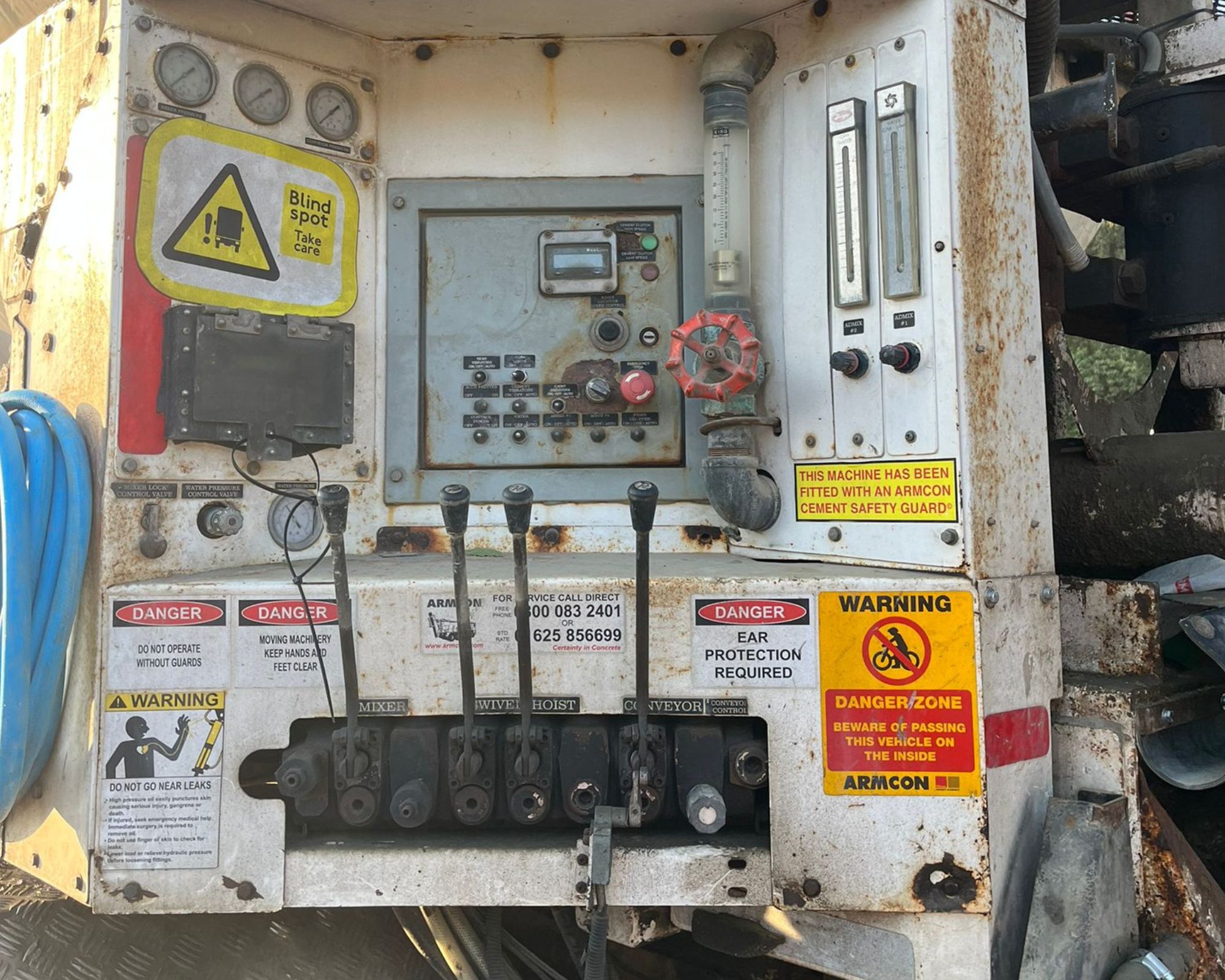

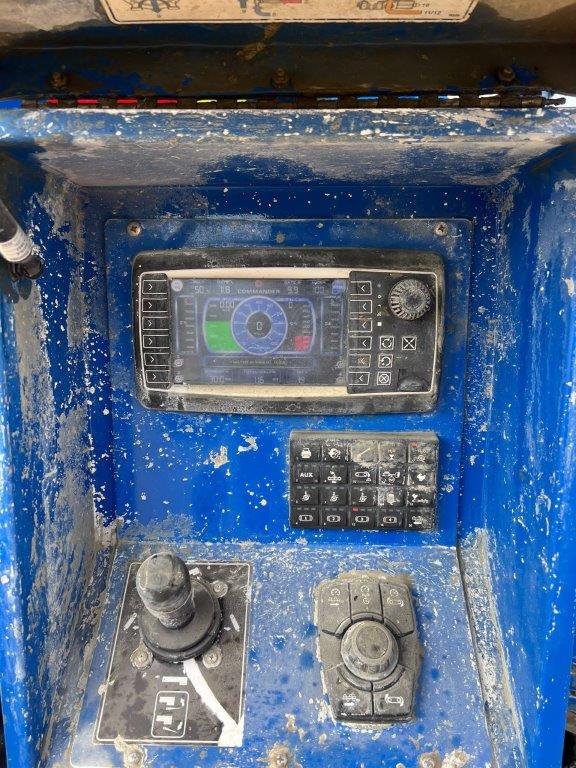

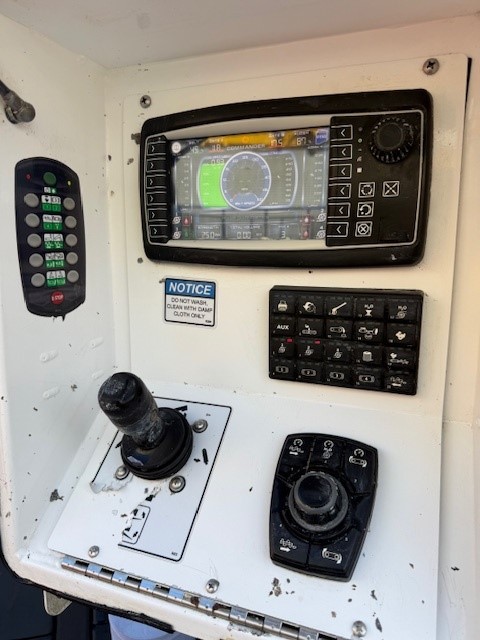

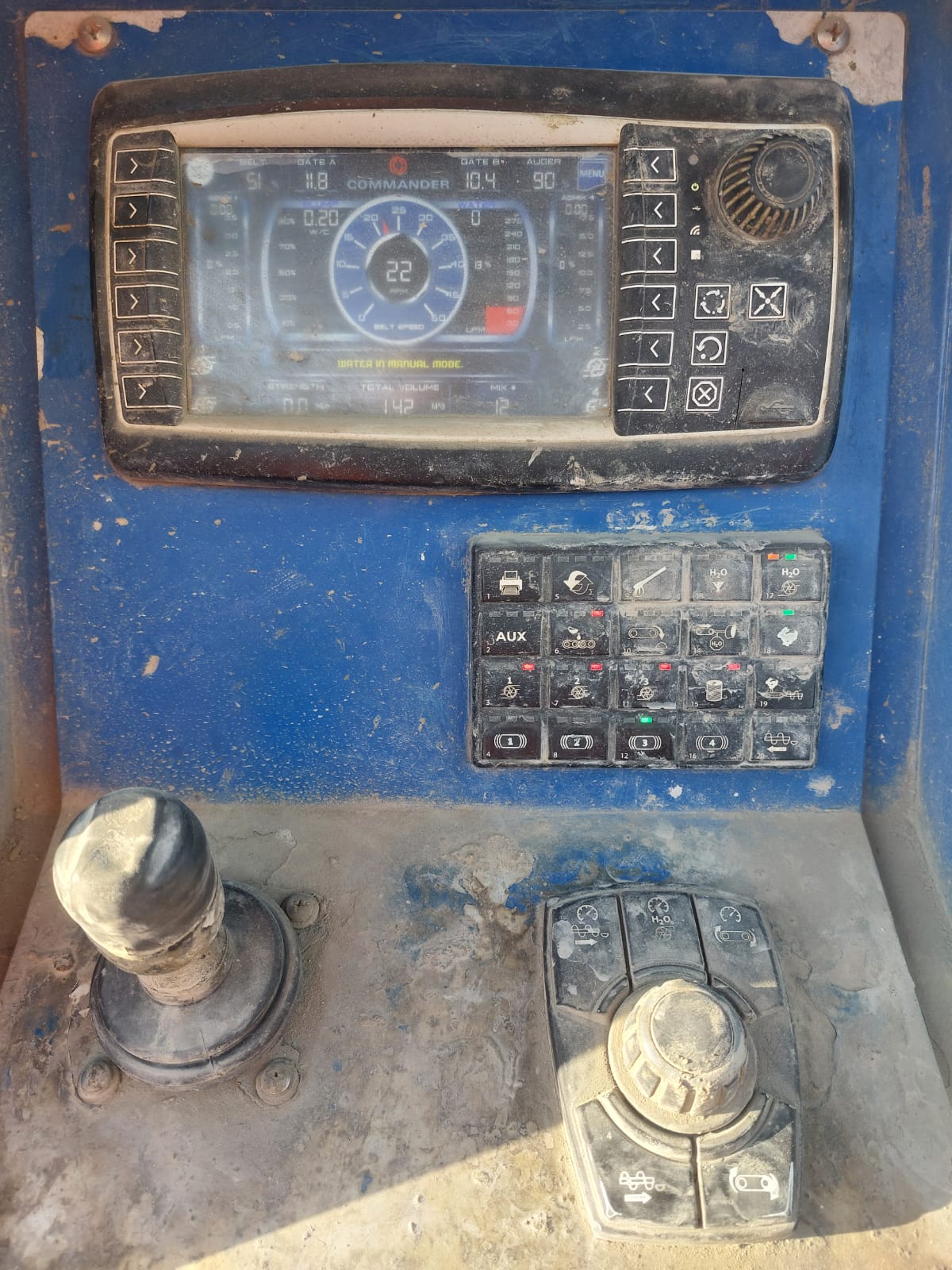

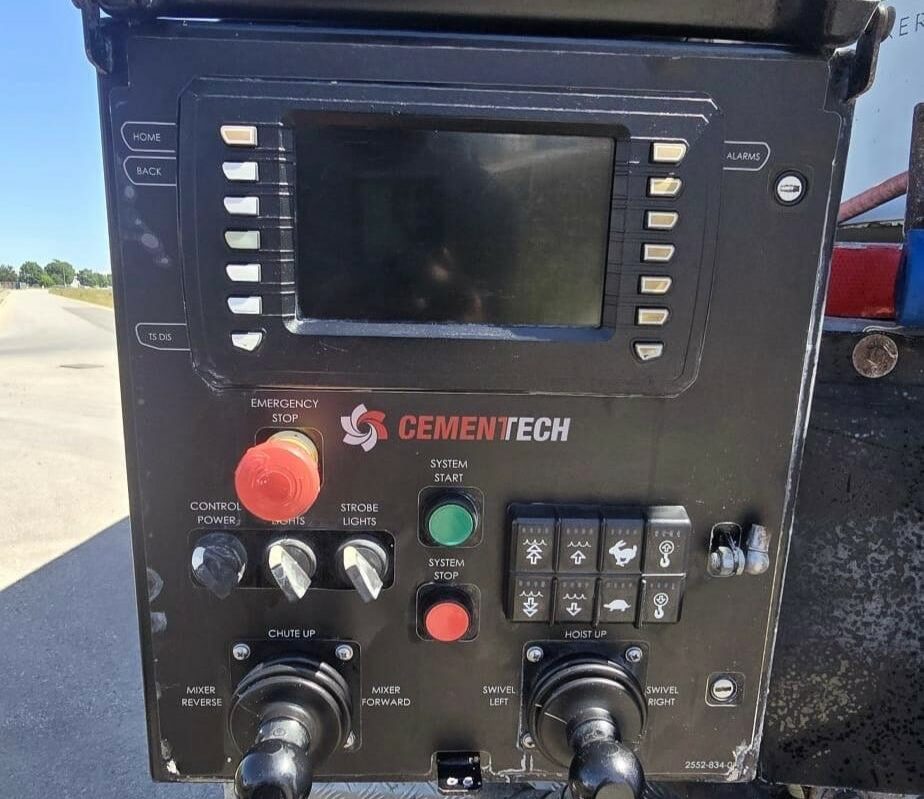

Control & Recording System

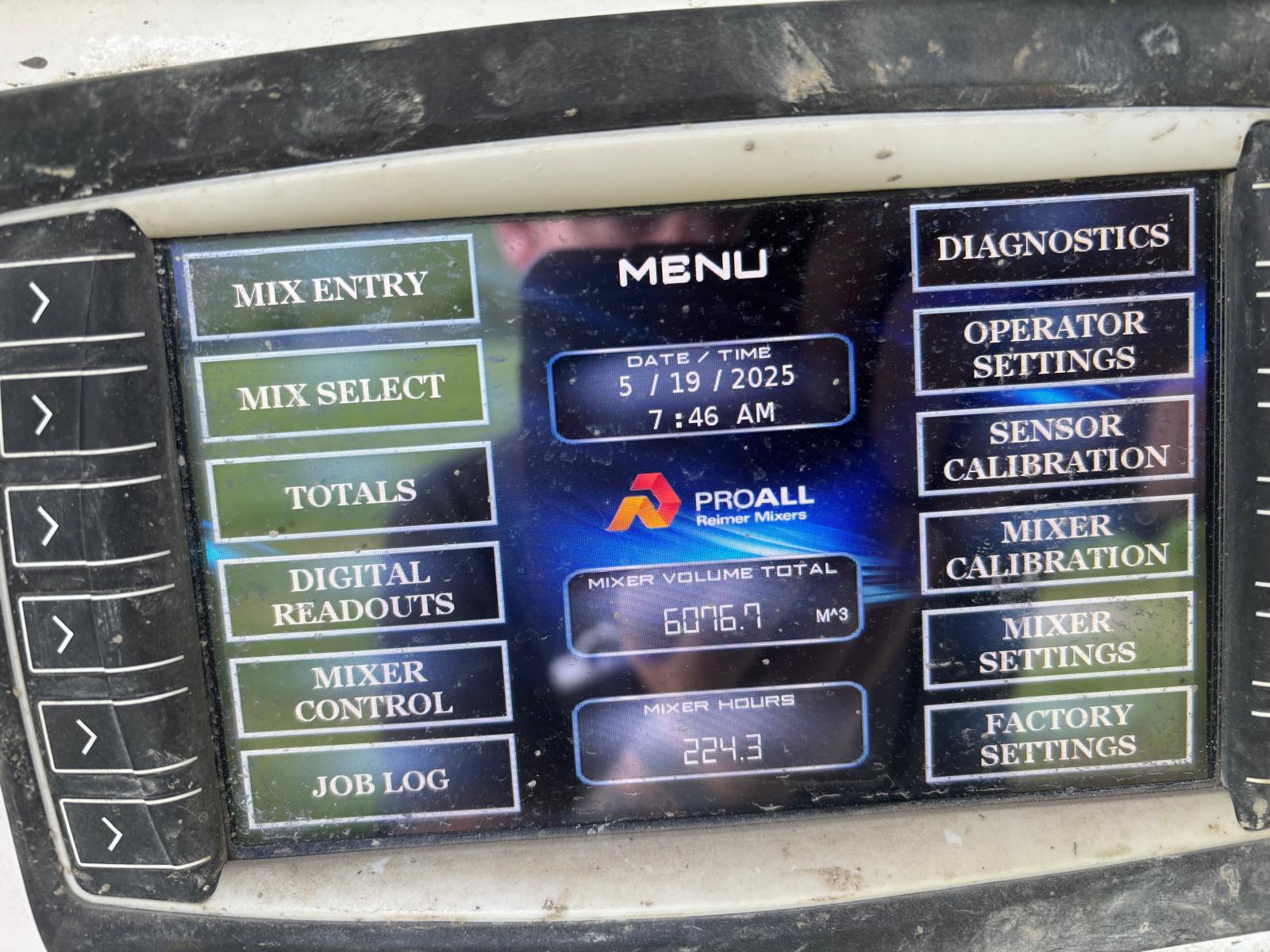

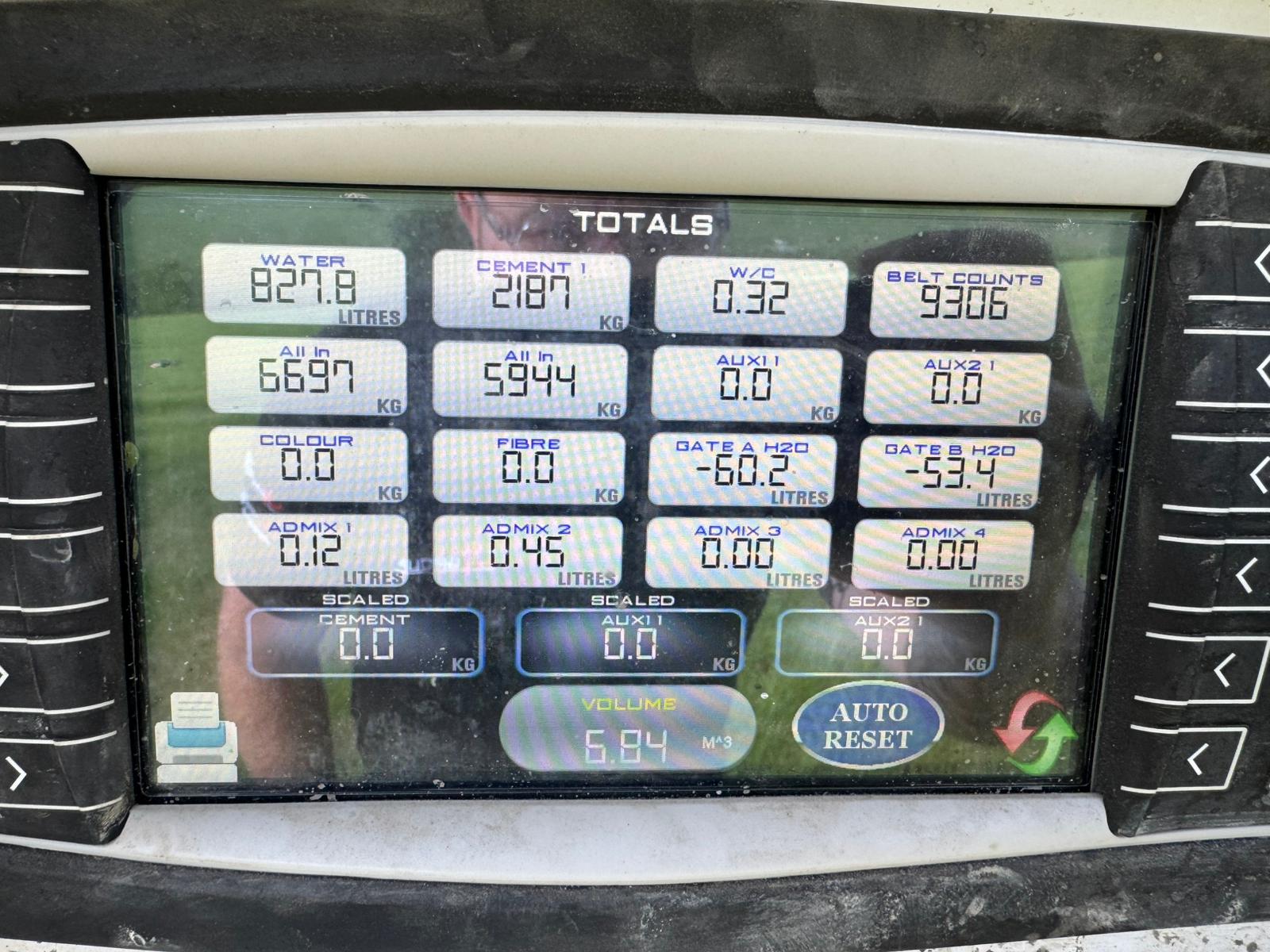

  • PLC computer system stores mix designs & gate settings for ease of operation and changing between mix designs.
  • Digital ticket printer prints delivery ticket on demand with quantity delivered, materials used vehicle reg., company information & water record

Safety

  • Emergency stop, stops all mixer actions
  • Mixer safety cut out system, stops mixer if auger lid is opened.
  • Ladder mounted to water tank frame with walk plate on top

Hydraulic System

  • High capacity hydraulic system featuring rugged fixed displacement cast iron gear pumps and motors for maximum reliability.
  • All hoses and valves sized for optimum oil flow to minimise heat build-up and maintain maximum efficiency under extreme conditions.
  • Full flow filters ensure complete protection for all components and pressure gauges allow operator to monitor performance of all mixing functions.

Used Static Mixer

6M-100 CemenTech Static, completely remanufactured by Armcon 2020

POA

4
5

Specification Includes:

  • 415V Electric
  • 9” Auger
  • Manual Swivel
  • New complete conveyor assembly
  • Two button counter
  • 1600ltr capacity water system
  • Compressor
  • Admix System
  • Mixer safety cut off
  • Safety hand rails and ladder
  • Vibrators – Sand & Cement
  • Circa 20 Cubic M per hour

4M-100 CemenTech – completely remanufactured by Armcon 2021

POA

7
6

Specification Includes:

  • 415V Electric
  • New 9” Auger
  • New complete conveyor assembly
  • Two button counter
  • 1000ltr capacity water system
  • Compressor
  • Admix System
  • Mixer safety cut off
  • Safety handrails and ladder
  • Vibrators – Sand & Cement
  • Circa 20 Cubic M per hour
