MEKA
Batching Plants
Static and compact concrete batching plant solutions, supplied and supported by Armcon across the UK.
Request a QuoteEngineered to Perform
MEKA batching plants combine proven global engineering with reliable production performance, supported in the UK by Armcon.
Proven Worldwide
Trusted by producers across multiple industries, applications and continents.
Robust Construction
Designed for demanding environments and built for long service life.
Production Efficiency
Reliable, accurate and consistent concrete production for busy operations.
Supported by Armcon
Backed by technical guidance, genuine parts and UK-based support.
Find the Right Plant for Your Operation
From compact installations to high-capacity production facilities, discover the MEKA batching plant designed for your project.

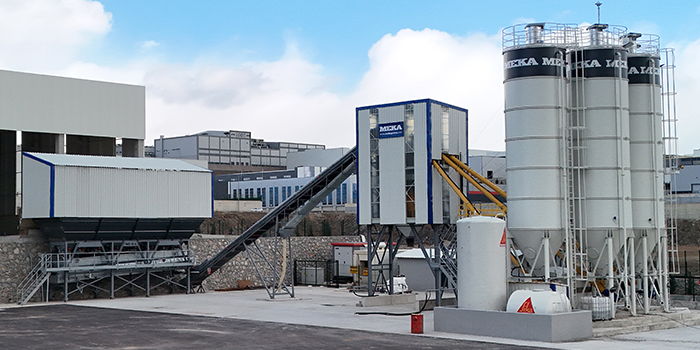

Stationary Plant
Built for Maximum Production
MEKA stationary concrete batching plants are built for high-capacity concrete production, long working hours and demanding commercial, infrastructure and precast applications.

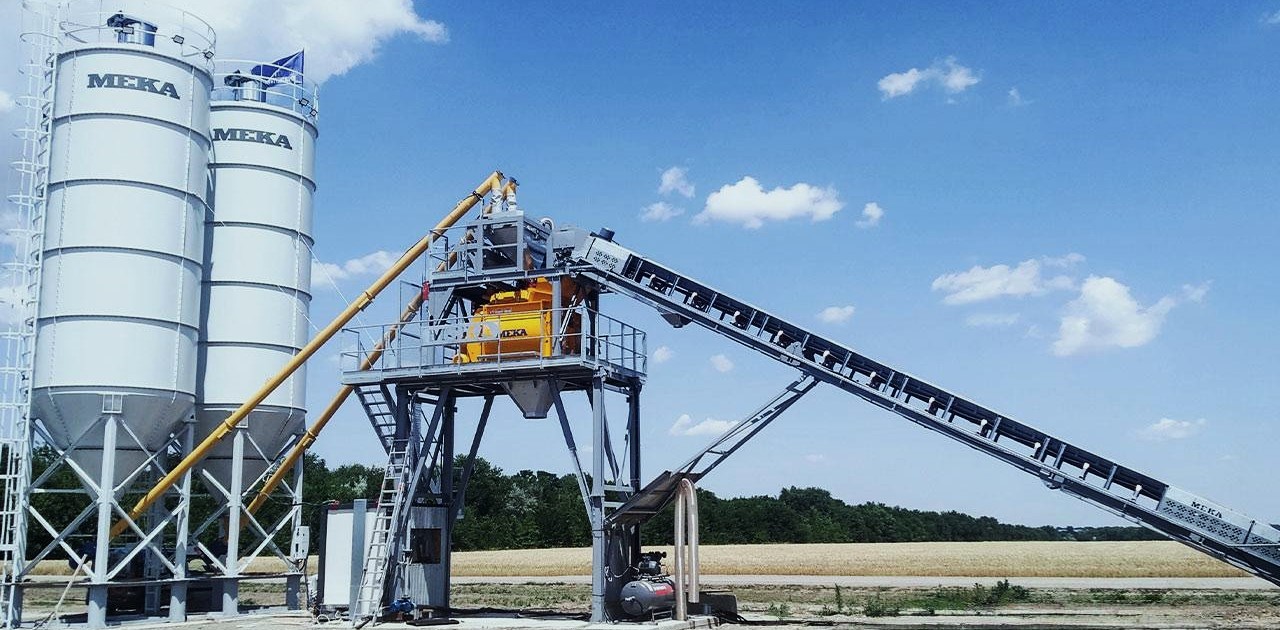

Compact Plant
Maximum Performance. Minimal Footprint.
MEKA compact concrete batching plants are designed for tight sites, offering flexible, durable and efficient concrete production where space is limited.

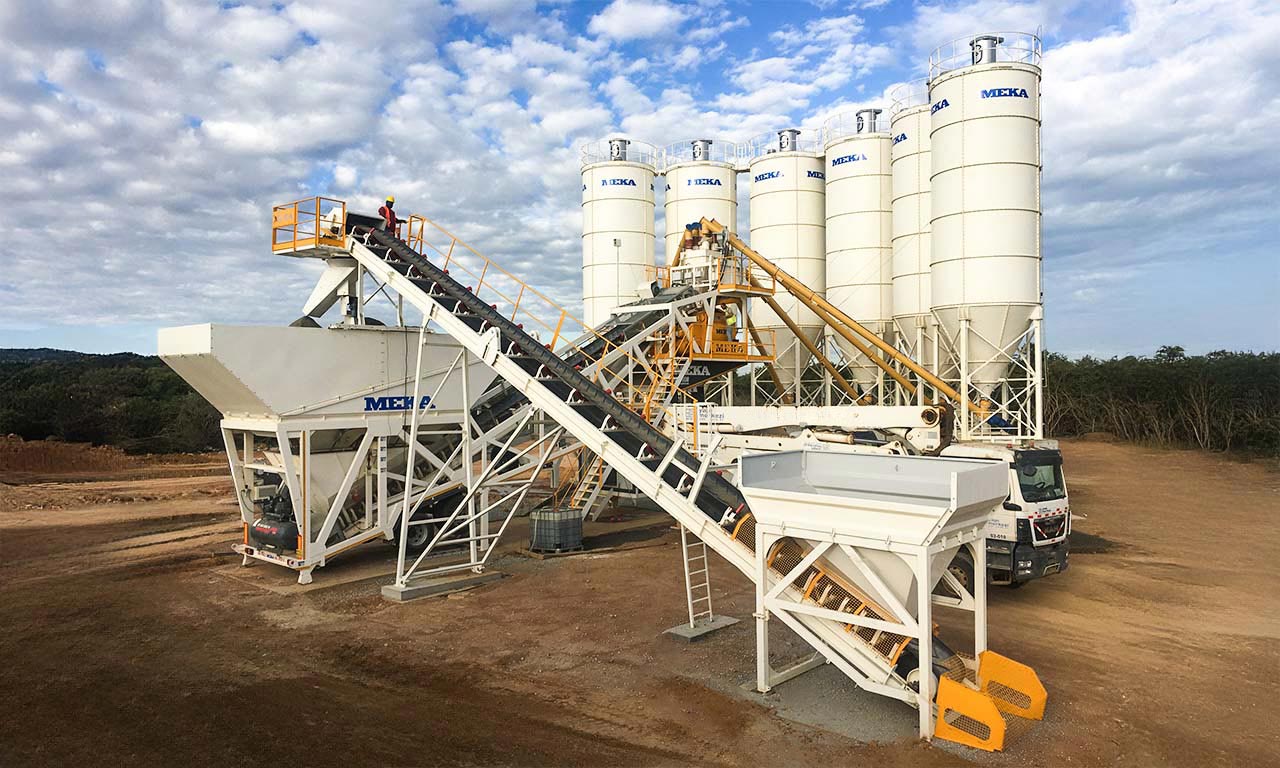

Mobile Plant
Rapid Setup. Maximum Mobility.
MEKA mobile concrete batching plants are mounted on a towable chassis for mobility, fast installation and reliable production on temporary or project-based sites.
AVAILABLE PLANT CAPACITIES
From compact installations for smaller production requirements to high-output batching plants for major infrastructure projects, MEKA offers a complete range of capacities to suit every operation.
Compare MEKA Plant Specifications
Compare stationary, compact, mobile and dry batch MEKA concrete plant models by production capacity, batching configuration and core technical features.
| Specification | K60 | K90 | K120 | K135 | K145 | K160 | K200 |
|---|---|---|---|---|---|---|---|
| Production Capacity | 60 m³/h | 75 m³/h | 100–110 m³/h | 112–126 m³/h | 130–147 m³/h | 160 m³/h | 200 m³/h |
| Mixer Capacity | 1.0 m³ | 1.5 m³ | 2.25 m³ | 3.0 m³ | 3.33 m³ | 4.0 m³ | 5.0 m³ |
| Primary Mixer Type | Single / Twin Shaft | Twin Shaft | Twin Shaft | Twin Shaft | Twin Shaft | Twin Shaft | Twin Shaft |
| Aggregate Transfer | Belt | ||||||
| Plant Automation | Available | ||||||
| Plant Type | Stationary Concrete Batching Plant | ||||||
| Specification | C30 | C60S | C60B | C90B | C120B | C135B |
|---|---|---|---|---|---|---|
| Production Capacity | 30 m³/h | 60 m³/h | 60 m³/h | 75 m³/h | 100 m³/h | 120 m³/h |
| Mixer Capacity | 0.5 m³ | 1.0 m³ | 1.0 m³ | 1.5 m³ | 2.25 m³ | 3.0 m³ |
| Primary Mixer Type | Pan / Single Shaft / Planetary | Twin Shaft | Twin Shaft | Twin Shaft | Twin Shaft | Twin Shaft |
| Aggregate Transfer | Skip | Skip | Belt | Belt | Belt | Belt |
| Plant Automation | Available | |||||
| Plant Type | Compact Concrete Batching Plant | |||||
| Specification | M60 | M90 | M120 | M145 | M150 |
|---|---|---|---|---|---|
| Production Capacity | 60 m³/h | 75 m³/h | 100 m³/h | 120 m³/h | 135 m³/h |
| Mixer Capacity | 1.0 m³ | 1.5 m³ | 2.25 m³ | 3.33 m³ | 3.5 m³ |
| Primary Mixer Type | Twin Shaft / Planetary | Twin Shaft | Twin Shaft | Twin Shaft | Twin Shaft |
| Aggregate Transfer | Belt | ||||
| Plant Automation | Available | ||||
| Plant Type | Mobile Concrete Batching Plant | ||||
| Specification | D100 |
|---|---|
| Production Capacity | Up to 100 m³/h |
| Batching Capacity | Up to 9 m³ per transit mixer batch |
| Number of Aggregate Bins | 4 |
| Aggregate Storage Capacity | 100 m³ |
| Mixing Method | Materials are weighed and discharged directly into the transit mixer |
| Central Mixer | Not required |
| Aggregate Transfer | Belt conveyor |
| Plant Automation | Available |
| Plant Type | Dry Batch Concrete Batching Plant |
Technical Information Specification details are based on MEKA catalogue model examples. Final plant specifications, mixer options, aggregate feeding methods and equipment configurations may vary depending on the selected model and project requirements. Contact Armcon for full model-specific technical specification sheets.
Your UK Partner for MEKA Batching Plants
As MEKA’s official UK distributor, Armcon supports customers from initial enquiry through to plant specification, installation planning and long-term after-sales support.
Keeping Your Plant Performing
Official UK Distributor
Supplying MEKA concrete batching plants to the UK market with direct product knowledge and manufacturer-backed support.
Technical Guidance
Helping customers choose the right plant capacity, configuration and specification for their production requirements.
Installation Support
Supporting customers with site planning, installation preparation and getting the correct batching plant in place.
Genuine Parts
Access to genuine replacement parts and components to help keep your plant operating reliably.
After-Sales Support
Ongoing assistance beyond delivery to help customers get long-term value from their batching plant investment.
